This Erich Jaeger wiring harness hooks your Ford Ranger Next Gen or VW Amarok from 2022 onwards straight to a tow bar socket so trailer lights match the ute every time. The kit runs a dedicated loom of around 1.5 m to the rear bar so wiring stays tucked up out of the dirt on gravel roads. The control module handles standard 12 V trailer circuits so you can tow campers or work trailers without extra splicing.

The harness uses factory-style plugs matched to these utes so each connector locks into place on the rear loom within about 300 mm of the tail lights. The solid module housing sits roughly 80 mm square so it can mount behind trim without rattles over corrugations. Wire insulation thickness of about 2 mm suits heat and dust on long drives in 40 °C conditions. It is smart buy gear for anyone setting up standard 12 pin or 7 pin style towing sockets.

• Direct-fit wiring harness for Ford Ranger Next Gen 06/2022–12/2024
• Suits VW Amarok models built from 11/2022 onwards
• Integrates tow bar socket with factory trailer lighting circuits
• Vehicle specific connectors remove need for wire cutting

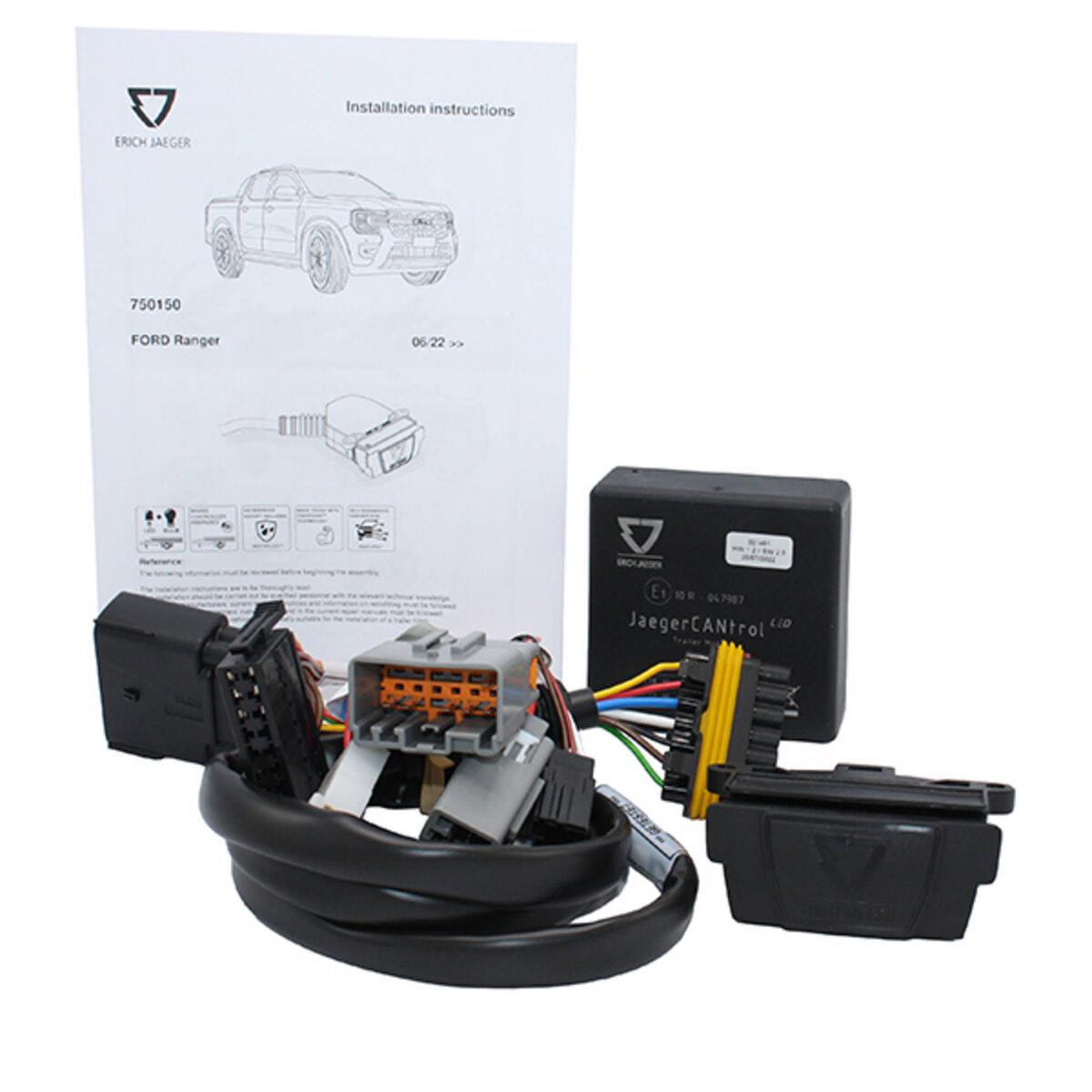

• Includes JaegerCANtrol electronic control module
• Supplied with printed installation instructions sheet
• Suitable for 12 V trailer lighting applications
• Solid plastic module housing suited to ute rear cavities
• Harness length sized to reach standard tow bar socket position
• Ideal for work and touring setups needing reliable trailer lights

Q: Does this harness replace the need to cut or solder wires in the rear loom?

Yes, this harness uses vehicle specific connectors. The plugs mate directly with the factory rear wiring on the Ford Ranger Next Gen and VW Amarok from the 2022 build dates covered. That means you do not need to strip or solder any factory wires. It keeps the installation neater and helps maintain the integrity of the original loom.

Q: Is this harness suitable for both work trailers and camper trailers?

Yes, it is suitable for standard 12 V lighting circuits on both types. The kit is intended for typical trailer loads such as tail lamps, brake lamps, and indicator circuits. As long as the trailer lighting stays within normal current limits it will operate correctly. Many users run the same setup for weekday work trailers and weekend camping rigs.

Q: Are printed installation instructions included in the kit?

Yes, the kit includes a printed instruction sheet. The sheet outlines connector locations on the vehicle and the routing path to the tow bar socket point. Diagrams show the plug styles and approximate mounting area for the control module. This helps a workshop or experienced DIY user follow the correct sequence during fitment.

Q: Which build years of Ford Ranger Next Gen will this harness fit?

This harness fits Ford Ranger Next Gen models built from June 2022 to December 2024. The connectors and pin layout match the wiring used in that production window. Using it outside that range can lead to plug mismatch or incorrect functions. Always confirm the build date on the compliance plate before ordering the kit.

Direct-fit wiring harness for Ford Ranger Next Gen models built from June 2022 to December 2024 and VW Amarok models built from November 2022 onwards. Harness uses vehicle-specific connectors for integration with factory wiring. Fitment is intended for vehicles equipped with a tow bar and trailer socket mount. Installation instructions are supplied in printed form with the kit.
