Description
Enerdrive ePower 2000W 12V Inverter Overview
The Enerdrive ePower 2000W Inverter (EN1120S-X) converts 12V DC battery power into 230V AC true sine wave output (<3% THD) for caravans, camper trailers, 4WDs, and boats. The integrated 16A AC transfer switch handles changeover between mains, generator, and inverter sources in under 30 ms. A built-in RCD safety switch with test button cuts power within milliseconds if a fault is detected.
The unit weighs 5.9 kg and measures 435 x 230 x 115 mm. Operating temperature range is 0°C to 40°C. A removable LED remote control panel and front-mounted USB port (5V, 2.1A) are included. Complies with all required Australian Standards and CE certifications (RCM, CE). Backed by a 5-year warranty.
Key Features
- 2000W true sine wave output, safe for sensitive electronics
- 16A AC transfer switch with <30 ms changeover
- Built-in RCD safety switch with test button
- Removable LED remote control panel
- USB port (5V, 2.1A) for device charging
- Compact design at 5.9 kg
- Australian Standards and CE compliant
Estimated Run Times by Battery Bank Size (12V)
| AC Load | 60Ah | 120Ah | 180Ah | 240Ah | 300Ah |
|---|---|---|---|---|---|
| 50W | 11 hrs | 22 hrs | 33 hrs | 44 hrs | 55 hrs |
| 100W | 5 hrs | 11.5 hrs | 17 hrs | 23 hrs | 29 hrs |
| 200W | 2.5 hrs | 5 hrs | 8 hrs | 11 hrs | 13.5 hrs |
| 500W | 49 mins | 2 hrs | 3 hrs | 4 hrs | 5 hrs |
| 1000W | 15 mins | 49 mins | 1.5 hrs | 2 hrs | 2.5 hrs |
| 1500W | 8 mins | 27 mins | 49 mins | 1 hr | 1.5 hrs |
| 2000W | N.R. | 15 mins | 34 mins | 49 mins | 1 hr |
Specifications
| Model | EN1120S-X |
| AC Output Power | 2000W |
| AC Output Current | 8.7A |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | Sinewave (<3% THD) |
| Nominal DC Input Voltage | 12.5 VDC |
| No Load Battery Draw | <1.5 ADC |
| DC Input Voltage Operating Range | 10.5 – 15.5 VDC |
| Under Voltage Alarm | 11.0 / 12.1 VDC |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC |
| Over Voltage Shutdown | 15.5 VDC |
| USB Port | 5V, 2.1A |
AC Transfer Switch Specifications
| Transfer Time | <30 ms |
| Transfer Relay Rating | 16A (resistive load) |
| AC Input Socket (IEC-C20) | 16A max |
| AC Output Socket (IEC-C19) | 16A max |
| AC Output Front GPO | 10A max |
Safety and Environmental
| Conformance | All required Australian Standards, CE LVD: EN/IEC 62040-1, IEC61558-2-16 |
| EMI / EMC | CE EMC: EN/IEC 62040-2 category C1 |
| Agency Markings | RCM, CE |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5–90% non-condensing |
| Operating Altitude | Up to 3000 m above sea level |
Weights and Dimensions
| Weight | 5.9 kg |
| Dimensions (W x L x H) | 435 x 230 x 115 mm |
| Warranty | 5 Years |
Enerdrive Inverter Comparison: 2000W 12V vs 2000W 24V vs 2600W 12V
| Specification | 2000W 12V (EN1120S-X) | 2000W 24V (EN1120S-X-24V) | 2600W 12V (EN1226S-X) |
|---|---|---|---|
| AC Output Power | 2000W | 2000W | 2600W |
| AC Output Current | 8.7A | 8.7A | 11.3A |
| AC Output Voltage | 230 Vac / 50 Hz | 230 Vac / 50 Hz | 230 Vac / 50 Hz |
| AC Output Waveform | Sinewave (<3% THD) | Sinewave (<3% THD) | Sinewave (<3% THD) |
| Nominal DC Input Voltage | 12.5 VDC | 24.5 VDC | 12.5 VDC |
| No Load Battery Draw | <1.5 ADC | <1.5 ADC | <1.5 ADC |
| DC Input Voltage Range | 10.5 – 15.5 VDC | 21.0 – 31.0 VDC | 10.5 – 15.5 VDC |
| Under Voltage Alarm | 11.0 / 12.1 VDC | 22.0 / 24.2 VDC | 11.0 / 12.1 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC | 21.0 / 23.6 VDC | 10.5 / 11.8 VDC |
| Over Voltage Shutdown | 15.5 VDC | 31.0 VDC | 15.5 VDC |
| USB Port | 5V, 2.1A | 5V, 2.1A | 5V, 2.1A |
| Transfer Time | <30 ms | <30 ms | <30 ms |
| Transfer Relay Rating | 16A (resistive load) | 16A (resistive load) | 16A (resistive load) |
| Weight | 5.9 kg | 5.9 kg | 7.0 kg |
| Dimensions (W x L x H) | 435 x 230 x 115 mm | 444 x 230 x 115 mm | 560 x 230 x 115 mm |
| Warranty | 5 Years | 5 Years | 5 Years |
Features
- 2000W sine wave gear for real loads
- 16A transfer switch keeps boards live
- RCD and 10A GPO keep mains tidy
- USB outlet handles phones and tablets
- Compact 5.9kg unit for tight spaces
- Five-year warranty from a trusted brand
Specifications
- Model: EN1120S-X
- Inverter type: True sine wave
- Continuous AC output power: 2000W
- AC output current: 8.7A
- AC output voltage: 230 Vac / 50 Hz
- AC output waveform: Sinewave (<3% THD)
- Nominal DC input voltage: 12.5 VDC
- DC input operating voltage range: 10.5 – 15.5 VDC
- No load battery draw: < 1.5 ADC
- Under voltage alarm: 11.0 / 12.1 VDC
- Under voltage alarm recovery: 11.3 / 12.3 VDC
- Under voltage shutdown: 10.5 / 11.8 VDC
- Under voltage shutdown recovery: 12.0 / 12.6 VDC
- Over voltage shutdown: 15.5 VDC
- Integrated AC transfer switch: Yes
- Transfer time: < 30 ms
- Transfer relay rating: 16A (resistive load)
- AC input socket: IEC-C20, 16A max
- AC output socket: IEC-C19, 16A max
- AC output front GPO: 10A max
- USB port output: 5V, 2.1A
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 60°C
- Relative humidity: 5–90% non-condensing
- Operating altitude: Up to 3000 m above sea level
- Weight: 5.9 kg
- Dimensions (W x L x H): 444 x 230 x 115 mm
- Conformance: All required Australian Standards, CE LVD EN/IEC 62040-1, IEC61558-2-16
- EMI/EMC: CE EMC EN/IEC 62040-2 category C1
- Agency markings: RCM, CE
- Warranty: 5 years

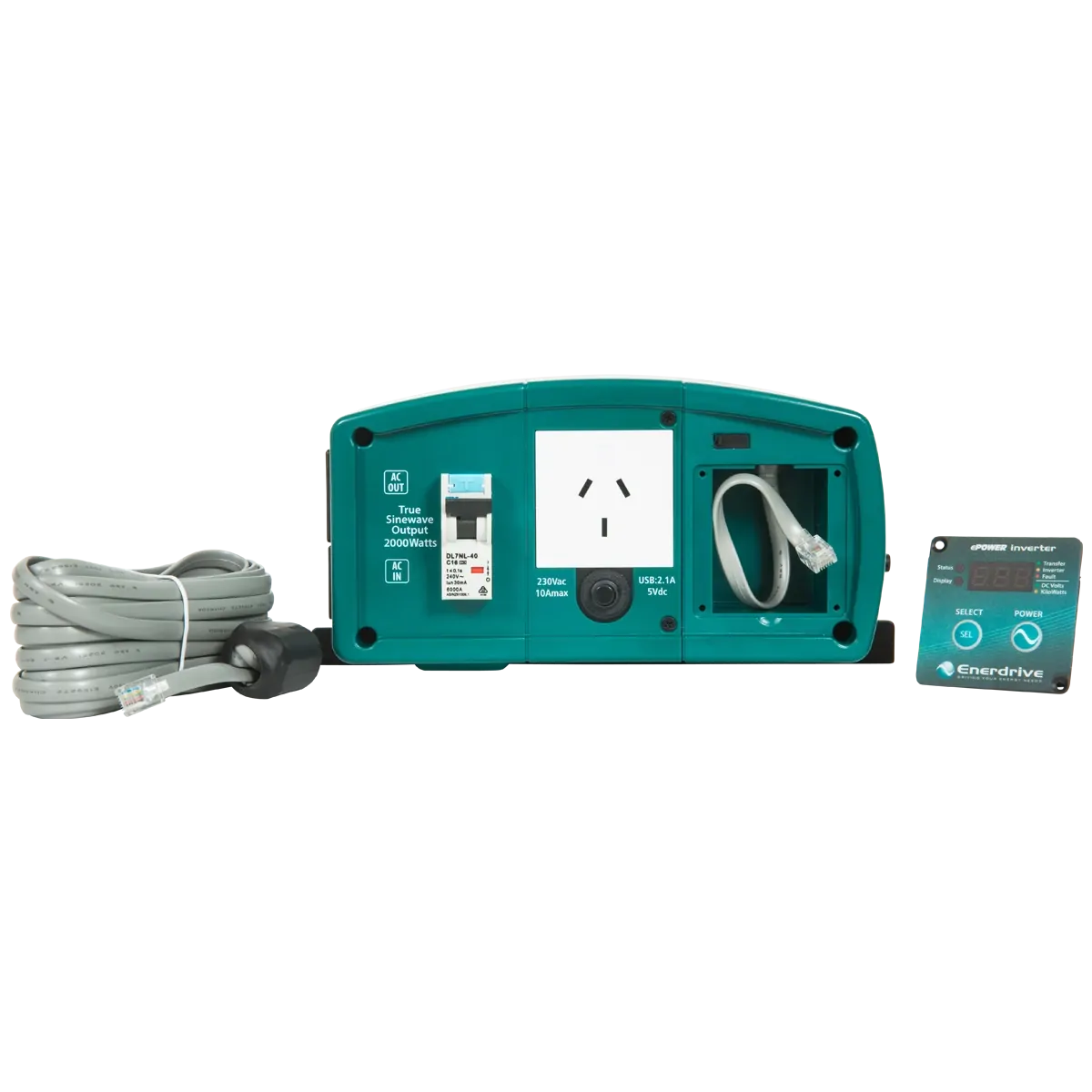

- Enerdrive ePOWER 2000W 12V inverter with integrated RCD and AC transfer switch
- Removable LED remote control display panel
- Remote panel connection cable (length not specified)
| SKU | EN1120S-X |
|---|---|
| Barcode # | 9342616000298 |
| Brand | Enerdrive |
| Shipping Weight | 7.9000kg |
| Assembled Length | 0.440m |
| Assembled Height | 0.120m |
| Assembled Width | 0.230m |
