Description
Specifications
| Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Circuit Breaker Type | Single Pole Thermally Responsive Bi-metal Blade |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temp | -32° C |
| Maximum Operating Temp | 82° C |
| Ignition Protected | Meets SAE J553, J1625, J1171, UL1550 |
| Splash & Dust Proof | IP67 |
| UL Rating | Housing is Thermal Plastic UL Rated, 94V0 |
| Terminal Stud | 25-70A - M6 (accepts 1/4″ ring Terminal) 80-200A - M10 (accepts 3/8″ ring Terminal) |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Weight | 0.23 kg |
Note: Specifications subject to change without notice.
Features
- 50A rating for common accessory loads
- Resettable breaker cuts down on spare fuses
- IP67 and UL 94V0 rated housing
- Works from -32°C to 82°C easily
- M6 studs with 5.65 Nm torque spec
- Light 0.23 kg unit for panel mounting
Specifications
- Maximum voltage: 48V DC
- Circuit breaker class: Type III – switchable/manual reset – trip free
- Circuit breaker type: Single pole thermally responsive bi-metal blade
- Interrupt capacity: 3000A @ 48V
- Minimum operating temperature: -32° C
- Maximum operating temperature: 82° C
- Ignition protected: Meets SAE J553, J1625, J1171, UL1550
- Splash and dust proof rating: IP67
- Housing material rating: Thermal plastic UL 94V0
- Terminal stud size (for 25–70A models): M6 accepting 1/4″ ring terminal
- Terminal stud torque: 50 in-lb (5.65 Nm)
- Weight: 0.23 kg
- Model current rating: 50A
- Mount style: Surface mount
- Stud size type: 5/16"
| SKU | EN-RCB50 |
|---|---|
| Barcode # | OEBC527633 |
| Brand | Enerdrive |
| Shipping Weight | 0.4500kg |

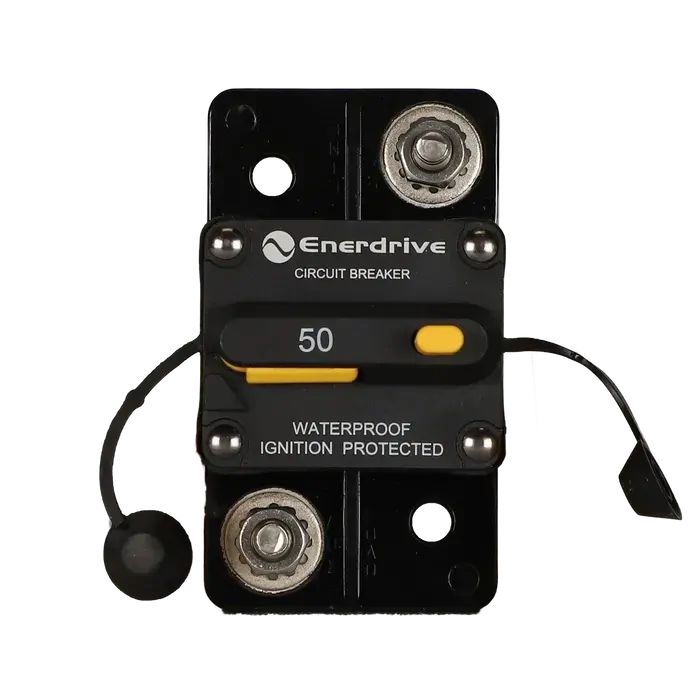

Enerdrive 285-Series Circuit Breakers Surface Mount 5/16 Stud 50A
SKU: EN-RCB50
Sale price
REG $52.00
SALE ENDS
Dispatch in 7 days
More infoMake 4 payments of $11.88 over 8 weeks and get it now!
