Description
Specifications
| Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Circuit Breaker Type | Single Pole Thermally Responsive Bi-metal Blade |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temp | -32° C |
| Maximum Operating Temp | 82° C |
| Ignition Protected | Meets SAE J553, J1625, J1171, UL1550 |
| Splash & Dust Proof | IP67 |
| UL Rating | Housing is Thermal Plastic UL Rated, 94V0 |
| Terminal Stud | 25-70A - M6 (accepts 1/4″ ring Terminal) 80-200A - M10 (accepts 3/8″ ring Terminal) |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Weight | 0.23 kg |
Note: Specifications subject to change without notice.
Features
- 200A current rating for big loads
- 48V DC max for common systems
- Trip-free manual reset for reliability
- IP67 housing handles dust and spray
- Ignition protected to key SAE standards
- Lightweight 0.23 kg surface mount gear
Specifications
- Maximum voltage: 48V DC
- Current rating: 200A
- Circuit breaker class: Type III – switchable/manual reset – trip free
- Circuit breaker type: Single pole thermally responsive bi-metal blade
- Interrupt capacity: 3000A @ 48V DC
- Minimum operating temperature: -32° C
- Maximum operating temperature: 82° C
- Ignition protected: Meets SAE J553, J1625, J1171, UL1550
- Splash and dust protection rating: IP67
- Housing material: Thermal plastic UL rated 94V0
- Terminal stud size: M10 (accepts 3/8" ring terminal) for 80–200A
- Terminal stud torque: 50 in-lb (5.65 Nm)
- Weight: 0.23 kg
- 1 x Enerdrive 285-Series surface mount parallel circuit breaker 200A with 3/8" terminal studs
| SKU | EN-RCB200S |
|---|---|
| Barcode # | OEBC527629 |
| Brand | Enerdrive |
| Shipping Weight | 0.4500kg |

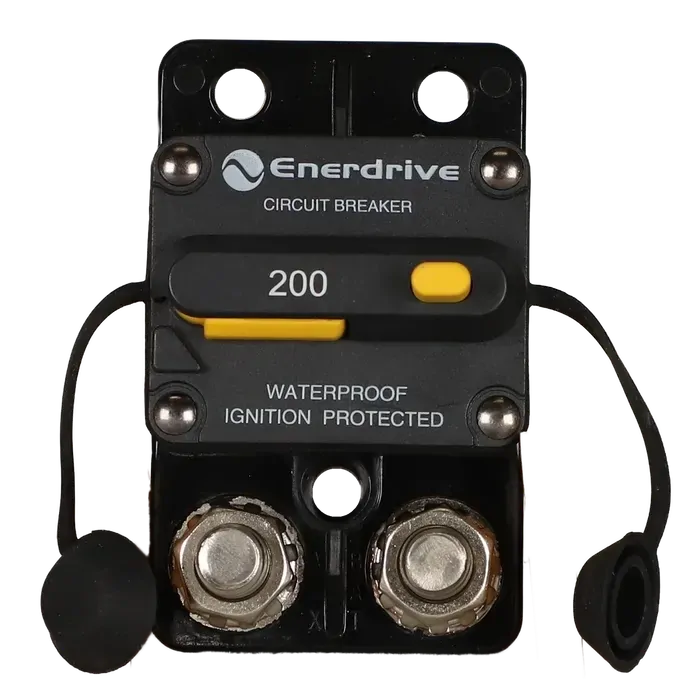

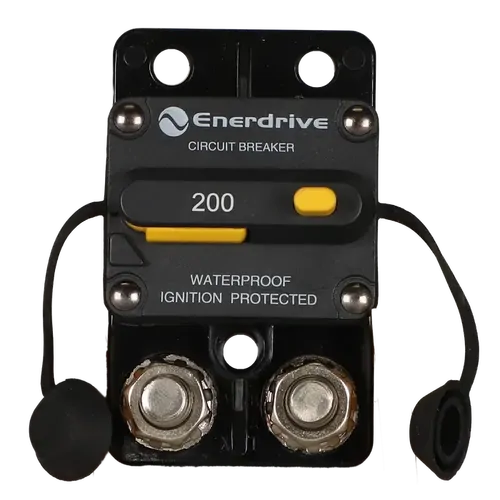

Enerdrive 285-Series Circuit Breaker Surface Mount Parallel 3/8 Stud 200A
SKU: EN-RCB200S
Sale price
REG $62.00
SALE ENDS
Dispatch in 7 days
