Description
LB380 Series
LB380 Series
Features / Specifications
|
Fitting InstructionsFix to level mounting surface with base and fittings supplied for bolt-mounted models. Technical Drawings
|
Features
- Compact 380mm bar for tight cabins
- 1W LEDs punch well above size
- 18 patterns to match site rules
- IP65 housing stands up to grime
- Wide 10–30V range for mixed fleets
- Five year warranty for long term use
Specifications

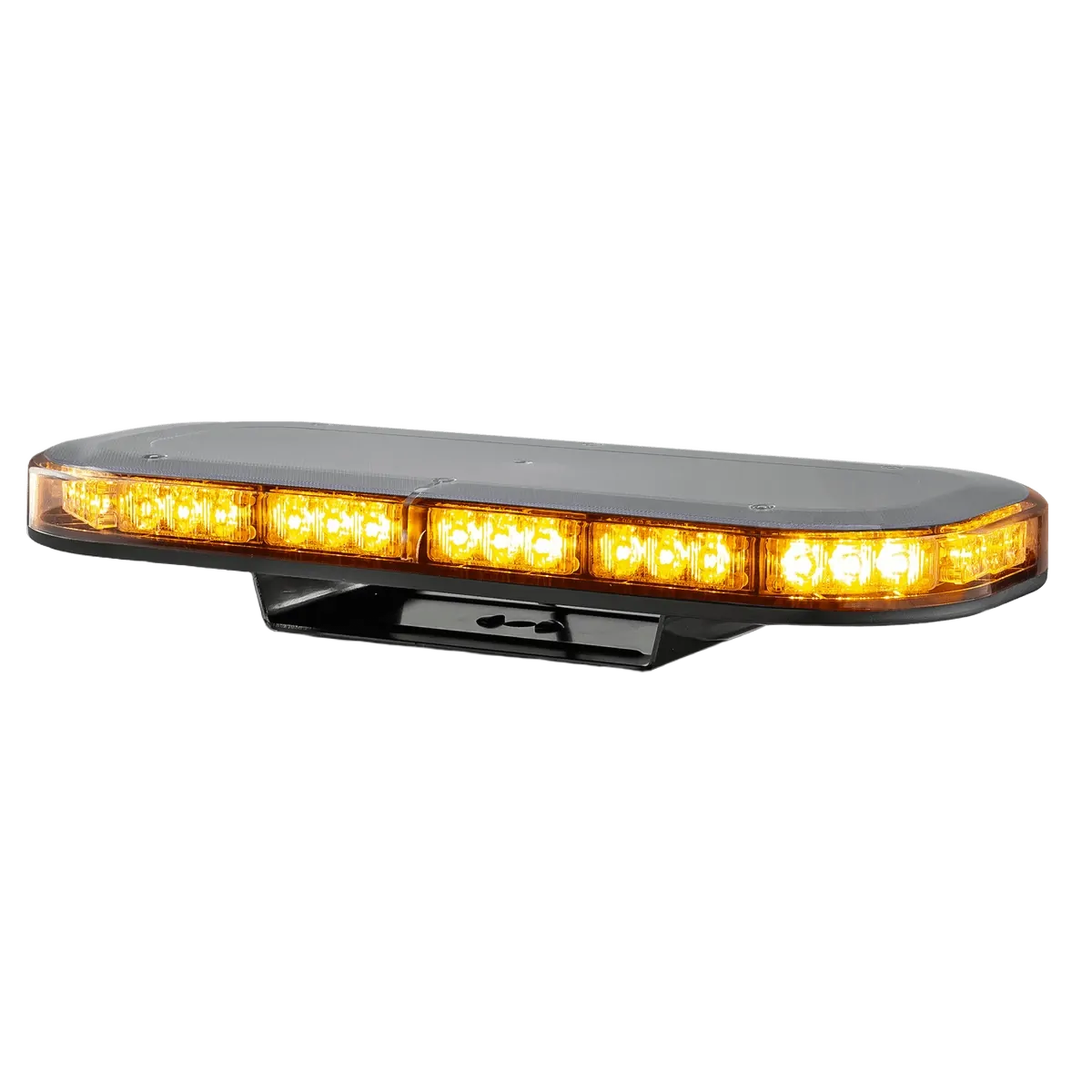

- Type: Heavy duty emergency minibar
- LED type: High brightness 1 Watt LEDs
- Flash patterns: 18 selectable patterns
- Compliance: SAE J845 Class 1
- Approvals: ECE R65 and ECE R10
- Ingress rating: IP65
- Voltage range: 10–30 Volt DC
- Operating temperature: -40°C to +60°C

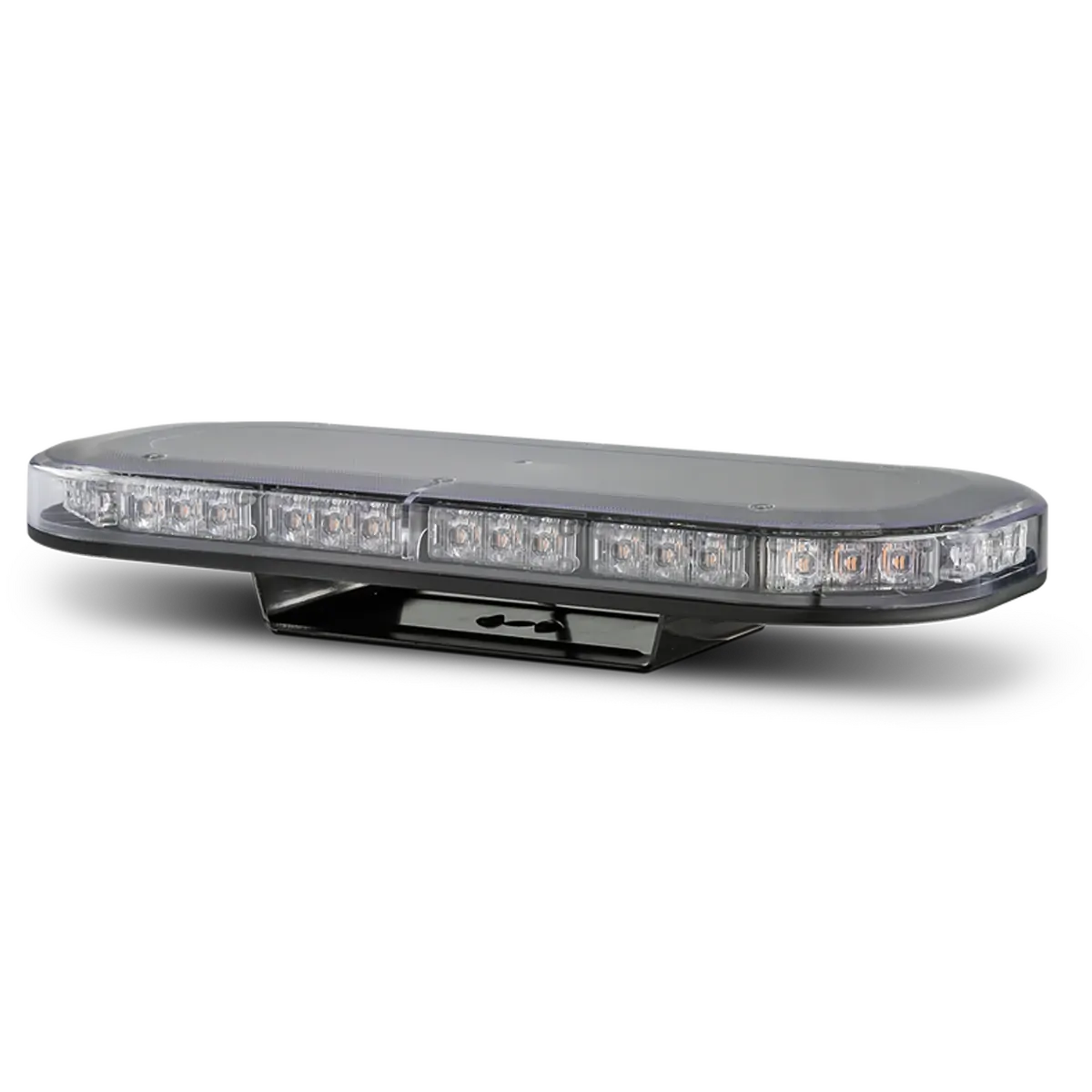

- Lens colour: Clear with amber LEDs

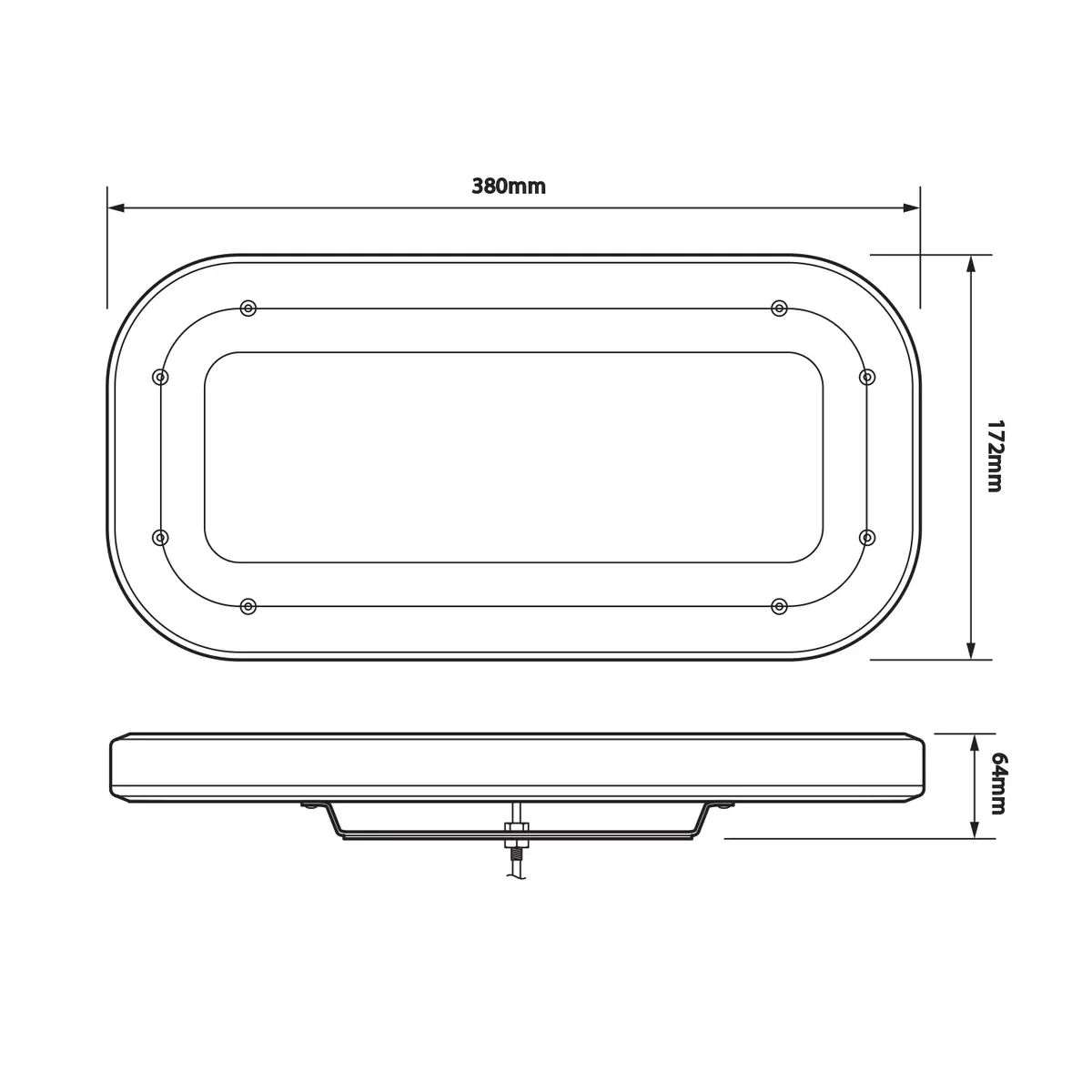

- Dimensions: 380mm length x 171/172mm width x 64mm height
- Mount type: Single bolt mount
- Warranty: 5 year manufacturer warranty
- 1 x LED Autolamps LB380ACM emergency LED minibar
- Single bolt mount base and fittings
- Retail packaging box
| SKU | LB380ACM |
|---|---|
| Barcode # | 9335962027583 |
| Brand | LED Autolamps |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.214m |
| Shipping Height | 0.075m |
| Shipping Length | 0.543m |
Dispatch in 1-2 weeks
More infoMake 4 payments of $87.50 over 8 weeks and get it now!
Amber Emergency Mini Light Bar, Clear Lens With Amber Leds, 18 Selectable Flash Patterns, 12-24 Volts, 380Mm X 171Mm X 64Mm, Single Bolt Mount, Box, 5 Year Warranty
