The CP2-VX73 radio replacement interface is designed for installation of an aftermarket radio while retaining the factory steering wheel control functions as well as offering standardized ISO connections for plug and play installation. Built on the quality PAC Audio ControlPRO2 technology, the CP2 range of plug and play installation harnesses makes installation a breeze.
Need more outputs?
Check out the Autoleads ControlPRO2 Multimedia (CP2-MM) add-on module. The CP2-MM (Available Separately) offers expandability to the Autoleads ControlPRO2 interfaces for data vehicles by expanding the trigger outputs from the vehicles data network.
- Park Brake Output (if on vehicle network)
- Reverse Trigger (if on vehicle network)
- Speed Pulse (if on vehicle network)
- Tach Signal (if on vehicle network)
- Illumination Output (if on vehicle network)
| Vehicle Plug Style | 44PIN GM Style 'ClickLok' Connector |
|---|---|
| Plug & Play | YES – FACTORY CONNECTOR TO STANDARD ISO CONNECTOR |
| Retain Factory Steering Wheel Audio Controls? | YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
| Retain vehicle OE clock & trip display? | NO – If OEM Radio Controlled This Feature |
| Dual Press Steering Wheel Control Function | YES – Customisable |
| Manual Programming Feature | YES – Via Dip Switch or Button Press |
- Holden CAN-Bus steering buttons stay active
- 44PIN ClickLok connector supports plug in fit
- ISO harness links cleanly to replacement head unit
- ControlPRO2 platform delivers stable CAN interface
- Optional CP2-MM module expands trigger outputs
- Interface type: radio replacement steering wheel control interface
- Vehicle connection: 44PIN GM style ClickLok connector
- Output connection: standard ISO connector
- Platform: PAC Audio ControlPRO2 technology
- Steering wheel control retention: yes with select aftermarket radios
- Steering wheel control dual-press function: yes, customisable
- Manual programming method: via DIP switch or button press
- Park brake output support: yes, if on vehicle network
- Reverse trigger output support: yes, if on vehicle network
- Speed pulse output support: yes, if on vehicle network
- Tach signal output support: yes, if on vehicle network
- Illumination output support: yes, if on vehicle network
- Plug and play: factory connector to standard ISO connector
- Vehicle OE clock and trip display retention: no, if OEM radio controls this feature
- Vehicle plug style: 44PIN GM style 'ClickLok' connector
- Plug & Play status: yes – factory connector to standard ISO connector
- Dual press steering wheel control function: yes – customisable
- Manual programming feature: yes – via DIP switch or button press

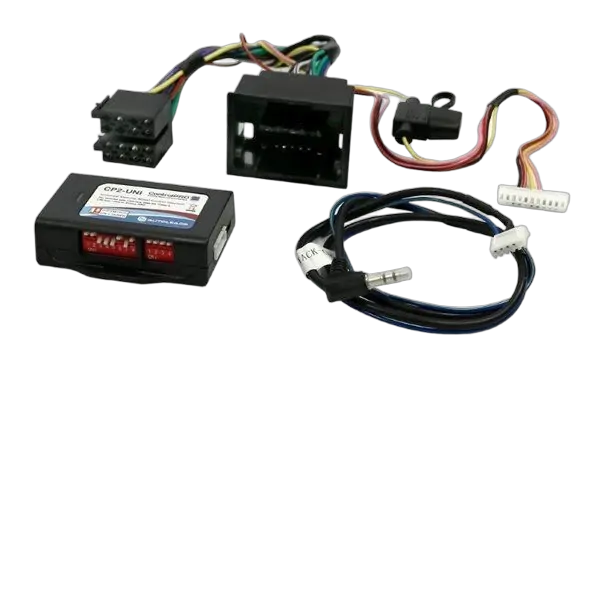

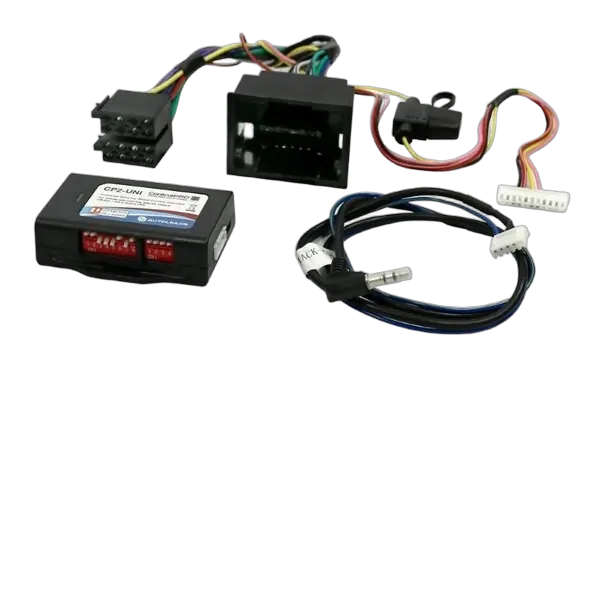

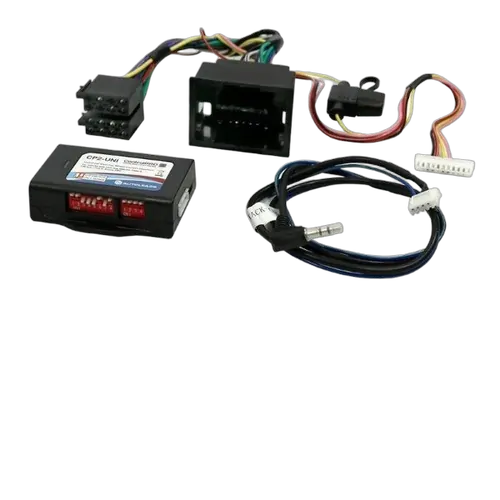

- 1 x Autoleads ControlPRO2 CP2-VX73 interface module
- 1 x 44PIN GM style ClickLok vehicle connector harness
- 1 x ISO connector harness
- 1 x 3.5 mm steering wheel control jack lead
- 1 x wiring loom with multi‑colour conductors
| SKU | CP2-VX73 |
|---|---|
| Barcode # | 322960647997 |
| Brand | Autoleads |
| Shipping Weight | 1.5000kg |
