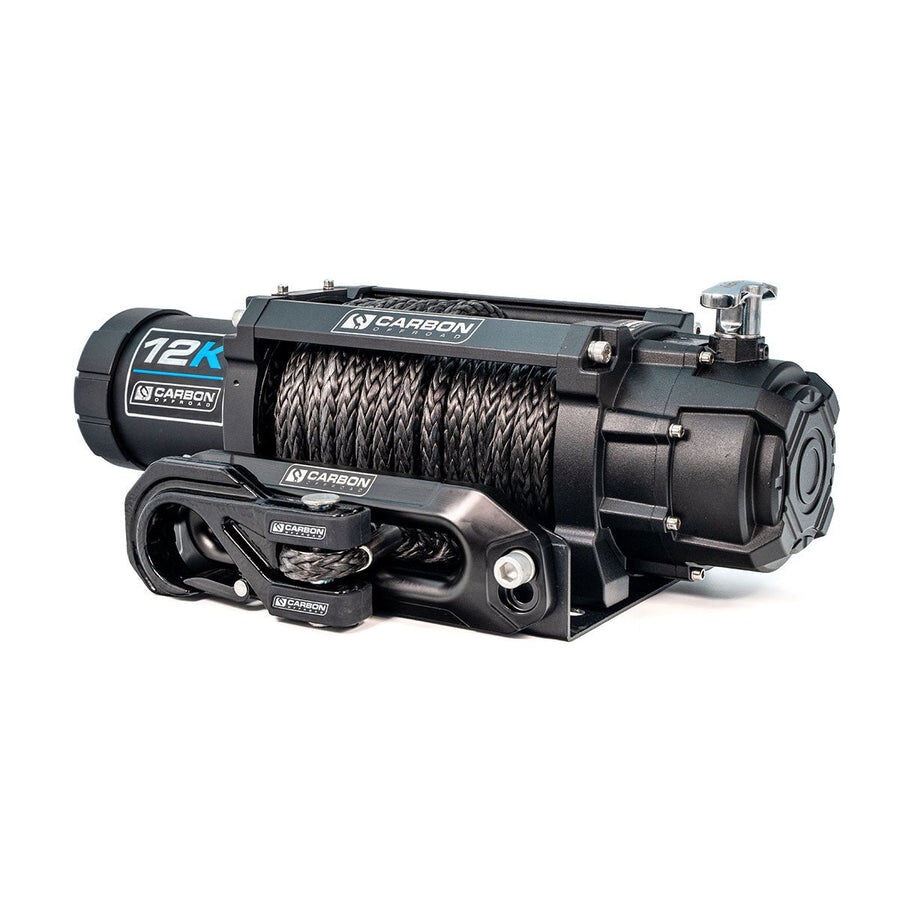

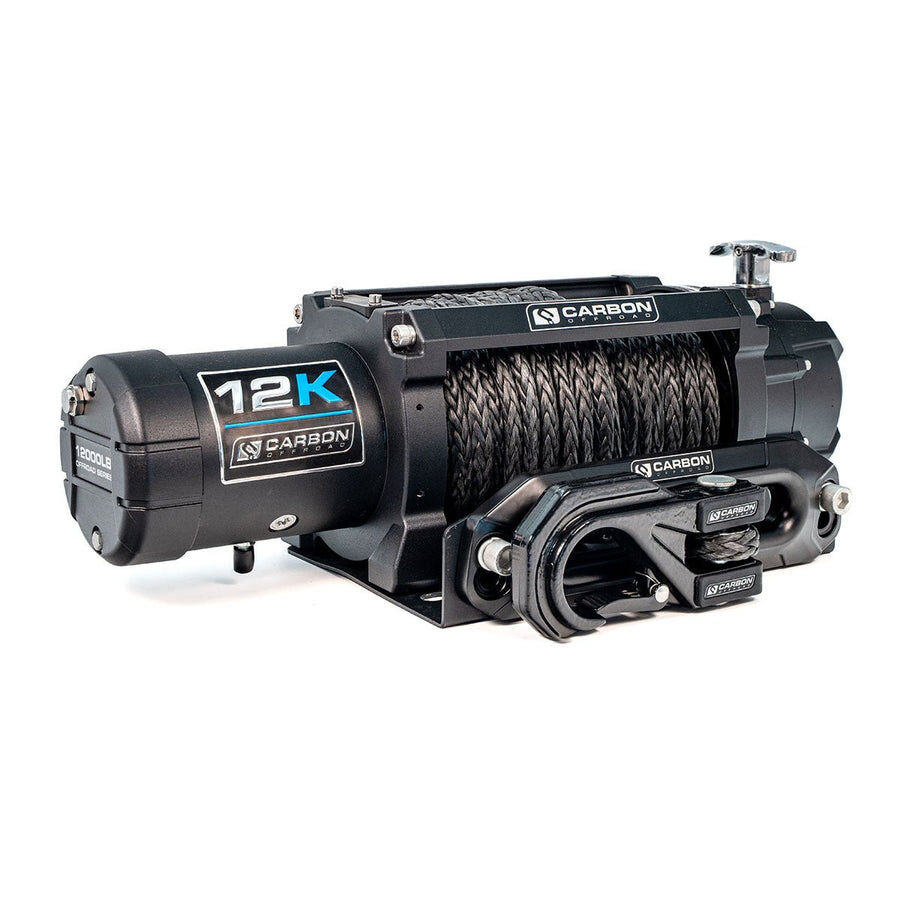

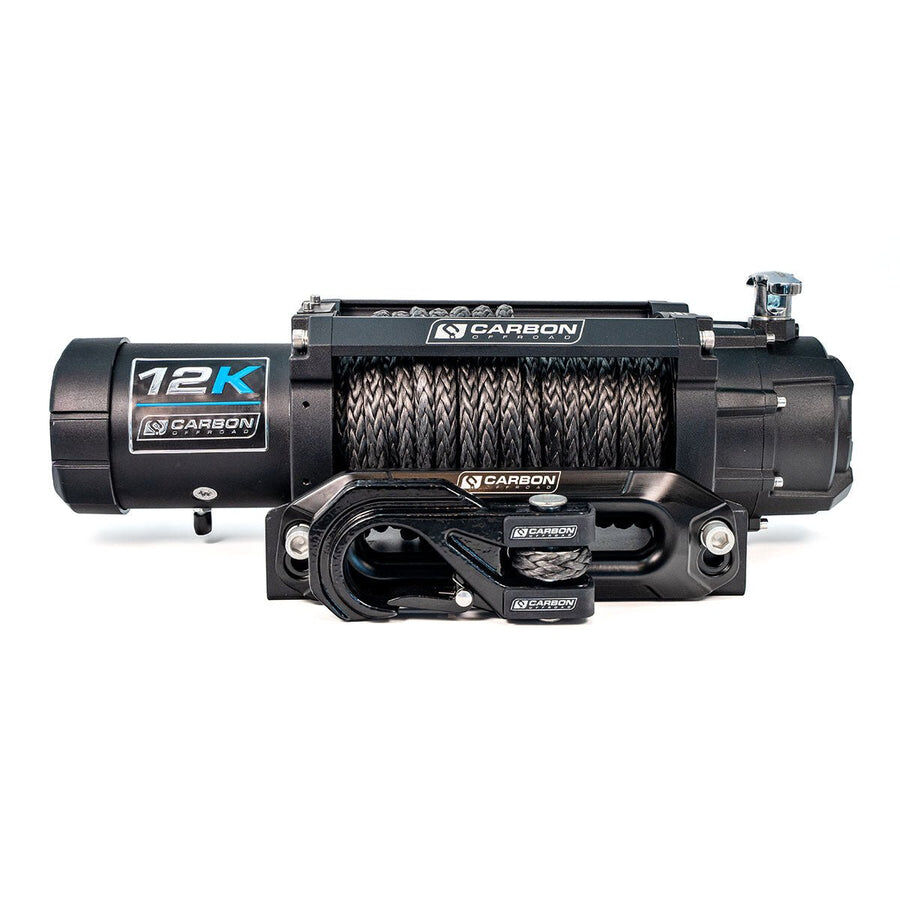

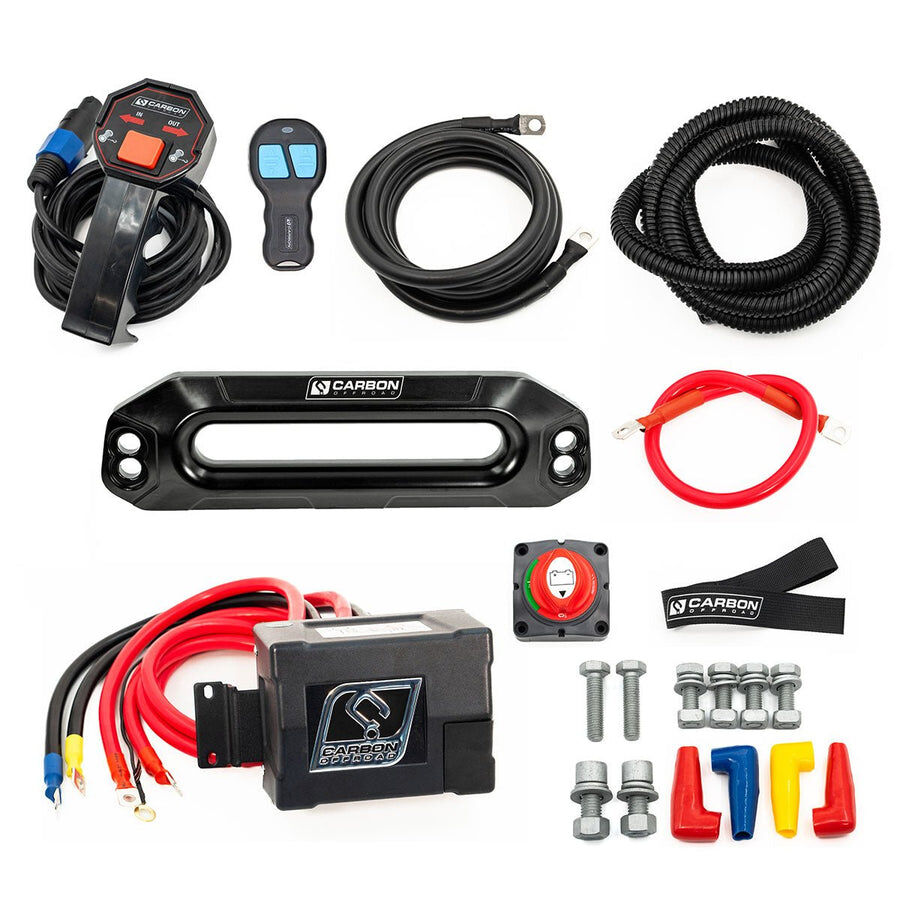

Carbon 12K Winch – Lightweight 19 kg, high-performance 12,000 lb winch with 6 HP motor, triple planetary gearbox, and IP68 waterproofing. Comes as a complete kit with synthetic rope, CNC alloy fairlead, wired and wireless remotes, and isolator switch. Built for tough Australian off-road conditions, backed by a lifetime geartrain and 5-year electrical/water ingress warranty.
Technical Features
- Part number: CW-12KV3X
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6HP series wound motor (24V option available)
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 218:1

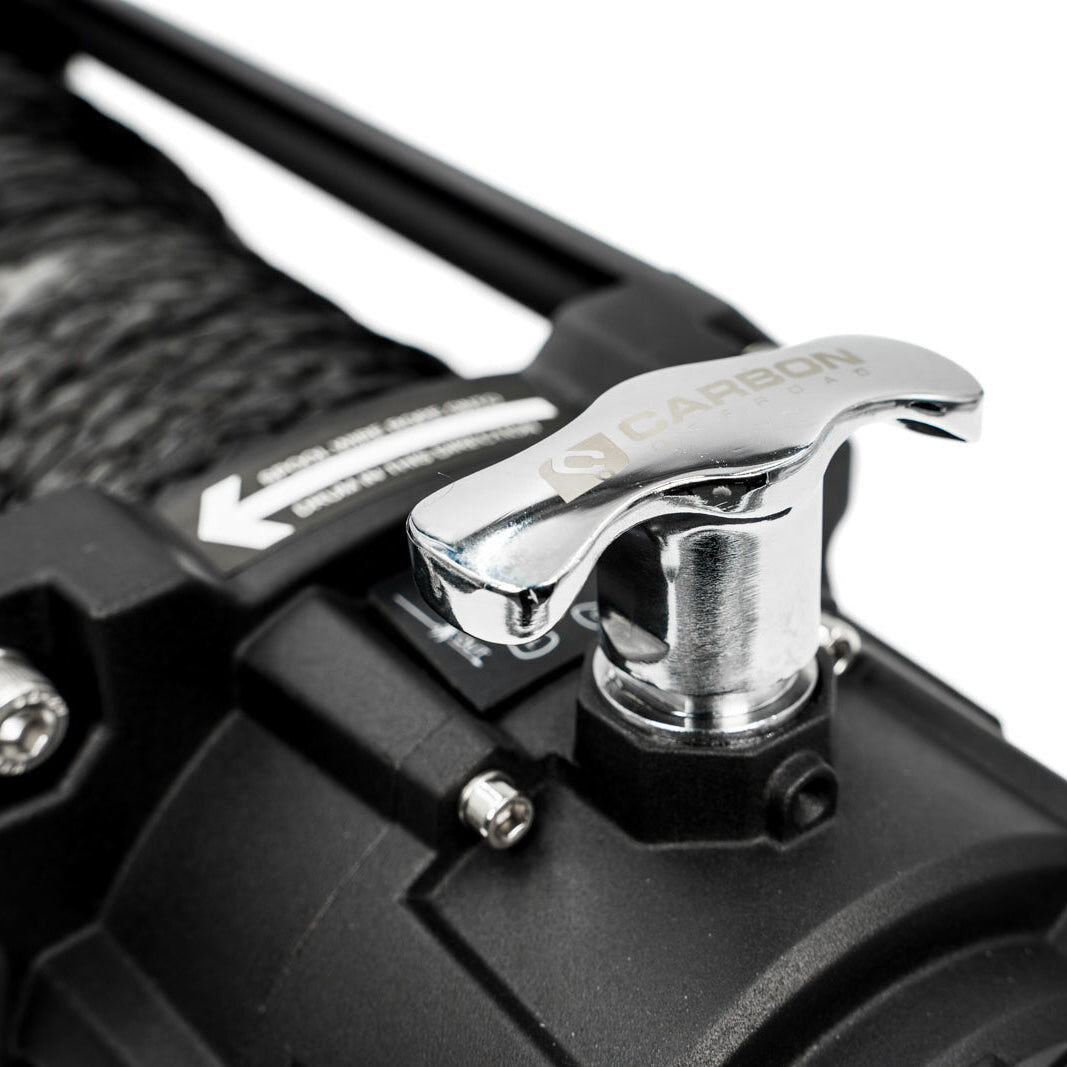

- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 63mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
- Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")
- Winch weight with synthetic rope attached: VERSION 3 - 19.7kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.65kg
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
Speed & Performance Breakdown
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 43.3 (13.2) | 70 | 1/12000 (5450) |
| 2000 (910) | 11.5 (3.5) | 130 | 2/9800 (4450) |
| 4000 (1810) | 9.2 (2.8) | 170 | 3/8300 (3770) |
| 6000 (2720) | 7.9 (2.4) | 220 | 4/7200 (3270) |
| 8000 (3630) | 6.9 (2.1) | 265 | 5/6400 (2900) |
| 10000 (4540) | 5.6 (1.7) | 320 | 6/5800 (2650) |
| 12000 (5450) | 4.6 (1.4) | 390 | 7/5300 (2420) |
Winch Dimensions
| SKU | CW-12KV3XBLK |
|---|---|
| Brand | Carbon Offroad |
| Shipping Weight | 21.2000kg |
| Shipping Width | 0.585m |
| Shipping Height | 0.215m |
| Shipping Length | 0.190m |

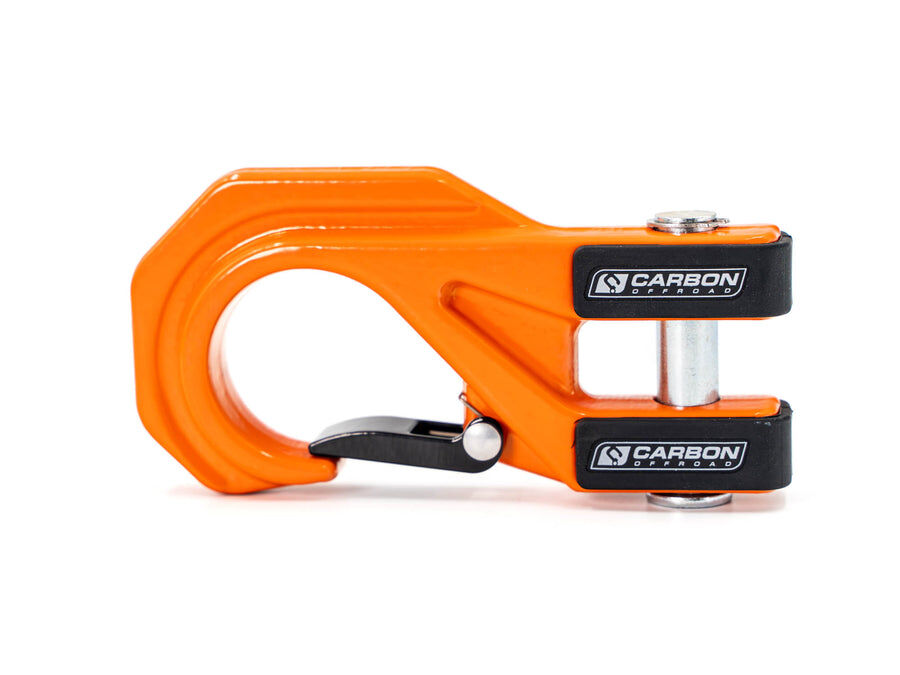

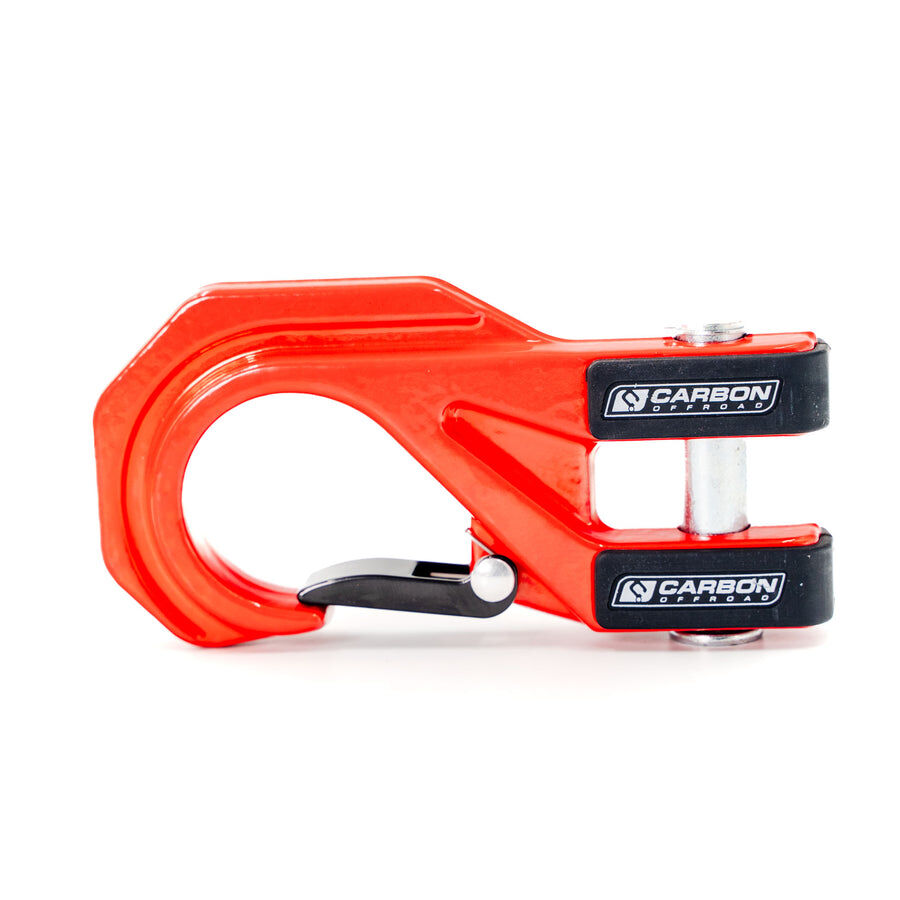

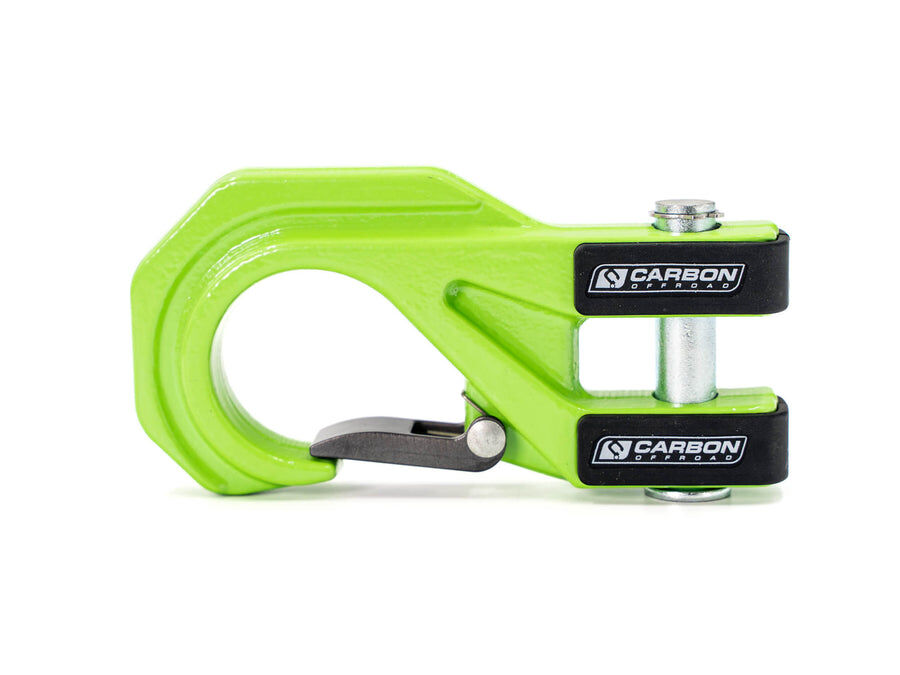

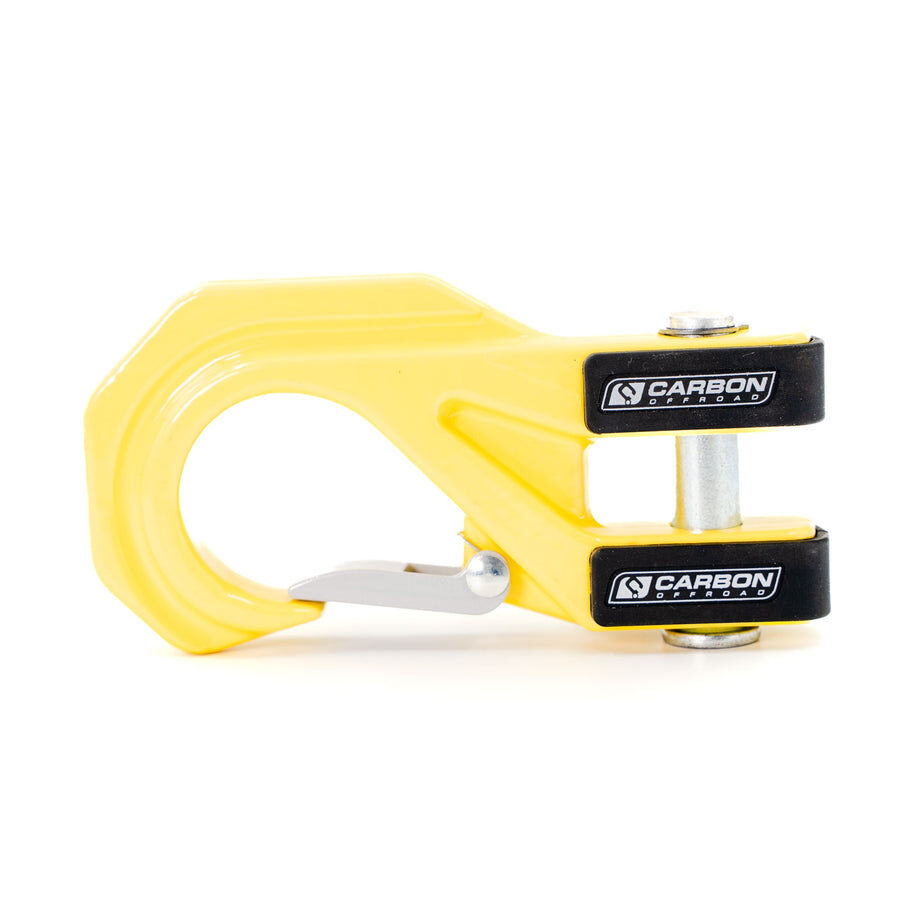

Carbon 12K - 12000lb Winch V3X with MegaPro Hook - Black
