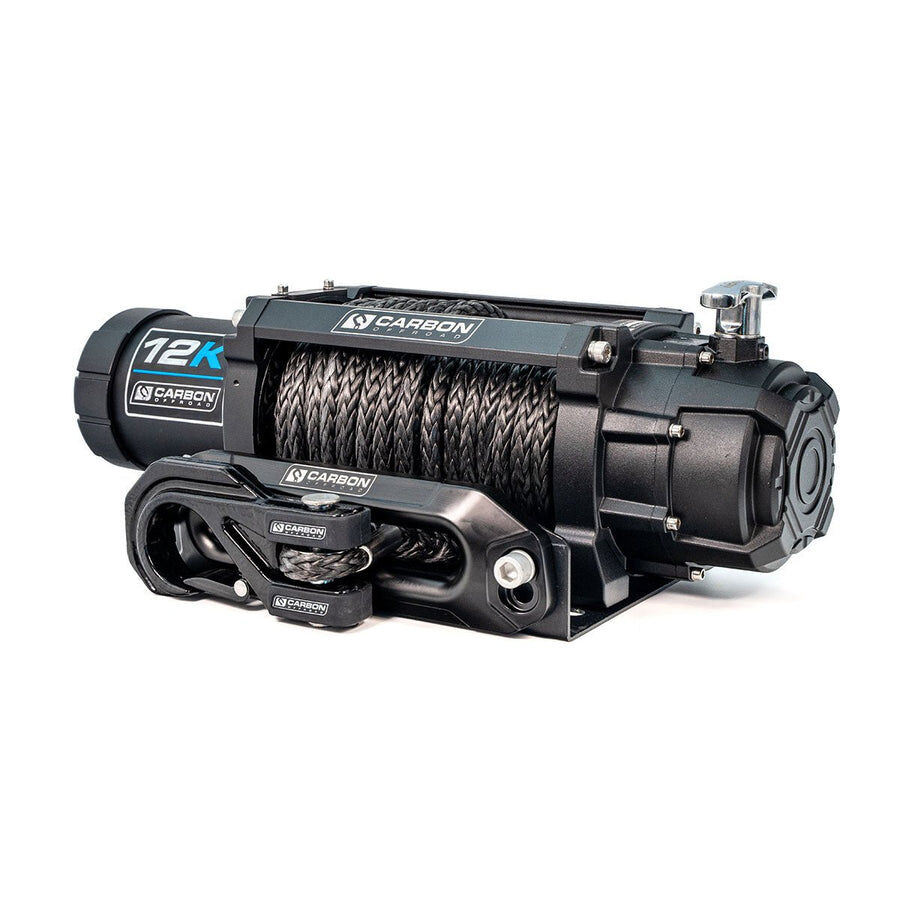

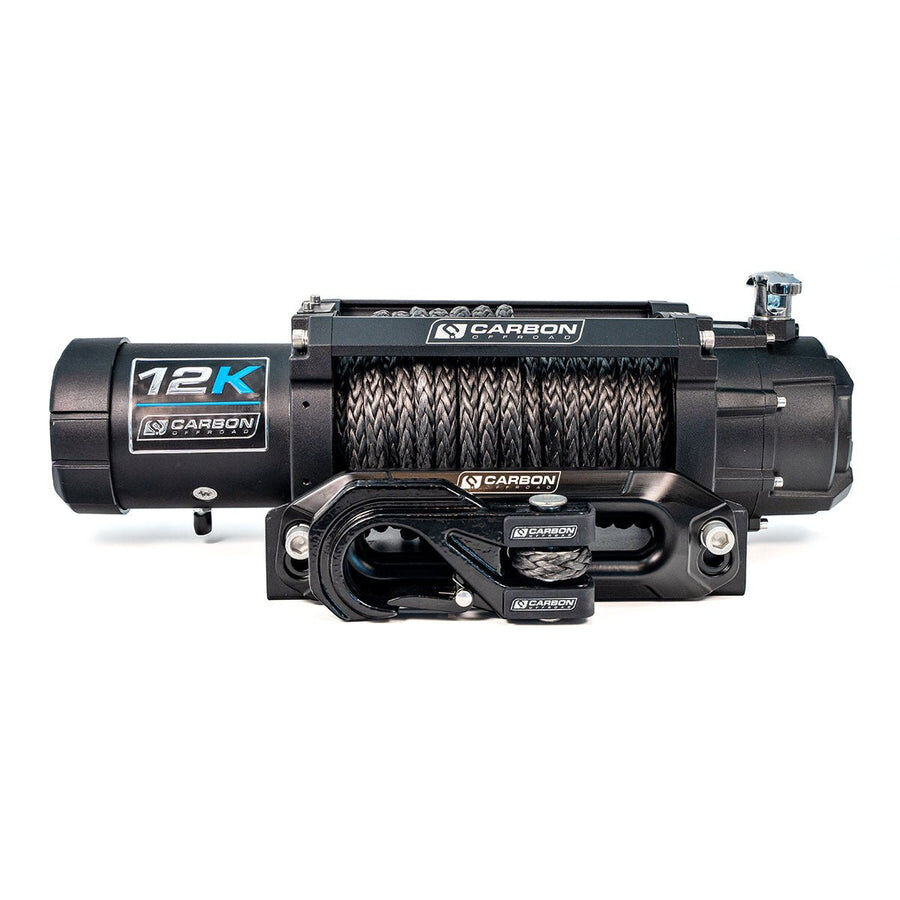

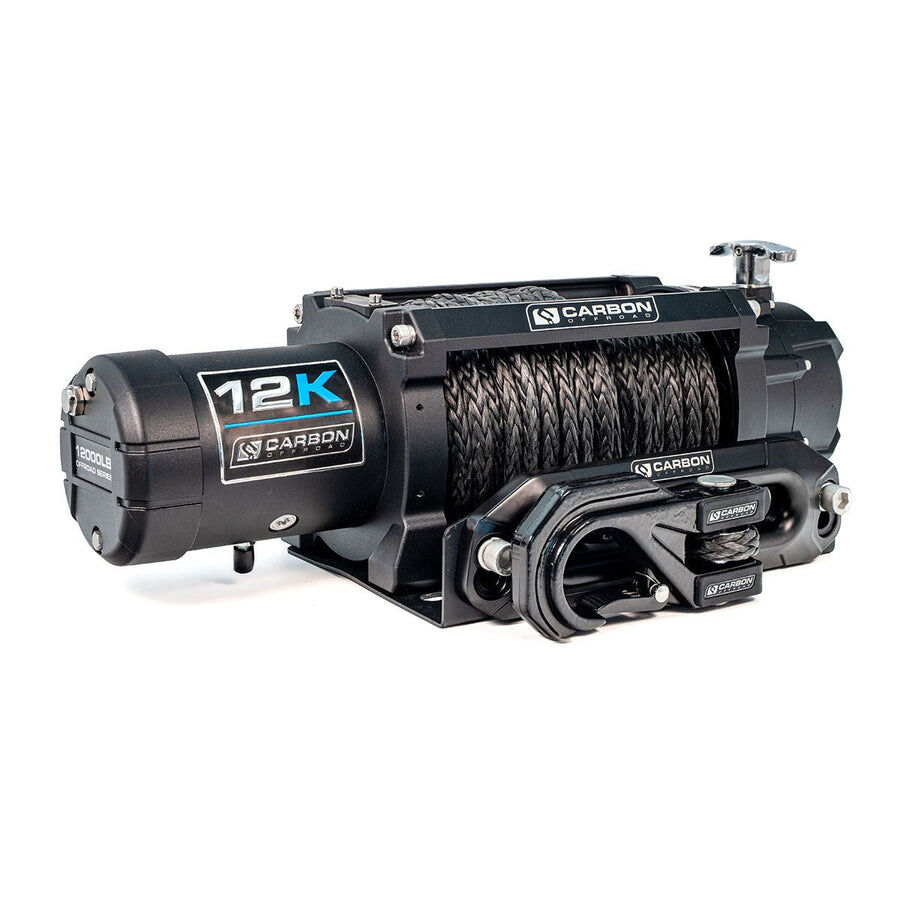

Carbon Winch 12K V3 – Lightweight 19 kg, 12,000 lb electric 4x4 winch with IP68 waterproofing, wireless/wired remotes, isolator switch, CNC alloy fairlead, and robust hook. Backed by a 5-year electrical/water ingress warranty and lifetime geartrain coverage—built tough for Australian off-road conditions.
Please note: Winch only
Technical Features
- Part number: CW-12KV3X
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6HP series wound motor (24V option available)
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 218:1

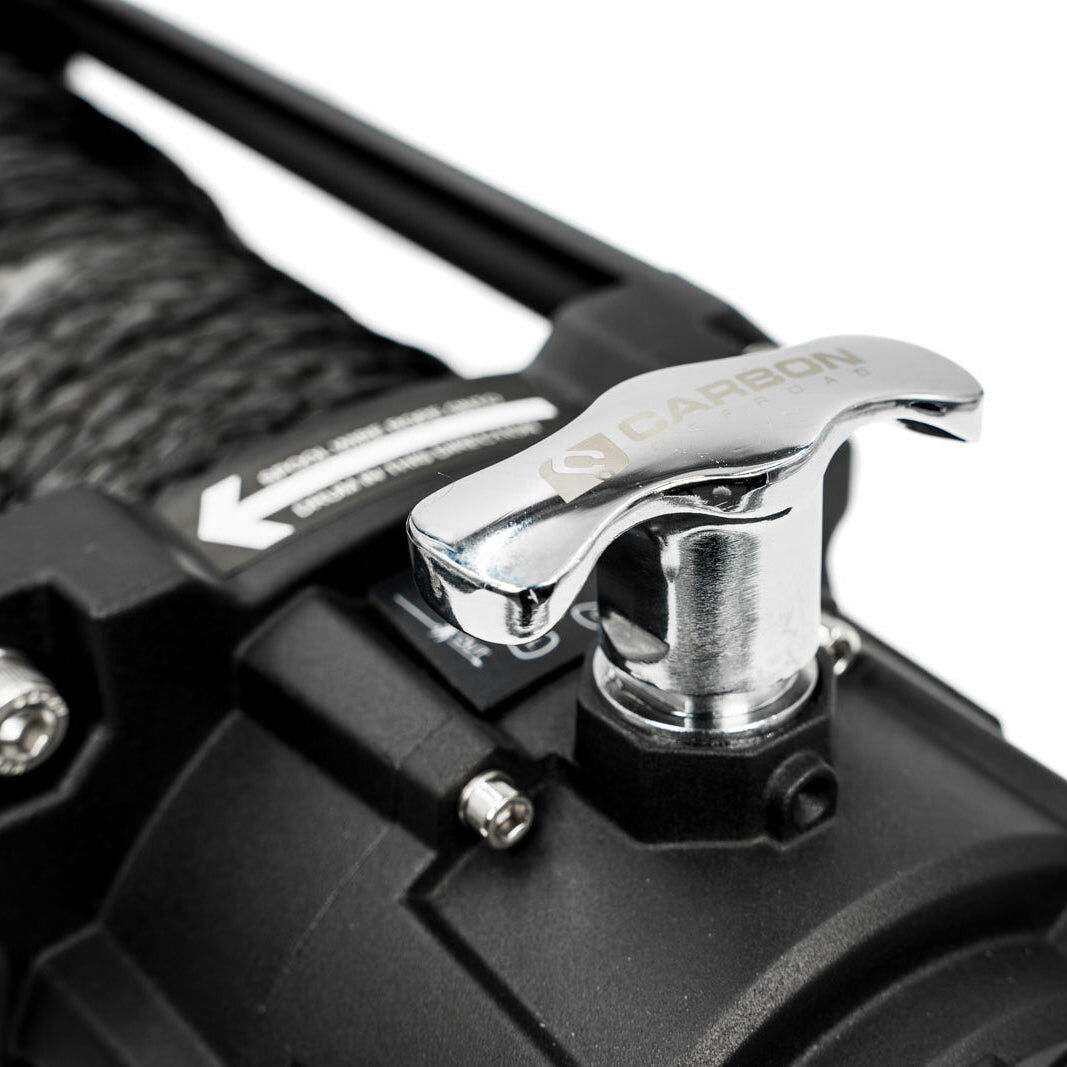

- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 63mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
- Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")
- Winch weight with synthetic rope attached: VERSION 3 - 19.7kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.65kg
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
Speed & Performance Breakdown
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 43.3 (13.2) | 70 | 1/12000 (5450) |
| 2000 (910) | 11.5 (3.5) | 130 | 2/9800 (4450) |
| 4000 (1810) | 9.2 (2.8) | 170 | 3/8300 (3770) |
| 6000 (2720) | 7.9 (2.4) | 220 | 4/7200 (3270) |
| 8000 (3630) | 6.9 (2.1) | 265 | 5/6400 (2900) |
| 10000 (4540) | 5.6 (1.7) | 320 | 6/5800 (2650) |
| 12000 (5450) | 4.6 (1.4) | 390 | 7/5300 (2420) |
Winch Dimensions
- 12000 lb pull for loaded rigs
- 6 HP motor with 3 stage gears
- IP68 housing for water crossings
- 24 m synthetic rope reduces weight
- Lifetime mechanical cover is a smart buy
- Gear ready for touring from coast to campsite
- Brand: Carbon Offroad
- Model: 12K V3X
- Part number: CW-12KV3X
- Rated line pull: 12000 lb (5450 kg) single-line
- Motor: 12V DC 6HP series wound
- Geartrain: 3-stage planetary
- Gear ratio: 218:1
- Clutch: rotating ring gear clutch with manual pull and twist handle
- Brake: full load automatic brake in motor housing end plate
- Synthetic rope size: 24 m length x 10 mm diameter
- Drum diameter/length: 63 mm x 224 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Recommended battery: 650 CCA minimum for winching
- Winch dimensions (L x W x H): 538 x 158 x 187 mm
- Packing dimensions (L x W x H): 580 x 200 x 220 mm
- Winch weight with synthetic rope attached: 19.7 kg (Version 3)
- Winch weight including rope, control box, cables, bolts and fairlead: 26.65 kg
- Ingress protection rating: IP68
- Electrical warranty: 5 years
- Water ingress protection warranty: 5 years
- Mechanical warranty on geartrain: lifetime
- Line speed at 0 kg: 43.3 ft/min (13.2 m/min) at 70 A
- Line speed at 2000 lb (910 kg): 11.5 ft/min (3.5 m/min) at 130 A
- Line speed at 4000 lb (1810 kg): 9.2 ft/min (2.8 m/min) at 170 A
- Line speed at 6000 lb (2720 kg): 7.9 ft/min (2.4 m/min) at 220 A
- Line speed at 8000 lb (3630 kg): 6.9 ft/min (2.1 m/min) at 265 A
- Line speed at 10000 lb (4540 kg): 5.6 ft/min (1.7 m/min) at 320 A
- Line speed at 12000 lb (5450 kg): 4.6 ft/min (1.4 m/min) at 390 A
• Carbon Offroad 12K V3X electric winch (winch body)
• Synthetic rope 24 m x 10 mm
• CNC alloy fairlead
• Winch hook
• Control box complete with cables
• Mounting bolts
| SKU | CW-12KV3XWO |
|---|---|
| Barcode # | OEBC719423 |
| Brand | Carbon Offroad |
| Shipping Weight | 21.2000kg |
| Shipping Width | 0.585m |
| Shipping Height | 0.215m |
| Shipping Length | 0.190m |
