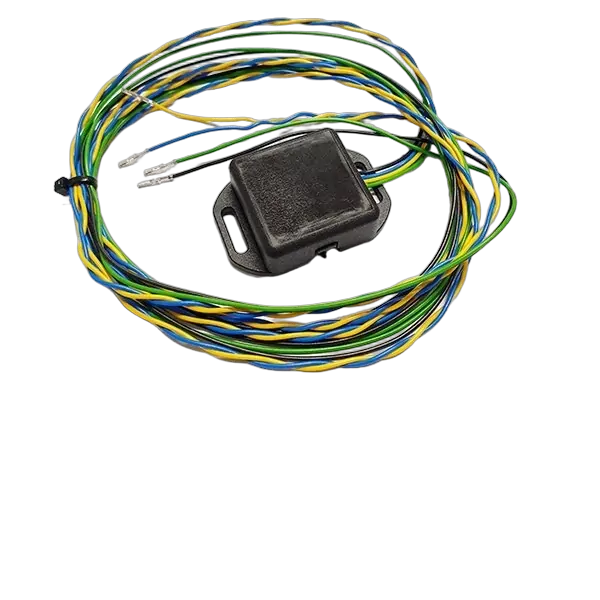

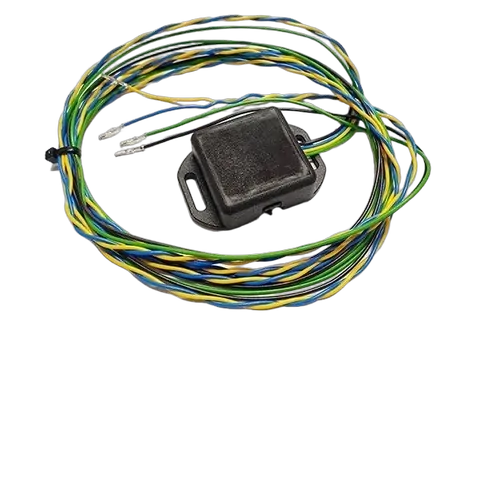

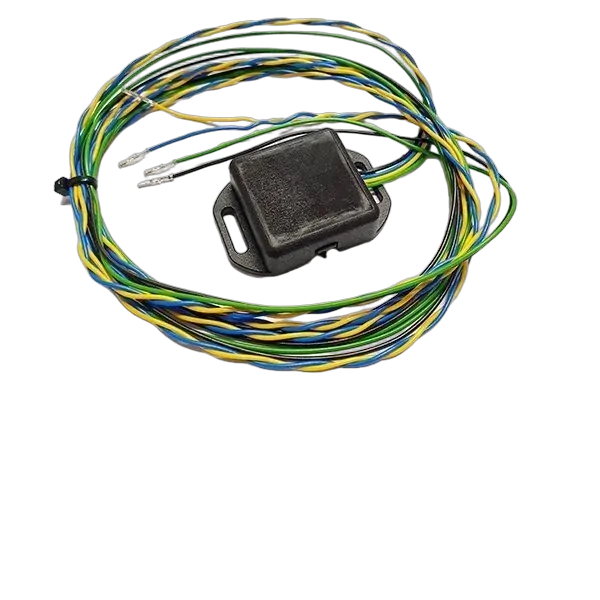

Contact-less Reader 5v
Allows the CAN Bus interface to read vehicle CAN Bus data without any actual metal to metal connection between the interface and the vehicle CAN Bus
How Does It Work?
The Contact-less Reader option allows the CAN Bus interface to read vehicle CAN Bus data without any actual metal to metal connection between the interface and the vehicle CAN Bus.
The reader is secured around a section of the vehicle CAN Bus wiring and data is read by an induction method, thus protecting any manufacturer’s warranty.
This version of our Contact-less reader works on 5v and is directly compatible with our CANNECT Range of Interfaces.
If you are installing one of our CANNECT Products, and wish to purchase a contactless reader to work with it, then this is the product for you.
The readers feature a strong locking clamp to retain their position around the CAN wiring. The CAN wiring must first be straightened for a short distance and the HI-LO wires identified and placed into the corresponding channels of the reader before the reader housing can be closed over the wiring.
CANM8 CANNECT Direct Compatibility
Utilising the contact-less reader with the CANM8-CANNECT is easy.
Most of the CANM8-CANNECT product range is directly compatible with contactless readers.
A 5v power connection is provided in the CANNECT interface harness connector that is designed to power the reader and the readers are supplied with pre-terminated wires.
Simply remove the CAN HI and LO connection wires from the CANNECT interface harness and fit the HI and LO connection wires from the reader into the same connector positions.
Click in the reader power wires into the corresponding powering positions and the interface is ready to install to the vehicle.
The Bi-colour LED at the base of the CANNECT interface confirms CAN data reception.
- Clamp-on gear for contact-less CAN access
- No cutting or splicing of CAN looms
- Pre-terminated HI LO and 5V wiring
- Built tough clamp for repeat installs
- Smart buy with CANM8 CANNECT setups
- Clear LED feedback for CAN activity
- Operating voltage: 5V
- Interface type: CAN Bus contact-less reader
- Connection method: Induction based around CAN wiring
- Physical connection: No metal to metal contact with vehicle CAN wiring
- Compatibility: Directly compatible with CANM8 CANNECT range of interfaces
- Supplied wiring: Pre-terminated HI, LO and 5V power wires
- Status indication: Bi-colour LED on CANNECT interface confirms CAN data reception
- Clamp style: Strong locking clamp to secure around straightened CAN wiring section
- 1 x CANM8 5V contact-less CAN Bus reader with integrated locking clamp housing
- Pre-terminated HI and LO CAN connection wires
- Pre-terminated 5V power supply wires
| SKU | C8CONRED5 |
|---|---|
| Barcode # | 9342270004984 |
| Brand | Canm8 |
| Shipping Weight | 1.5000kg |
