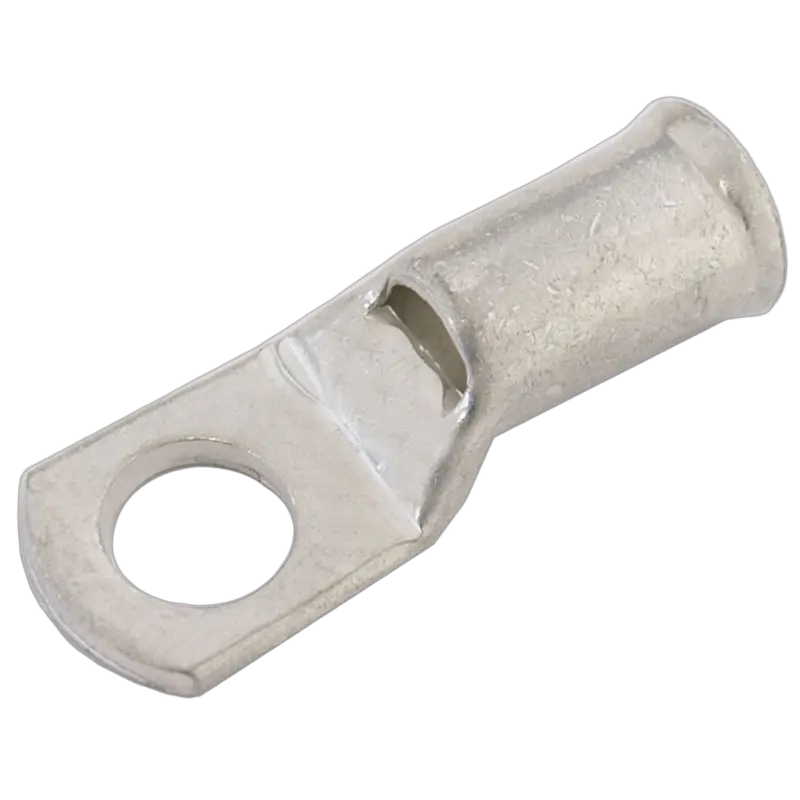

The VES Cable Lug Bell Mouth 50mm² M8 Stud gives your 12V gear a solid anchor point when you run 50mm² cable to an M8 terminal. The bell mouth entry helps feed thick multi-strand cable without flaring strands, handy around batteries, winches and inverters pulling higher current. The flat tongue sits neatly under standard M8 nuts, so you can tighten the joint and get out there without fuss.

This lug is sized specifically for 50mm² conductors, so your crimper bites clean and holds up to real-world vibration on corrugated tracks. The M8 eye suits common battery posts, bus bars and isolation switches that run M8 hardware. The compact body helps in battery boxes where you might only have 200–250mm of spare space around the terminals. Match it with heat shrink sized for 50mm² cable to finish the setup and tackle regular trips.

• VES bell mouth cable lug for 50mm² cable
• Suits heavy-duty battery and inverter leads
• Bell mouth entry helps guide cable strands
• M8 stud eye fits common terminals and bus bars
• Compact design suits tight battery compartments
• Solid metal construction for high current joints
• Compatible with standard 50mm² crimp tools
• Ideal for marine and automotive electrical wiring
• Flat tongue provides consistent contact surface
• Works well with appropriate heat shrink for strain relief

Q: What cable size does this lug suit?

This lug suits 50mm² cable only. This sizing means the barrel is matched to the insulation and copper area of 50mm² conductors. Undersized cable will not crimp correctly and may pull out under load. Oversized cable may not fit into the barrel at all. Stick with 50mm² to get a tight mechanical and electrical joint.

Q: What stud size does the eye fit?

The eye is drilled for an M8 stud. An M8 stud has an 8mm nominal diameter, which is common on battery switches, bus bars and heavy-duty terminals. Using the right stud size keeps the contact area large and even. This helps reduce hot spots at the joint. Always match the lug eye to the hardware size on your setup.

Q: Where is a bell mouth lug typically used?

A bell mouth lug is typically used on high current cables near batteries and switchgear. The flared entry helps guide multi-strand cable into the barrel without catching or folding strands. That makes it useful where cables move or are bent in tight spaces, like battery boxes or engine bays. A cleaner entry can also help the crimp tool compress the copper more evenly. This supports long-term reliability in mobile applications.

Q: Do I need a specific crimp tool for this lug?

You need a crimp tool rated for 50mm² lugs. Using a tool sized for smaller cable can crush or deform the barrel without gripping the copper properly. A tool rated to 50mm² applies the correct die profile and force around the full barrel. That helps achieve low resistance and strong pull-out performance. Always check your crimper markings before starting work.

Suitable for electrical cables sized 50mm² that terminate to an M8 stud connection point. Commonly used in marine and automotive 12V and 24V wiring where a bell mouth style lug is required.
