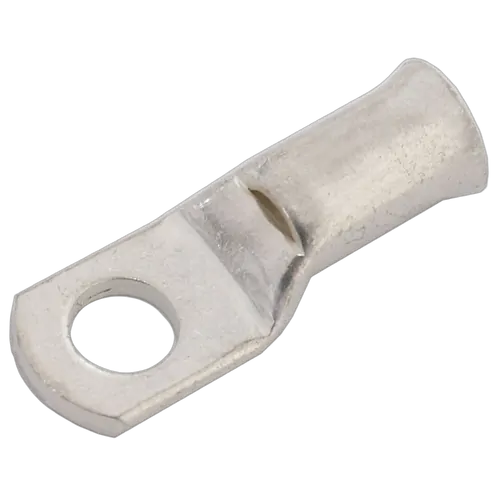

Grab this VES Cable Lug Bell Mouth when you need to terminate 35mm² cable onto an M8 stud without messing around. The bell mouth throat helps feed in the 35mm² conductor cleanly so your crimp lands square and tight on the barrel. The flat tongue drops neatly onto 8mm studs on busbars, batteries or isolators, keeping your wiring tidy across 12V or 24V setups.

The lug body is sized specifically for 35mm² automotive and marine cable, so your hex or indent crimper can do its job properly. The M8 eye lines up with standard 8mm hardware you already use across your rig or boat, which makes it a smart buy for repeat builds. The bell mouth shape supports the insulation over several millimetres, helping the cable cope with vibration and movement on long trips across corrugations or chop.

• VES bell mouth style cable lug
• Suits 35mm² automotive or marine cable
• M8 stud eye for 8mm hardware
• Bell mouth entry helps guide conductor
• Flat tongue design for compact terminations
• Solid metal barrel for crimped connections
• Suitable for high current 12V and 24V circuits
• Ideal for busbars, batteries and isolators
• Supports insulation transition at cable exit
• Compatible with 35mm²-rated crimp tools

Q: What cable size does this lug accept?

This lug accepts 35mm² cable. That suits heavier gauge automotive and marine wiring where you are running higher current loads. Matching the lug to the correct cross-sectional area helps the crimp tool form a solid mechanical bond. Correct sizing also keeps resistance low across the termination.

Q: What stud size will this eye fit?

This lug is made for an M8 stud. That means the eye suits 8mm bolts or threaded posts on busbars, batteries and isolator switches. Using the correct stud size keeps the contact area consistent across the tongue. It also stops the lug moving around under vibration.

Q: Is this lug suitable for both 12V and 24V systems?

Yes, this lug can be used on 12V and 24V systems. The key factor is matching the 35mm² cable and current rating of your circuit. Termination quality depends on using a crimper rated for 35mm² lugs. Always size fuses and cable to the load requirements of the system.

Q: Do I need a specific crimp tool for this lug?

You need a crimp tool rated for 35mm² lugs. Tools with hex or indent dies in the 35mm² range will normally suit this style of solid barrel lug. Using an under-sized hand tool can lead to loose crimps and higher resistance. Always check the die markings against the cable and lug size before crimping.
