Description
Features
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Circuit labels sold separately
- Fuses sold separately
Specifications

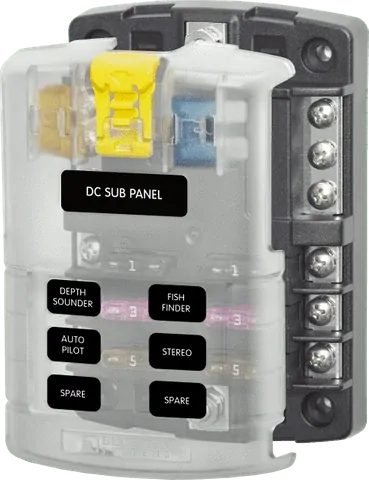

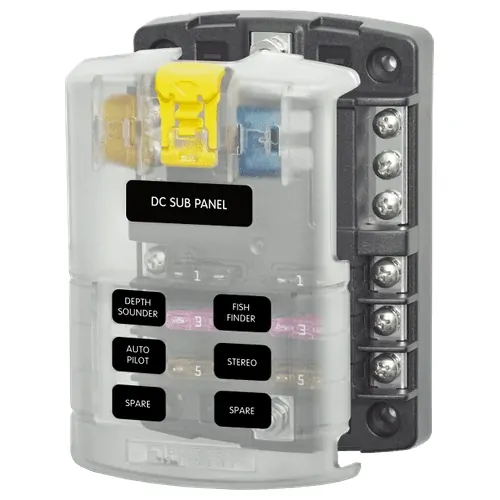

| ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover | |
|---|---|
| Circuits | 6 |
| Maximum Amperage | 30A per circuit 100A per block |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Screw Terminal Type | #8-32 with captive start lock washer |
| Weight | 0.25 kg |
Features
- Six-circuit fuse block for neat wiring
- Positive and negative buses on one base
- Clear cover with push button latch
- Tin-plated copper buses made to last
- Fits standard ATO and ATC blade fuses
- Solid gear for marine and touring boards
Specifications
- Circuits: 6
- Maximum amperage: 30A per circuit
- Maximum amperage: 100A per block
- Maximum voltage: 32V DC
- Positive distribution bus: #10-32 stud
- Negative bus: #10-32 stud
- Mounting: #8 screw (M4)
- Recommended torque: 24 in-lb (2.71 N·m)
- Screw terminal type: #8-32 with captive start lock washer
- Fuse type compatibility: ATO and ATC fast acting blade fuses
- Terminal compatibility: accepts ring or spade type terminals
- Construction: tin-plated copper buses and fuse clips
- Weight: 0.25 kg
- Cover: ABYC/USCG compliant insulation cover with push button latch
- Cover features: storage for two spare fuses and label recesses for Blue Sea Systems Small Format Labels
- 24-hour circuit compatibility: can be used for 24-hour circuits
1 x Blue Sea Systems ST Blade fuse block with 6 circuits
1 x Negative bus with #10-32 stud
1 x Protective cover with push button latch
| SKU | BS-5025B |
|---|---|
| Barcode # | OEBC527364 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.2000kg |
