Description
Features

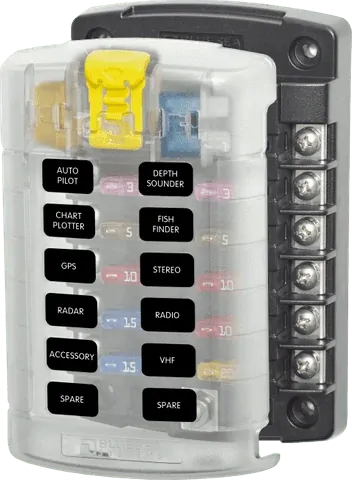

ST Blade Fuse Block – 12 Circuits with Cover
Consolidates branch circuits and in-line fuses.
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Circuit labels sold separately
- Fuses sold separately
Specifications
| ST Blade Fuse Block – 12 Circuits with Cover | |
|---|---|
| Circuits | 12 |
| Maximum Amperage | 30A per circuit 100A per block |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Screw Terminal Type | #8-32 with captive start lock washer |
| Weight | 0.31 kg |
Features
- 12 fused circuits in one block
- Rated 30A per circuit, 100A block
- Positive bus on #10-32 stud
- Clear cover with label recesses
- Tin-plated copper for low resistance
- Suits ATO and ATC blade fuses
Specifications
- Circuits: 12
- Maximum amperage: 30A per circuit
- Maximum amperage: 100A per block
- Maximum voltage: 32V DC
- Positive distribution bus: #10-32 stud
- Mounting: 8" screw (M4)
- Recommended terminal torque: 24 in-lb (2.71 N·m)
- Screw terminal type: #8-32 with captive start lock washer
- Bus and fuse clip material: tin-plated copper
- Weight: 0.31 kg
- Accepts fuse types: ATO and ATC fast acting blade fuses
- Terminal compatibility: accepts ring or spade type terminals
- Cover: includes push button latch, storage for two spare fuses, and recesses for Blue Sea Systems small format labels
- Cover insulation: satisfies ABYC/USCG requirements
1 x Blue Sea Systems ST Blade Fuse Block – 12 Circuits with Cover
| SKU | BS-5029B |
|---|---|
| Barcode # | OEBC527367 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.3500kg |

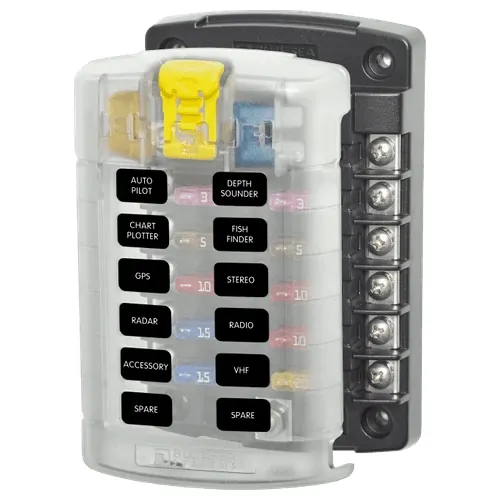

Blue Sea Systems St Blade Fuse Block - 12 Circuits With Cover
SKU: BS-5029B
Sale price
REG $84.00
SALE ENDS
Dispatch in 7 days
More infoMake 4 payments of $19.87 over 8 weeks and get it now!
