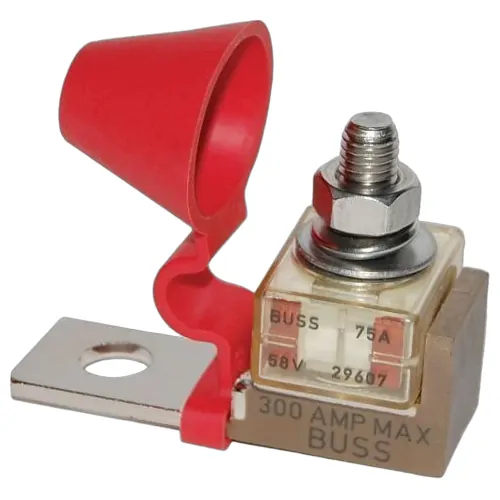

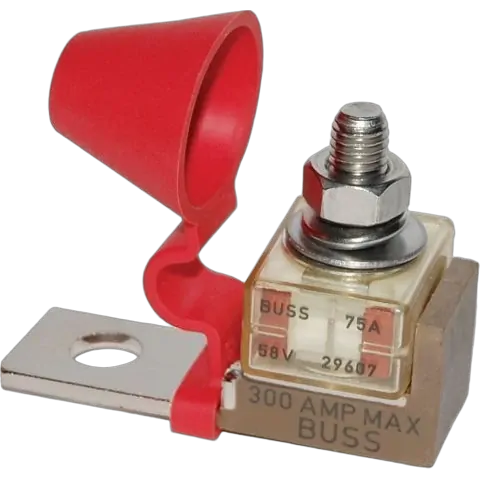

Blue Sea Systems Single Mrbf Terminal Fuse Block - 30 To 300A

Features

  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5∕16″ ring terminals
  • Fuse sold separately

Specifications

MRBF Terminal Fuse Block – 30 to 300A
Maximum Amperage 300A
Maximum Voltage 58V DC
Maximum Torque 75 in-lb (8.47 Nm)
Terminal Stud M8 (5/16″)
Weight 0.07 kg

Specifications

MRBF Terminal Fuse Block – 30 to 300A
Maximum Amperage 300A
Maximum Voltage 58V DC
Maximum Torque 75 in-lb (8.47 Nm)
Terminal Stud M8 (5/16″)
Weight 0.07 kg
  • Gear built for high-amp DC runs
  • MRBF fuse range 30A to 300A
  • Isolated M8 stud keeps wiring tidy
  • Lightweight 0.07 kg housing suits batteries
  • Insulating cap helps guard against shorts
  • Maximum amperage: 300A
  • Maximum voltage: 58V DC
  • Maximum torque: 75 in-lb (8.47 Nm)
  • Terminal stud size: M8 (5/16")
  • Compatible fuse rating range: 30A to 300A MRBF
  • Accepts 5/16" ring terminals
  • Weight: 0.07 kg
  • Compact single terminal fuse block layout
  • Ignition protected when used with Blue Sea Systems MRBF terminal fuse
  • 1 x Blue Sea Systems Single MRBF terminal fuse block
  • 1 x insulating protective cap
SKU BS-5191
Barcode # OEBC527371
Brand Blue Sea Systems
Shipping Weight 0.2000kg
