Description
Gone are the days of manually winding the jockey wheel to raise or lower the caravan or trailer. The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today.

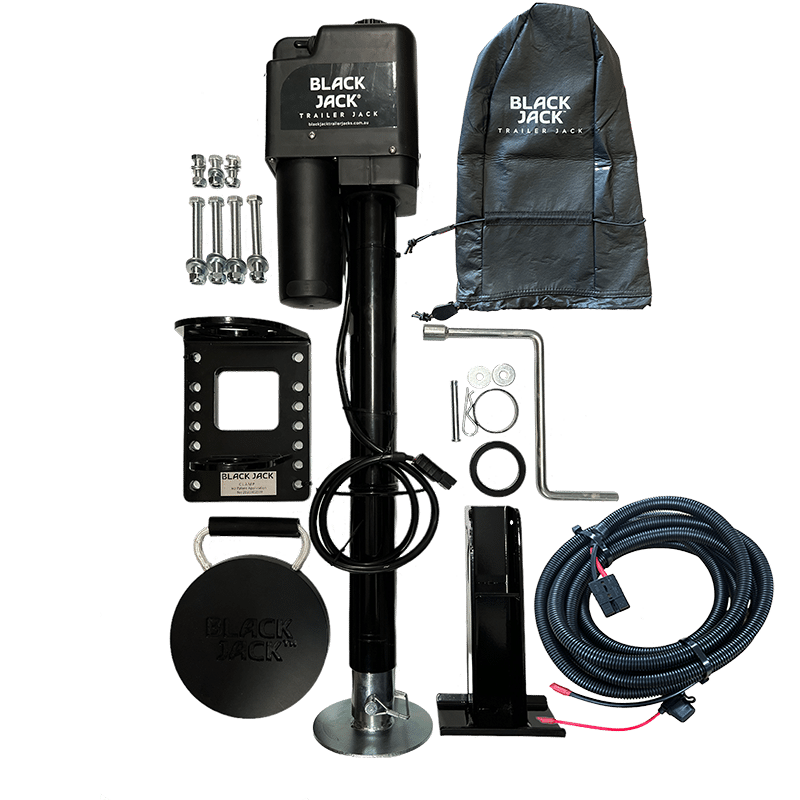

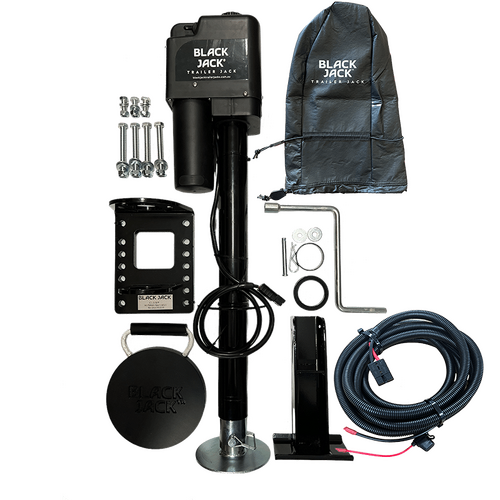

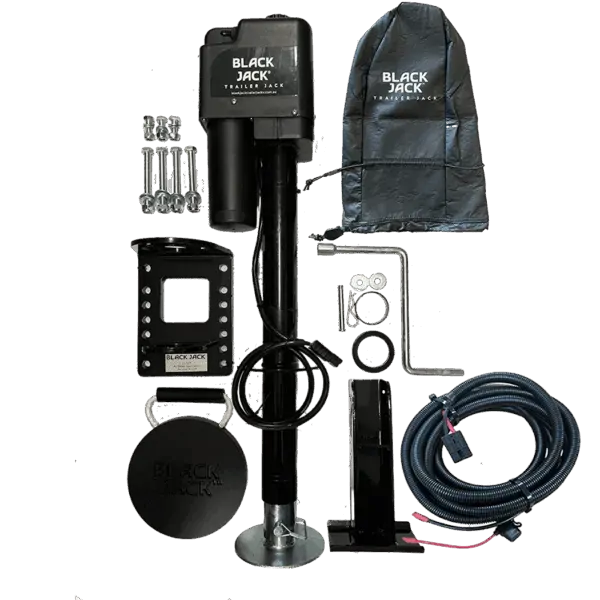

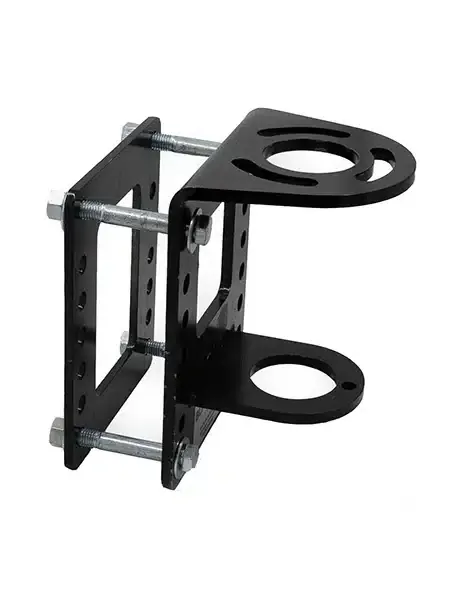

BJTJ-MASTER-1001 Includes clamp bracket, bolt kit, folding foot, foot pad, all weather cover, and wiring kit (hardwired back to Caravan house battery).
Features
- 1600 kg lifting capacity, more than enough muscle
- Safety Auto Stop
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Pre-wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ-MASTER–1001)
- Free all-weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg
| Feature | Black Jack Mini | Black Jack Master | Black Jack Maxi |
| Price | $375 | $525/$575 | $635/$695 |
| Lifting Capacity | 1000 kg | 1600kg | 2000 kg |
| Black Jack Safe Auto Stop | Yes | Yes | Yes |
| Remote Control | No | No | Yes |
| Worm Drive | ACME Screw Drive | ACME Screw Drive | Ball Bearing Worm Drive |
| Gas Compliance | Yes | Yes | Yes |
| Clamp Diameter | 50 mm | 60mm (Black Jack Clamp Bracket) | 60mm (Black Jack Clamp Bracket) |
| Fits Existing Clamp? | Yes | No | No |
| Power Source | 12V through a 50A Anderson Plug | 12V through a 50A Anderson Plug | 12V through a 50A Anderson Plug |
| Power Draw | 6A (no load) / 20A (max load) | 6A (no load) / 28A (max load) | 6A (no load) / 28A (max load) |
| Maximum Lift Height | 500 mm | 650mm | 650 mm |
| Warranty | 3 Years | 3 Years | 3 Years |
Specifications
| SKU | BJTJ-Master-1001 |
|---|---|
| Barcode # | 726436304078 |
| Brand | Black Jack |
| Shipping Weight | 22.0000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.260m |
| Shipping Length | 0.890m |
Black Jack Master 1001 Trailer Jack
SKU: BJTJ-Master-1001
Sale price
REG $575.00
Ships in 1-2 weeks
More infoMake 4 payments of $143.75 over 8 weeks and get it now!
Calculate Shipping
