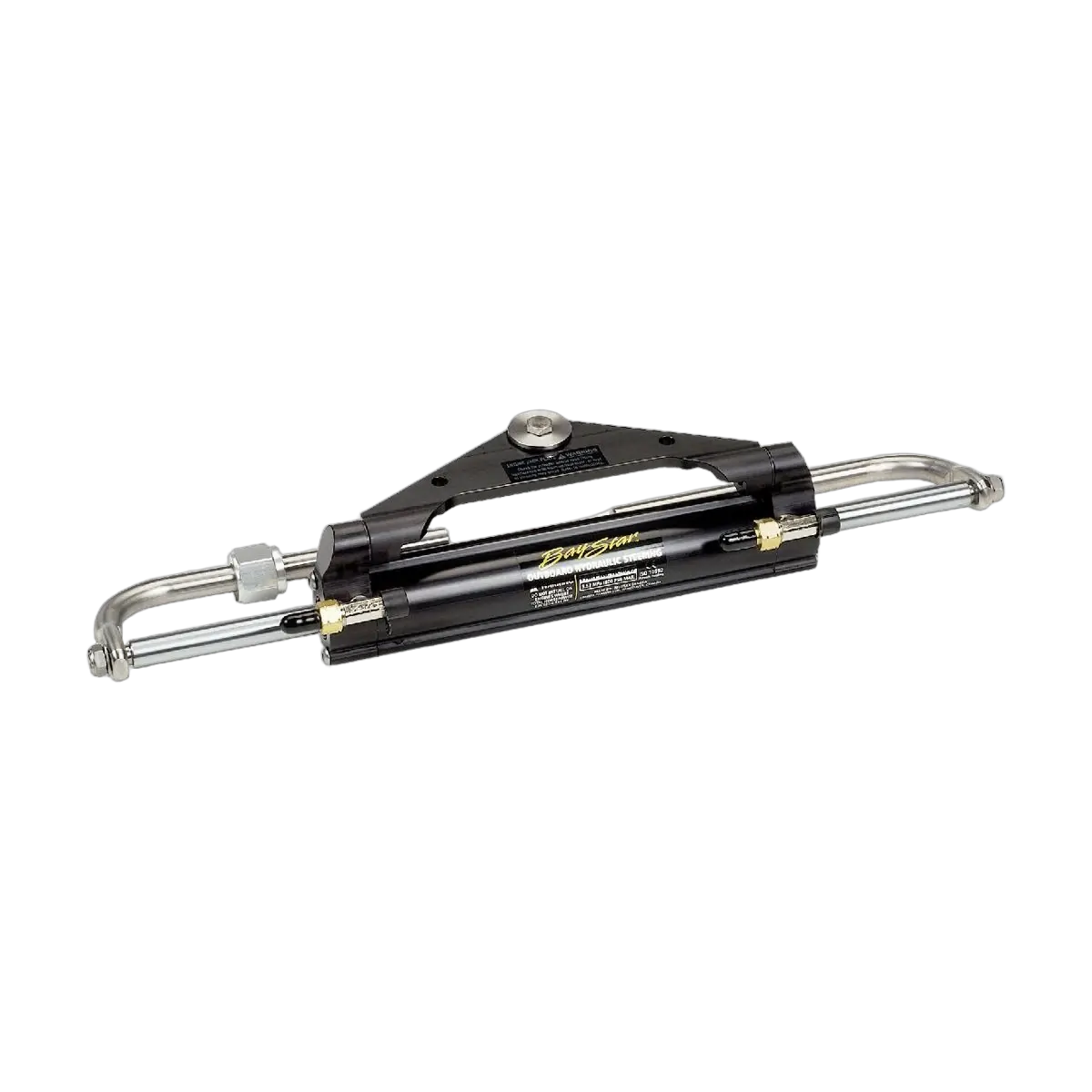

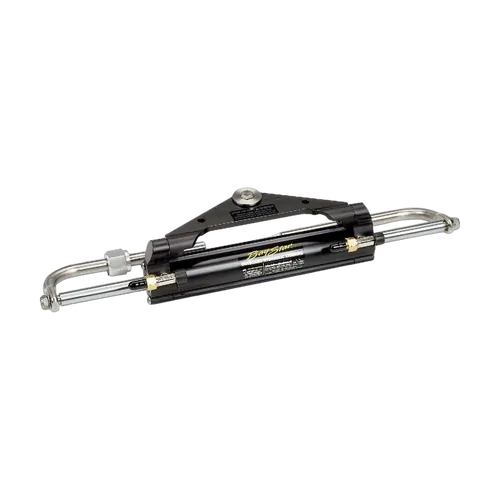

Baystar Cylinder Front Mount – SeaStar Solutions Part No. HC4658H

BayStar™ Plus outboard hydraulic steering has been developed by SeaStar Solutions® to suit most single outboard driven vessels up to 150HP*. For applications that exceed BayStar’s HP rating please purchase one of our SeaStar® products.
Features:
• Patented No FeedBack™ steering lock valves
• Super low friction helm for smooth comfortable steering
• 5.2 turns lock to lock
• Balanced design that fits most splashwells
provides full engine movement
• Cylinders to suit most outboards
* Not recommended for Mercury 150HP Optimax DFI
Three easy steps to order your BayStar™ Steering kit:
1. Check helm dimensions: Front Mount Hydraulic Helm
• Used with both front and side mount cylinders
• Easily installed to your existing console to create a professional finish
• Easy front of console filling point for hydraulic oil
• Simple purging process
2. Check cylinder dimensions: Front Mount Cylinder
• This compact unit fits narrow splashwells with only 534mm width required
• The steering cylinder is protected in the splashwell
• One common cylinder fits most outboards to 150HP
• Fits to outboard tilt tube
3. Splashwell:
Is there enough room in the splashwell for full engine tilt? Check
your dimensions (A, B & C) and ensure that they are the same or
more than what is listed.

Cylinder Model: Front Mount Bore: 1.25" / 31.7mm Shaft Dia.: .625" / 15.9mm Stroke: 8" / 203mm Volume: 118.6cc / 7.2in3 Torque: N/A
