Description
| FEATURES |
| • Dual heating - Incoloy Electric Element and Heat Exchanger Coil. • Incoloy* Electrical Heating Element is 1250 Watts allowing hot water production when engine heat is not available. • Heat Exchanger Coil features a large surface area designed to generate a large output of hot water. • Insulation uses closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free). • Water Heater Tank has both Pickling and Passivation treatment for increased anti-corrosion performance.** • Adjustable safety thermostat. • Pressure relief and non-return valve. • Easy drain connection. • Power cable and Australian plug supplied (AS/NZS 3112). • Purpose built from high-quality materials for the marine environment: Tank: AISI 316L Stainless Steel. Heat Exchanger: AISI 316L Stainless Steel. External Casing: AISI 304 Stainless Steel. Mounting Brackets: AISI 304 Stainless Steel. • RCM Certified: SAA-180560-EA. • CE Certified EN 60335. |
| Part No. | 44304 |
| Max Pressure | 700 kPa |
| Connectors | 1/2 inch |
| Dimensions (A x B x C) | 320mm x 565mm x 331mm |
| Capacity | 22Ltr |
| Element | 1250W / 5.4A |
| Volts | 230V |
| Note | * Incoloy refers to a range of superalloys designed for excellent corrosion resistance as well as strength at high temperatures. ** Both Pickling and Passivation are chemical treatments applied to the surface of stainless steel to remove contaminants and assist the formation of a continuous chromium-oxide, passive film which protect the Stainless steel from corrosion. |
Features
- Dual-source heating for flexible setups
- 316L stainless tank handles marine use
- 22 L capacity suits day trips
- Closed-cell insulation holds heat longer
- Smart buy for Aussie trailer boats
Specifications
- Capacity: 22 litres
- Electric element type: Incoloy superalloy
- Electric element power: 1250 W
- Electric element current draw: 5.4 A
- Voltage: 230 V AC
- Heating system: dual electric element and stainless steel heat exchanger coil
- Maximum pressure rating: 700 kPa
- Hydraulic connectors size: 1/2 inch
- Overall dimensions (A x B x C): 320 mm x 565 mm x 331 mm
- Tank material: AISI 316L stainless steel
- Heat exchanger material: AISI 316L stainless steel
- External casing material: AISI 304 stainless steel
- Mounting brackets material: AISI 304 stainless steel
- Thermal insulation type: closed cell expanded polyurethane foam
- Insulation blowing agents: HFC, CFC, HCFC and HFA free
- Tank surface treatments: pickling and passivation chemical processes
- Safety controls: adjustable thermostat plus pressure relief and non-return valve
- Certification: RCM SAA-180560-EA
- Certification: CE EN 60335

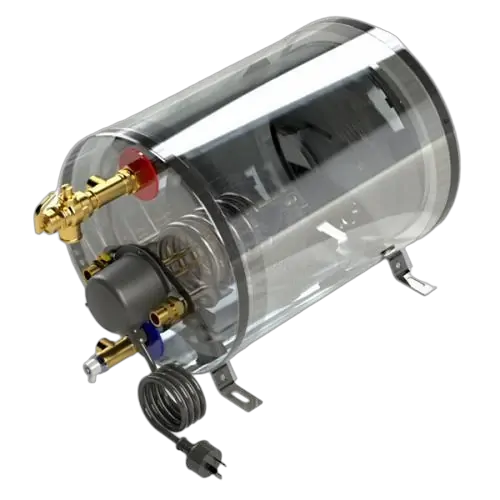

ATI Water Heater 22L S/S 230V-1250W unit
Integrated Incoloy 1250W electric heating element

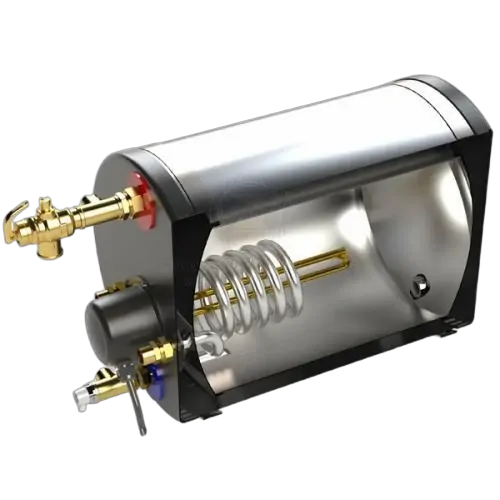

Integrated stainless steel heat exchanger coil
Pre-fitted pressure relief and non-return valve
Pre-fitted adjustable safety thermostat
Pre-fitted AC power cable with Australian plug (AS/NZS 3112)
Mounted stainless steel mounting brackets
| SKU | 44304 |
|---|---|
| Barcode # | 9330420204254 |
| Brand | ATI |
| Shipping Weight | 9.2000kg |

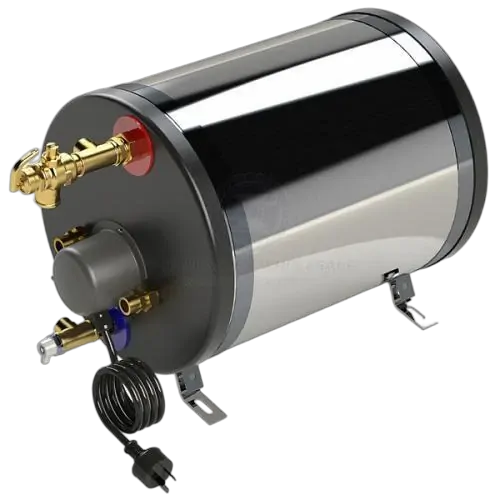

ATI Water Heater 22L S/S 230V-1250W AU/NZ standard
SKU: 44304
Sale price
REG $1,508.40
Dispatch in 5 days
More infoMake 4 payments of $377.10 over 8 weeks and get it now!
