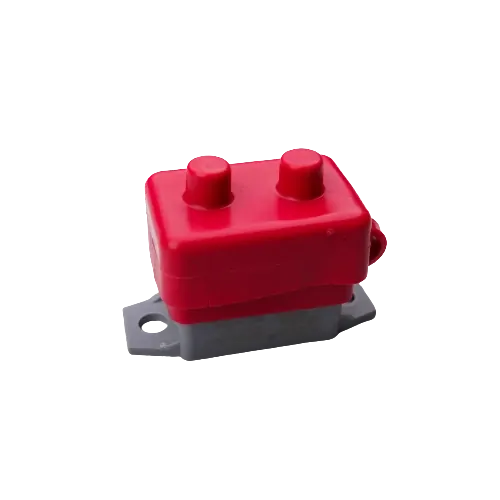

The VES 30AMP Metal Auto Circuit Breaker with Red Cover Twin Pack gives you straightforward circuit protection for 12V and 24V setups pulling up to 30 amps per line. You can drop one next to a starter battery that runs a fridge drawing around 8 amps and another on a compressor line that peaks closer to 30 amps. The stud mount base bolts to a guard or battery tray and the bright red cover makes each breaker easy to spot during checks.

A metal housing handles typical engine bay heat where temps can nudge 80 degrees Celsius on long highway pulls. The auto reset function means the internal contacts open when current goes past the 30 amp rating then close again once things settle. Each unit uses two threaded studs that suit common ring terminals on 6 to 10 mm² cable. The twin pack keeps both main accessory circuits running the same proven, built tough gear.

• 30AMP auto reset circuit breaker rating
• Metal body suited to automotive environments

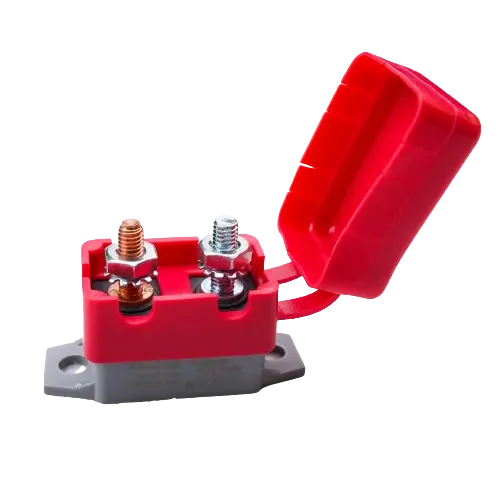

• Red protective cover shields live terminals
• Stud mount base for secure installation
• Twin pack includes two identical breakers
• Compatible with 12V and 24V circuits
• Ideal for accessory lines like fridges or compressors
• Clearly visible housing for quick checks
• Reusable protection compared to single-use fuses
• Compact form factor suits tight engine bays

Q: Can I mount these breakers in the engine bay?

Yes, these 30AMP metal auto circuit breakers are suitable for typical engine bay locations. The metal housing copes with the higher ambient temperatures around the battery area. Just keep them away from direct exhaust heat where possible. Mount them on a solid surface using the base holes and ensure the red cover can open fully for access.

Q: Do these breakers replace standard blade fuses?

Yes, in many setups these can replace a single inline blade fuse of the same 30AMP rating. They trip under overload like a fuse but auto reset once the current drops back into range. That means you do not need to carry as many spare fuses. Always match or exceed the original wiring and component ratings when swapping protection.

Q: Are these breakers suitable for both positive and negative lines?

Yes, they can be used in either a positive or negative line as long as the circuit current does not exceed 30AMP. Most automotive setups place protection on the positive feed which keeps fault isolation simple. Make sure the studs are wired inline with the load not bridged. Tighten the terminal nuts firmly without overtightening onto the studs.

Q: Can I use one breaker for multiple accessories?

Yes, you can run multiple accessories through one 30AMP breaker if the combined draw stays under 30AMP. For example two smaller loads drawing 10AMP and 5AMP together stay within the rating. If you expect higher peaks from devices like compressors, split them onto their own breaker. Separate circuits make faults easier to track down on the road.
