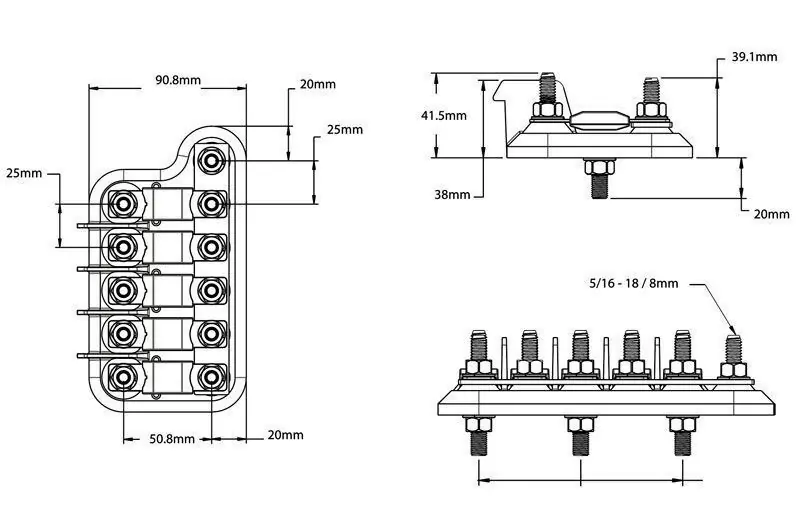

This LV Automotive 5 Way M8 Mega Fuse Holder handles up to 300A combined current, so you can run multiple heavy 12V loads from one spot. The base is only 90.8mm long and 50.8mm wide, which makes it handy on cramped battery trays or in canopies. Five M8 studs spaced at 25mm give you room for thick lugs, so you can tackle winches, compressors, or inverters from a single distribution point. The black plastic housing stands 20mm off the mounting surface, keeping hardware clear of deck water and road splash. A red plastic cover at about 39.1mm high shields the connections but still lifts off for fuse checks. Stainless steel M8 hardware with 5/16-18 thread handles marine environments and rough tracks. The layout stays simple and clear, making this a smart buy for tidy, high-current wiring on Aussie trips.

• 5-way Mega fuse holder for high-current circuits
• Combined current rating of 300A across all positions
• Compact housing footprint of 90.8mm x 50.8mm
• M8 (5/16-18) stainless steel studs for heavy lugs
• Black moulded plastic base with red protective cover
• Base height of 20mm for cable clearance above mounting surface
• Overall assembly height around 39.1mm including cover
• Stud spacing at 25mm centres for neat cable layout
• Suitable for 12V and 24V marine or vehicle electrical setups
• Bolt-on design for secure circuit protection mounting

Q: Can this 5 Way M8 Mega Fuse Holder be used on both 12V and 24V systems?

Yes, it can be used on 12V and 24V systems. The key limit is the combined current rating of 300A across all five fuse positions. As long as the system voltage matches your Mega fuses and wiring spec, the holder will work. Always size cabling and fuses to suit the maximum current your setup expects.

Q: What type of fuses fit this holder?

This holder is made for Mega-style bolt-down fuses. Each of the five positions uses M8 studs that match the eyelets on standard Mega fuses. Make sure the fuse current rating stays within the 300A combined limit for the block. Always use quality fuses from recognised electrical brands.

Q: How much space do I need around the fuse holder for installation?

You need slightly more than the 90.8mm by 50.8mm footprint to allow for cable bends and tools. The studs rise about 38mm above the base and the red cover reaches roughly 39.1mm high. Leave clearance above and to the sides so cables are not forced or rubbing. This helps avoid strain on the lugs over time.

Q: Is this fuse holder suitable for marine environments?

Yes, it is suitable for marine use when installed correctly. The stainless steel M8 hardware gives good resistance to corrosion around spray and moisture. The plastic base and red cover keep most water away from the terminals. Regular inspection and fresh dielectric grease on lugs will help the gear go the distance.
