Quality Tycab cable for 12V automotive wiring. Please note: “2.5mm” is Tycab’s industry size name, not the actual copper cross-section. This cable has a 0.64mm² conductor, 8/0.32 strand construction, 13A nominal rating, and 29.9 ohm/km resistance to help you choose the right cable for your application.
Specifications:
- Industry size name: 2.5mm
- Actual conductor area: 0.64mm²
- Stranding: 8/0.32
- Nominal current rating: 13A at 30°C
- Resistance: 29.9 ohm/km at 20°C
- Nominal outside diameter: 2.0mm (single core)
- Conductor material: Oxygen free plain copper
- Insulation: V90 PVC
- Application: General purpose automotive wiring
- Important note: Tycab states the amp rating is nominal and derating applies when single-core cables are bundled or used in higher ambient temperatures.
- 2.5 mm² core for general 12V work
- 100 m length ideal for workshops
- White insulation makes fault tracing simpler
- Single core keeps looms slim and tidy
- Copper strands handle typical accessory loads
- Conductor size: 2.5 mm² single core
- Cable colour: white outer sheath
- Cable length: 100 m spooled
- Core type: single core cable
- Brand: Tycab
- Category: Electrical wiring cable
Tycab 2.5mm White Single Core Cable – 100 m spooled length.
| SKU | CB025A1-100WE |
|---|---|
| Barcode # | OEBC536781 |
| Brand | Tycab |
| Shipping Weight | 1.1000kg |

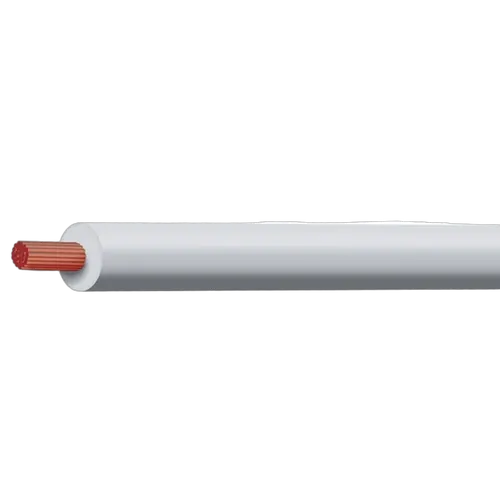

2.5mm White 100M Single Core Cable (Spooled Length)
