Quality Tycab cable for 12V automotive wiring. Please note: “2.5mm” is Tycab’s industry size name, not the actual copper cross-section. This cable has a 0.64mm² conductor, 8/0.32 strand construction, 13A nominal rating, and 29.9 ohm/km resistance to help you choose the right cable for your application.
Specifications:
- Industry size name: 2.5mm
- Actual conductor area: 0.64mm²
- Stranding: 8/0.32
- Nominal current rating: 13A at 30°C
- Resistance: 29.9 ohm/km at 20°C
- Nominal outside diameter: 2.0mm (single core)
- Conductor material: Oxygen free plain copper
- Insulation: V90 PVC
- Application: General purpose automotive wiring
- Important note: Tycab states the amp rating is nominal and derating applies when single-core cables are bundled or used in higher ambient temperatures.
- 2.5 mm² copper core for power
- Brown jacket keeps wiring colour coded
- 100 m spool suits repeat installs
- Single core cable simplifies routing
- Matches common auto electrical terminals
- Brand: Tycab
- Cable type: single core
- Conductor cross-sectional area: 2.5 mm²
- Cable colour: brown
- Cable length: 100 m
- Configuration: spooled length

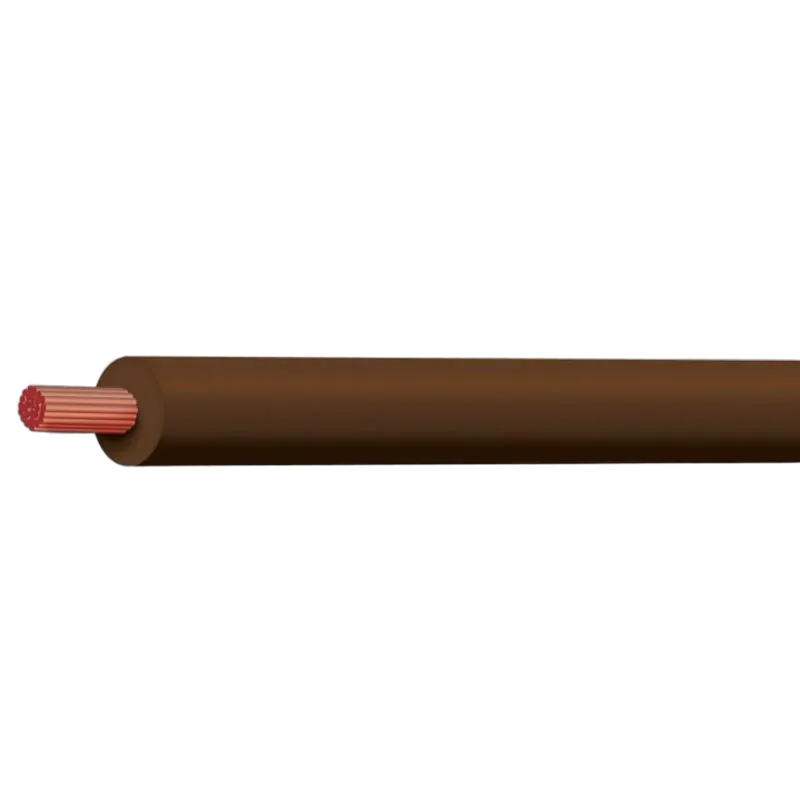

Tycab 2.5mm brown single core cable spool 100 m length.
| SKU | CB025A1-100BN |
|---|---|
| Barcode # | OEBC536780 |
| Brand | Tycab |
| Shipping Weight | 1.1000kg |
2.5mm Brown Single Core 100M Cable (Spooled Length)
More infoMake 4 payments of $11.12 over 8 weeks and get it now!
Calculate Shipping
Quality Tycab cable for 12V automotive wiring. Please note: “2.5mm” is Tycab’s industry size name, not the actual copper cross-section. This cable has a 0.64mm² conductor, 8/0.32 strand construction, 13A nominal rating, and 29.9 ohm/km resistance to help you choose the right cable for your application.
Specifications:
- Industry size name: 2.5mm
- Actual conductor area: 0.64mm²
- Stranding: 8/0.32
- Nominal current rating: 13A at 30°C
- Resistance: 29.9 ohm/km at 20°C
- Nominal outside diameter: 2.0mm (single core)
- Conductor material: Oxygen free plain copper
- Insulation: V90 PVC
- Application: General purpose automotive wiring
- Important note: Tycab states the amp rating is nominal and derating applies when single-core cables are bundled or used in higher ambient temperatures.
- 2.5 mm² copper core for power
- Brown jacket keeps wiring colour coded
- 100 m spool suits repeat installs
- Single core cable simplifies routing
- Matches common auto electrical terminals
- Brand: Tycab
- Cable type: single core
- Conductor cross-sectional area: 2.5 mm²
- Cable colour: brown
- Cable length: 100 m
- Configuration: spooled length
Tycab 2.5mm brown single core cable spool 100 m length.
| SKU | CB025A1-100BN |
|---|---|
| Barcode # | OEBC536780 |
| Brand | Tycab |
| Shipping Weight | 1.1000kg |
