Quality Tycab cable for 12V trailer wiring. Please note: “2.5mm” is Tycab’s industry size name, not the actual copper cross-section. Each core has an actual conductor size of 0.64mm² with 8/0.32 strand construction, 6A nominal rating, and 29.9 ohm/km resistance, giving you the key specs needed to choose the right trailer cable for your setup.
CB025A7 suggested spec block
- Industry size name: 2.5mm
- Cable type: 7 core trailer cable
- Actual conductor area: 0.64mm² per core
- Stranding: 8/0.32 per core
- Nominal current rating: 6A @ 30°C
- Resistance: 29.9 ohm/km @ 20°C
- Insulation thickness: 0.4mm
- Sheath thickness: 0.6mm
- Nominal overall diameter: 7.3mm
- Application: Trailer wiring / 12V trailer wiring
- Seven-core layout for full trailer circuits
- 2.5 mm² copper cores reduce voltage drop
- Sold per metre for neat custom runs
- Colour coding makes plug wiring straightforward
- Sheath handles grime from Aussie roads
- Conductor size: 2.5 mm² per core
- Number of cores: 7
- Cable type: trailer wiring cable
- Conductor material: copper (multi-strand)
- Outer sheath colour: black
- Sale unit: sold per metre
- Brand: Tycab
- Category: electrical wiring cable for trailers
| SKU | CB025A7 |
|---|---|
| Barcode # | OEBC537116 |
| Brand | Tycab |
| Shipping Weight | 0.0900kg |

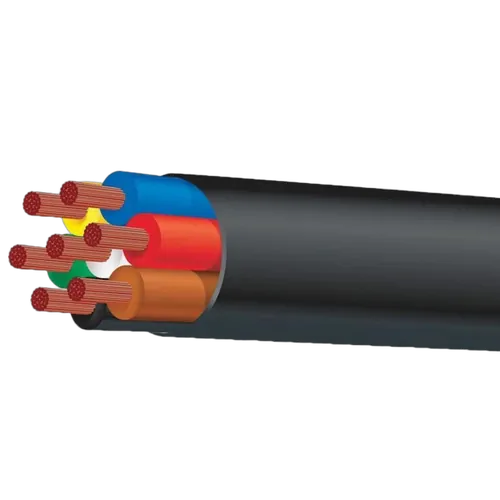

2.5mm 7 Core Trailer (Sold Per Metre)
