Quality Tycab cable for 12V trailer wiring. Please note: “2.5mm” is Tycab’s industry size name, not the actual copper cross-section. Each core has an actual conductor size of 0.64mm² with 8/0.32 strand construction, 6A nominal rating, and 29.9 ohm/km resistance, giving you the key specs needed to choose the right trailer cable for your setup.
CB025A7 suggested spec block
- Industry size name: 2.5mm
- Cable type: 7 core trailer cable
- Actual conductor area: 0.64mm² per core
- Stranding: 8/0.32 per core
- Nominal current rating: 6A @ 30°C
- Resistance: 29.9 ohm/km @ 20°C
- Insulation thickness: 0.4mm
- Sheath thickness: 0.6mm
- Nominal overall diameter: 7.3mm
- Application: Trailer wiring / 12V trailer wiring
| SKU | CB025A7-100 |
|---|---|
| Barcode # | OEBC537008 |
| Brand | Tycab |
| Shipping Weight | 8.1700kg |

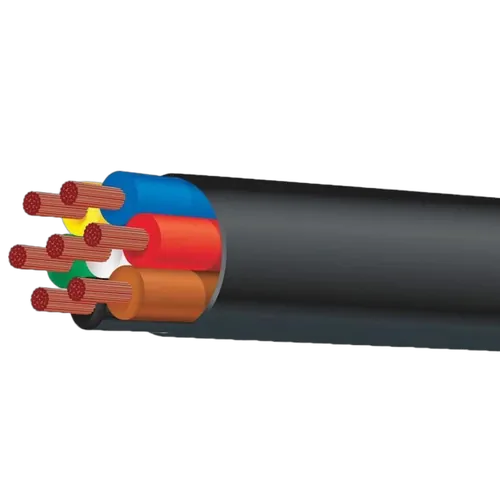

2.5mm 7 Core Trailer 100M (Spooled Length)
