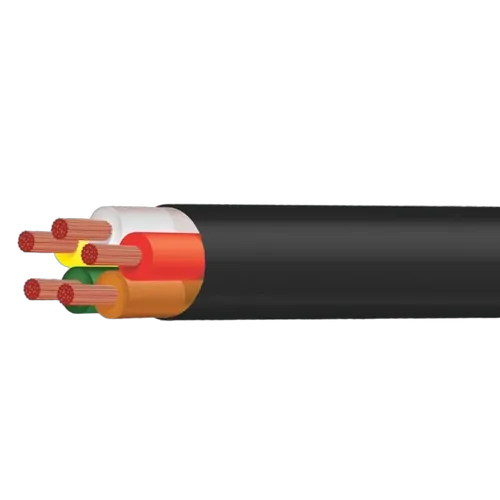

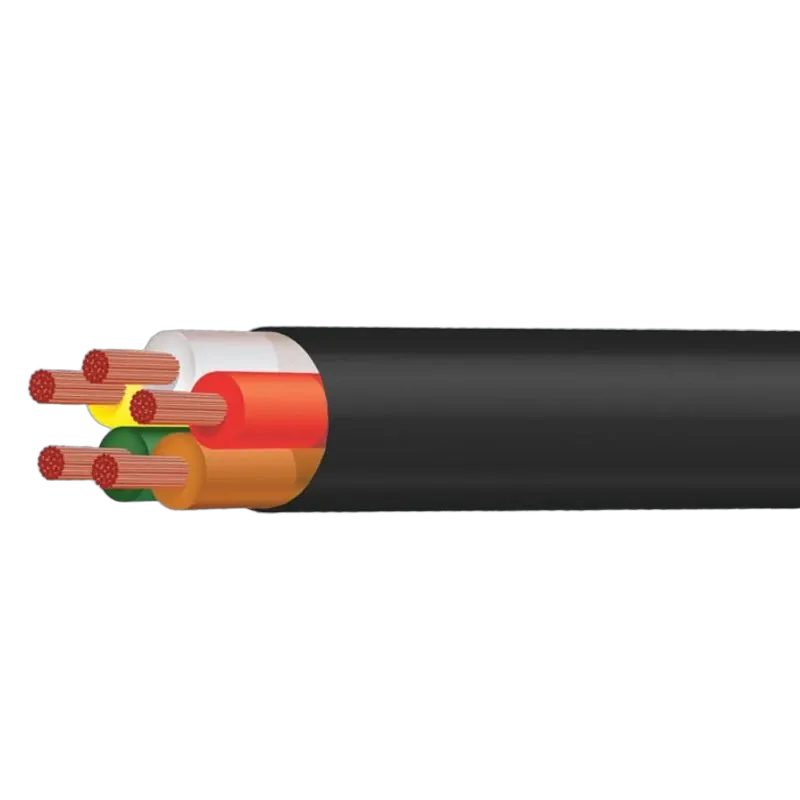

Quality Tycab cable for 12V trailer wiring. Please note: “2.5mm” is Tycab’s industry size name, not the actual copper cross-section. Each core has an actual conductor size of 0.64mm² with 8/0.32 strand construction, 8A nominal rating, and 29.9 ohm/km resistance, giving you the key specs needed to choose the right trailer cable for your setup.
CB025A5 suggested spec block
- Industry size name: 2.5mm
- Cable type: 5 core trailer cable
- Actual conductor area: 0.64mm² per core
- Stranding: 8/0.32 per core
- Nominal current rating: 8A @ 30°C
- Resistance: 29.9 ohm/km @ 20°C
- Insulation thickness: 0.4mm
- Sheath thickness: 0.6mm
- Nominal overall diameter: 6.7mm
- Application: Trailer wiring / 12V trailer wiring
- Five-core cable for trailer circuits
- 2.5mm² copper suits heavier loads
- Buy by the metre for flexibility
- Coloured cores keep wiring straightforward
- Black sheath stands up to road grime
- Conductor size: 2.5 mm² (nominal)
- Number of cores: 5
- Cable type: multi-core trailer cable
- Sale unit: sold per metre
- Brand: Tycab
- Category: Electrical wiring cable
- Short description reference length: 100 m roll
| SKU | CB025A5 |
|---|---|
| Barcode # | OEBC537113 |
| Brand | Tycab |
| Shipping Weight | 0.0600kg |
