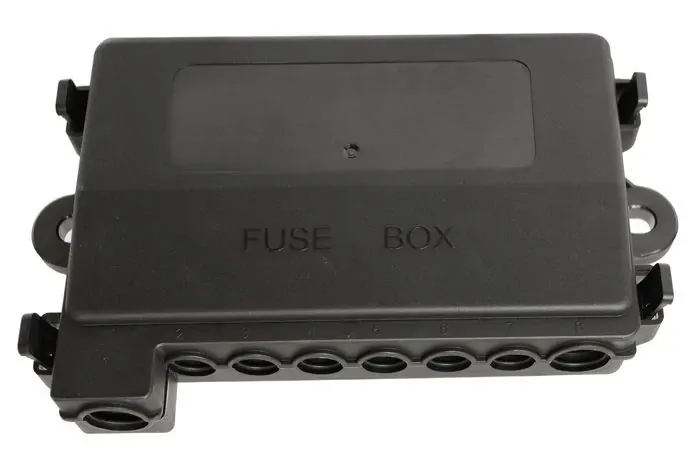

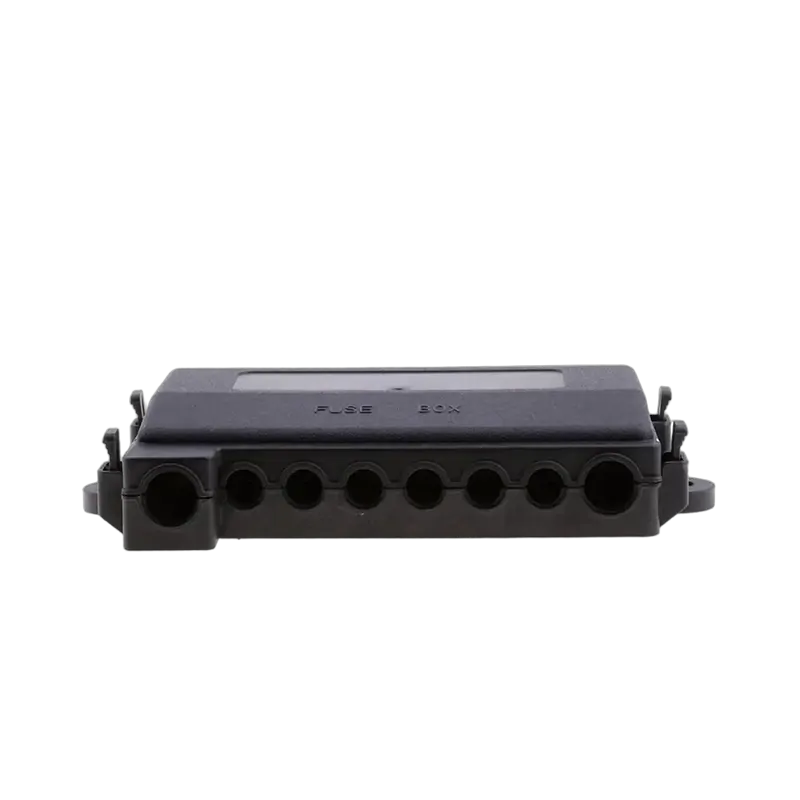

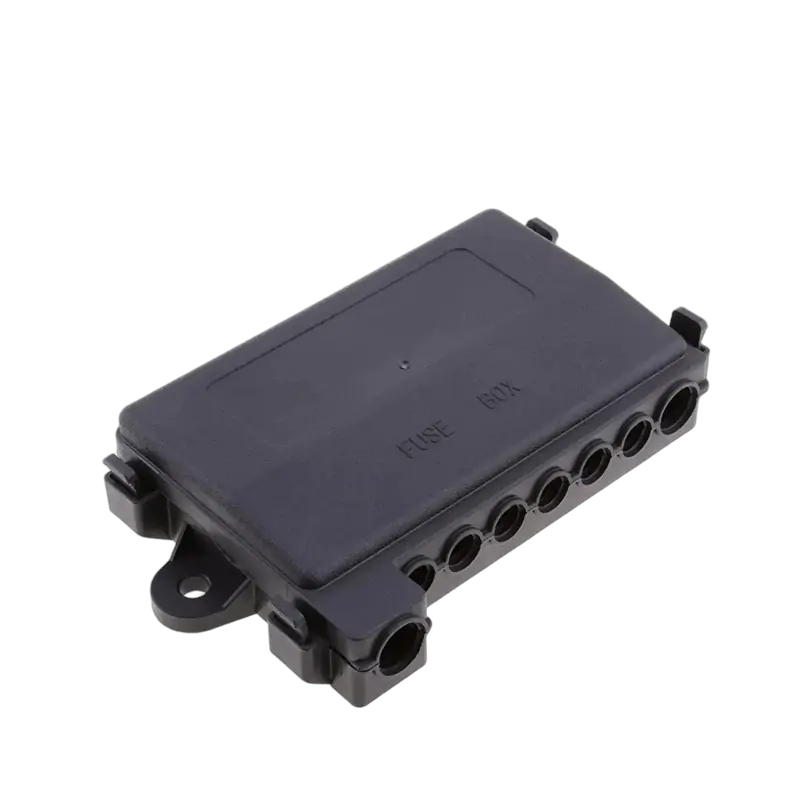

This VES Midi & Mega Fuse Holder brings one MEGA slot rated 40–250 A together with seven MIDI slots rated 30–150 A, so you can run a main feed and branches from one block. With a compact footprint of 165 x 109 mm and a height of 36 mm, it works well on a canopy board or in a van fitout where space is tight but current draw is high.

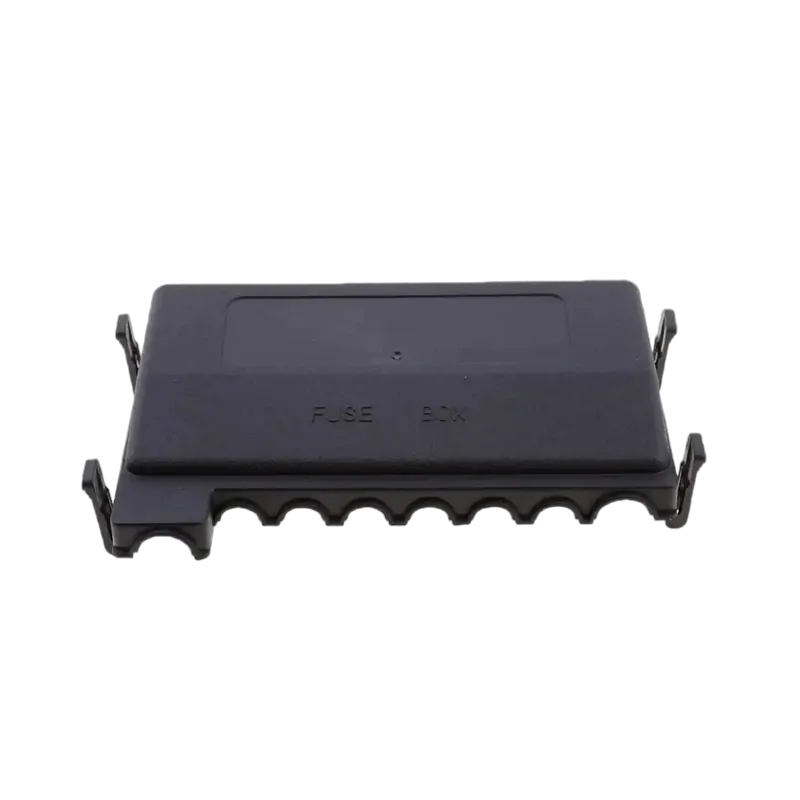

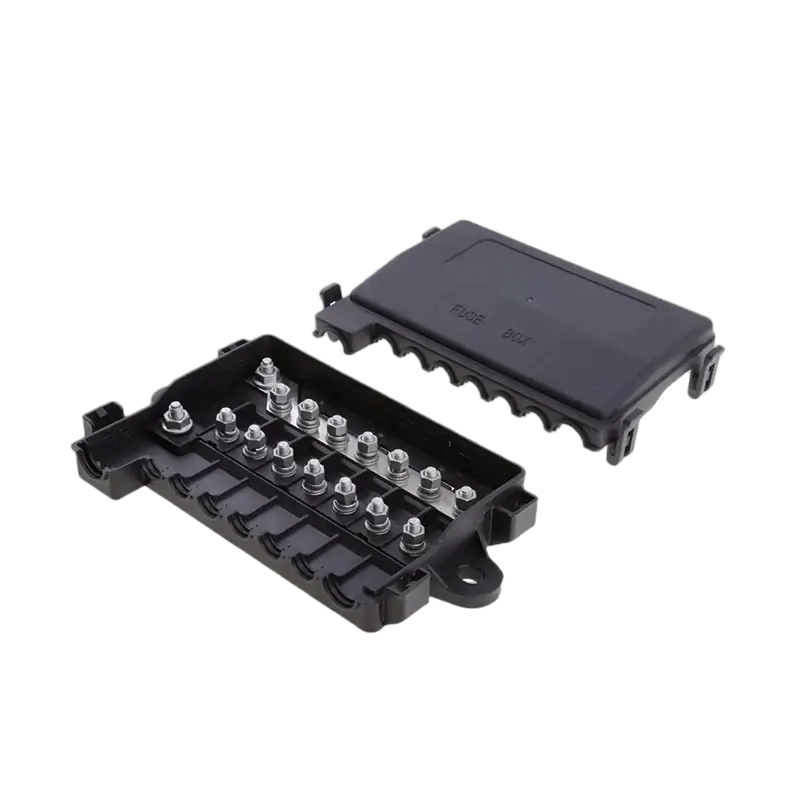

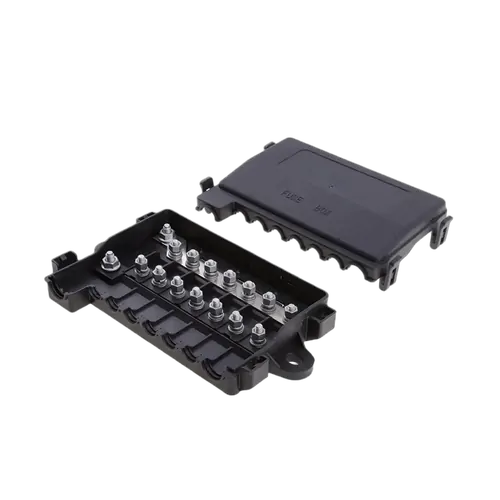

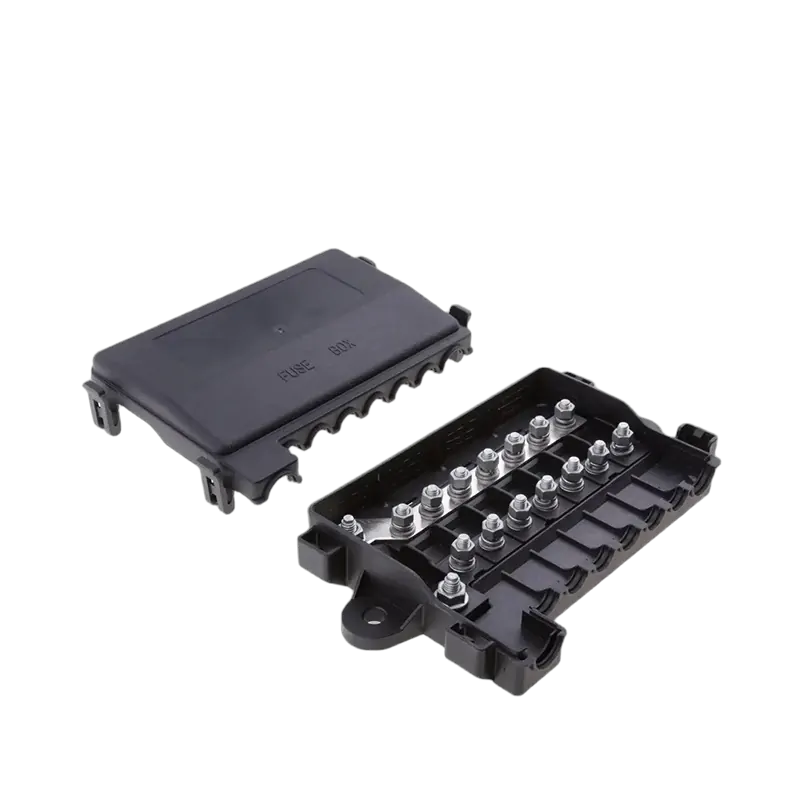

The housing is tough polymer at 165 x 109 x 36 mm with a clip-on lid that keeps the 6 mm stud hardware covered yet accessible for checks. The linked bus bar means the seven MIDI circuits take power straight from the MEGA-fed rail, so one input cable at up to 250 A can support separate loads from 30 A upwards, which suits winches, fridges and chargers in Aussie heat and dust.

• VES linked MEGA and MIDI fuse holder
• One MEGA slot rated 40–250 A
• Seven MIDI slots rated 30–150 A each
• Continuous current rating of 150 A (CCT)
• Compact 165 x 109 x 36 (H) mm housing
• 6 mm stud connections on MIDI positions
• Linked bus bar distributes MEGA feed to MIDI
• Bolt-on base with integrated mounting ears
• Clip-on protective cover over all fuses
• Suitable for 12 V and 24 V DC circuits

Q: Are fuses supplied with this VES Midi & Mega Fuse Holder?

No, fuses are not supplied with this fuse holder. You select MEGA fuses between 40–250 A and MIDI fuses between 30–150 A to match each circuit. This lets you size protection to your cabling and loads. It also keeps the kit flexible for new accessories. Always match fuse ratings to cable capacity and manufacturer guidance.

Q: Can this fuse box be used on both 12 V and 24 V systems?

Yes, this fuse box is suitable for 12 V and 24 V DC systems. The unit is a passive holder using MEGA and MIDI bolt-down fuses, which are commonly rated for these automotive and marine voltages. The key limit is the current rating of up to 250 A on the MEGA position and 150 A on each MIDI position. Always confirm your selected fuses are rated for the system voltage used.

Q: What cable terminations fit the studs in this fuse holder?

The fuse holder uses 6 mm stud connections. You will need ring terminals sized to 6 mm (approximately M6) for each cable. This size is common in automotive and 4WD wiring, which makes it easier to match to existing lugs and crimp tools. Ensure your lugs and cable gauge are appropriate for the expected current on each circuit.

Q: Where is the best place to mount this fuse holder in a vehicle?

The best location is a flat, accessible surface away from direct heat and moving parts. Common mounting spots include a canopy power board, a drawer side panel, or an inner guard in the engine bay where temperatures remain moderate. The 165 x 109 mm footprint and bolt ears make it simple to secure with screws or bolts. Keep enough clearance to remove the clip-on lid for inspection and fuse changes.

• Suits 12 V and 24 V DC auxiliary and main distribution circuits
• Commonly used for 4WD, caravan, camper trailer and marine fuse distribution
• Requires compatible MEGA fuses from 40–250 A and MIDI fuses from 30–150 A (not included)
• Connects via 6 mm stud terminals for main and branch circuits
• Mounts to a flat surface using the integrated bolt holes
• Install in an accessible location away from direct engine or exhaust heat
• Use appropriately rated cable lugs sized for 6 mm studs
• Fit fuses to match the cable size and downstream load ratings
