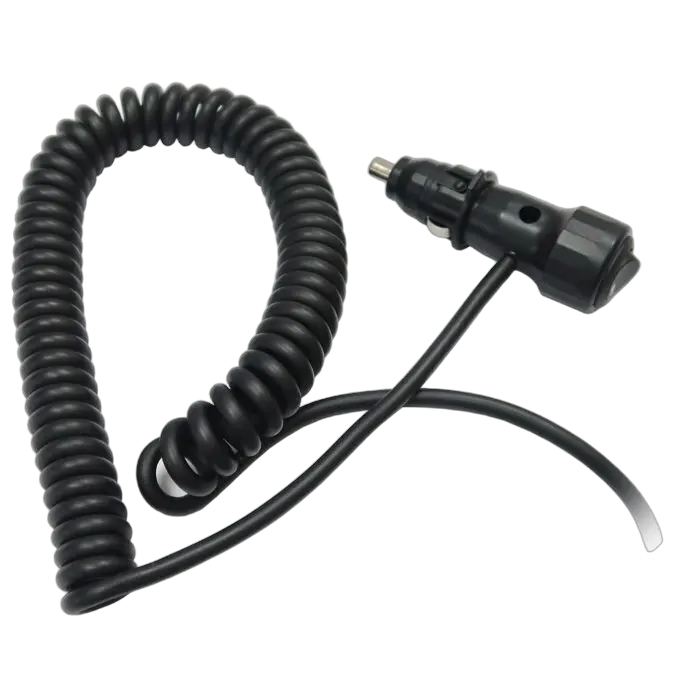

This LV Automotive 12V 8A cig lighter plug with on off switch and 3 m spiral lead keeps your 12 volt gear under control from the driver seat. The LED in the switch shows when the line is live off a standard 12V socket, handy when you are running lights or fans up to 8A. The coiled lead stretches to about 3,000 mm straight, so you can tackle different mounting spots around the cab.

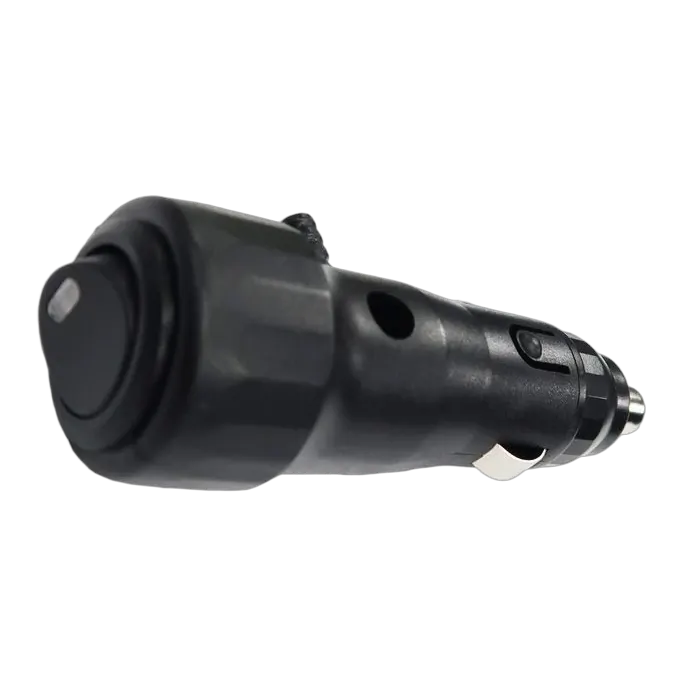

The housing is ABS with a body length of 57.8 mm and rear diameter of 22.9 mm, sized for common vehicle sockets. Nickel plated spring steel contacts hold tight in the socket while carrying up to 8A at 12V DC. The polyurethane cable sits at 5.5 mm outer diameter with a 2.1 mm core and total length of roughly 4,100 mm, giving enough spare cable for tidy routing in Aussie touring rigs.

• 12V cigarette lighter plug with integrated switch
• Rated for up to 8A load at 12V DC
• Red LED indicator shows when power is on
• Approximate 3,000 mm straight spiral lead length
• Overall cable length around 4,100 mm
• Polyurethane cable with 5.5 mm outer diameter
• ABS plastic housing for the plug body
• Nickel plated spring steel contacts for secure fit
• Compact plug length of 57.8 mm for standard sockets
• Suitable for powering low voltage automotive accessories

Q: Can this lead power multiple 12V devices at once?

It can power devices whose combined draw does not exceed 8A at 12V. You can use it with a small distribution block or a single accessory if the total current stays within 8A. Always add up the current draw listed on each piece of gear before plugging in. If the total exceeds 8A, use a higher rated circuit instead. This helps protect the wiring and the socket from overload.

Q: Does the LED stay on whenever the plug is in the socket?

The LED only lights when the on off switch is in the ON position. When the switch is OFF the circuit is open and the LED is off, even if the plug remains inserted. This makes it simple to see at a glance if the accessory circuit is live. It also helps you avoid leaving small loads connected when the vehicle is parked.

Q: Is the spiral cable long enough to reach from the dash to the rear seat area?

The lead stretches to around 3 m straight length. In many vehicles this is enough to run from a front 12V socket to gear sitting on the rear seat or floor. The coiled design means it retracts when not under tension. Actual reach depends on socket location and how much stretch you apply to the coil.

Q: What type of accessories suit the 8A rating?

The 8A rating suits low to moderate draw 12V gear. Typical examples include small LED camp lights, USB chargers rated under a few amps, and clip on fans with modest current draw. High draw gear like large air compressors or inverters can exceed 8A and are better run from dedicated wiring. Always match your gear current rating to the circuit capacity.
