Description
Specifications

The ideal solution for protecting expensive deep cycle batteries from over-discharge. Automatically disconnects the load when the LVD detects the voltage has dropped to the disconnection point, ideal for 4WDs, camper trailers and smaller caravan applications.

SPECIFICATIONS

PRODUCT DETAILS		THERMAL CUTOUT	65^o
PART NO.	LVD30	ENVIRONMENTAL PROTECTION	IP65
INPUT VOLTAGE	10–16V	CURRENT DRAW	10mA

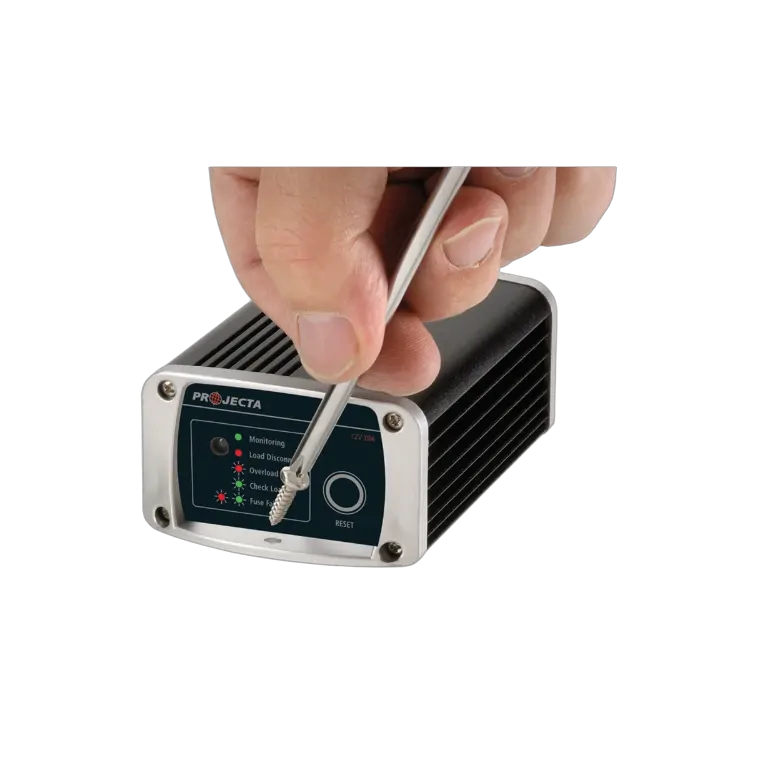

OUTPUT CURRENT	30A	L.E.D LIGHT INDICATION
CONTROL TYPE	MOSFET	GREEN LIGHT ON	OK – monitoring

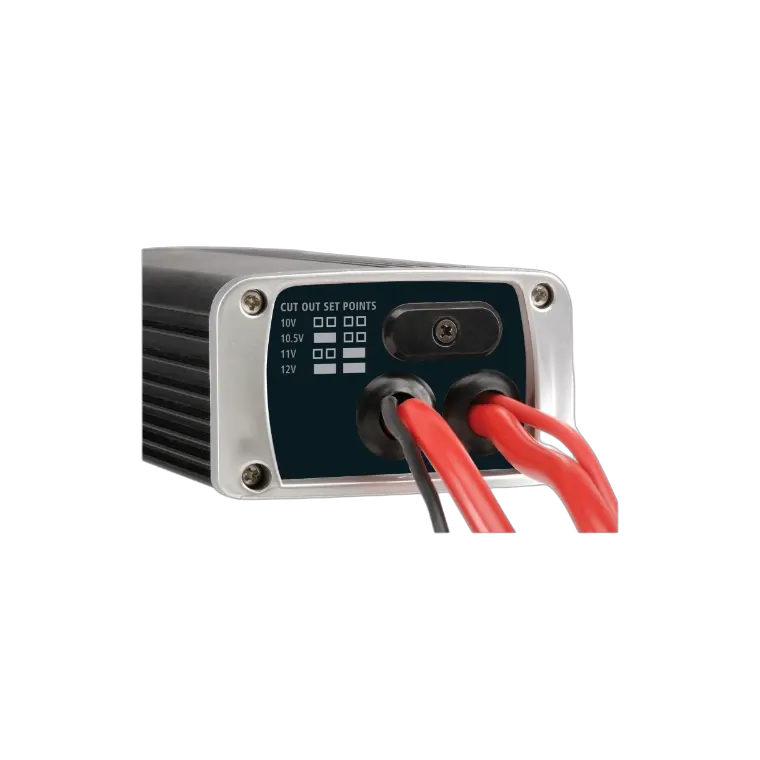

DISCONNECT VOLTAGE SETPOINTS	10.0V, 10.5V, 11.0V, 12.0V	GREEN LIGHT FLASHING	LVD overloaded and running check loads
CUT-OUT DELAY	1 minute	RED LIGHT ON	Load disconnected
RECONNECT VOLTAGE	13.0V	RED LIGHT FLASHING	Overload
FUSE PROTECTED	30A (1 x 30A)	RED/GREEN LIGHT FLASHING	Check fuse
REVERSE POLARITY	Built-in	OFF	No power to LVD

Specifications

SKU	LVD30
Barcode #	LVD30
Brand	Projecta
Shipping Weight	5.0000kg

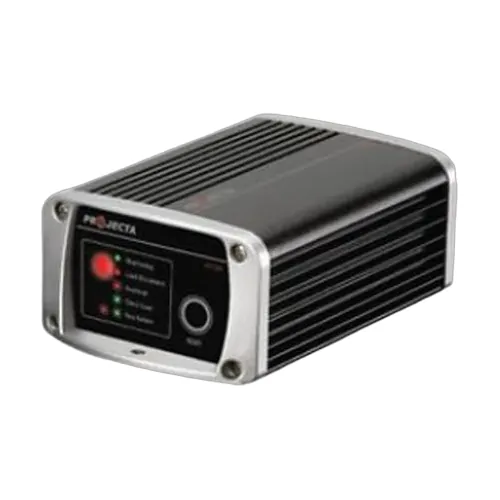

12V 30A Low Voltage Disconnect

SKU: LVD30

$110.99 MATES’ RATE

Unlock Mates'Rate and Save. Login or Join Free

SAVE $28.01

REG $139.00

Earn 1,100 GEAR'd Points

FINAL DAYS - Black Friday Sale Ends Monday

Ships in 7 days

$139.00 REG

$110.99 MATES’ RATE
