Description
"
Features
When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.
Additionally, the ePOWER VSR range offers features like :
- No voltage loss
- Intelligent battery monitoring to prevent unwanted switching
- Starter battery priority
- Bipolar switching
- Voltage dependent switching
Applications
- Marine
- Caravans
- Camper vans
- RV’s
Specifications
| EN-VSR1224-160 | |
|---|---|
| Auto Voltage Detect | 12 / 24V |
| Continuous Current (A) | 160 |
| Connect Voltage (V) | 13.2 / 26.4 |
| Disconnect Voltage (V) | 12.8 / 25.6 |
| Standby Current | <3mA |
| Connection for remote on / off | Yes |
| Micro switch for remote status indication | LED |
| Weight (kg) | 0.47 |
| Dimensions L x W x H (mm) | 108 x 72 x 58 |
Specifications
| SKU | EN-VSR1224-160 |
|---|---|
| Barcode # | EN-VSR1224-160 |
| Brand | Enerdrive |
| Shipping Weight | 0.1100kg |
| Assembled Length | 0.050m |
| Assembled Height | 0.080m |
| Assembled Width | 0.050m |
SKU: EN-VSR1224-160

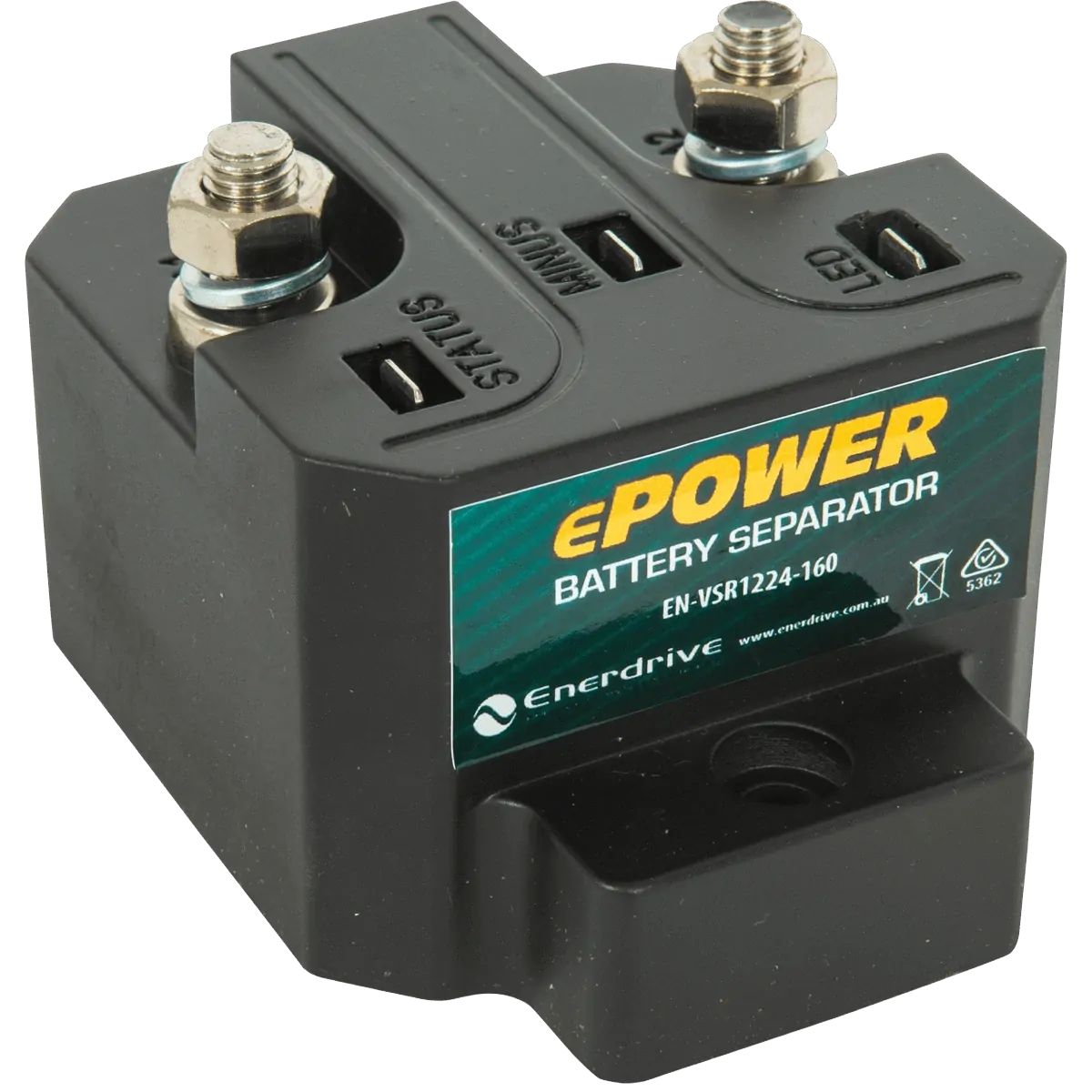

Enerdrive 12V-160A/24V-160A Dual Vsr Relay
