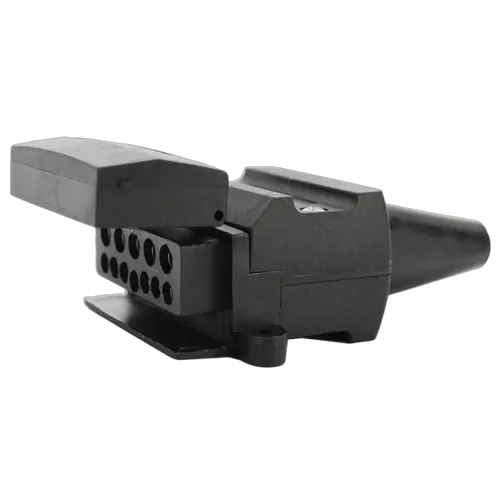

This LV Automotive 12 Pin Flat Trailer Socket lets you run tail lights brake lights and extra circuits through one neat plug when you tow. The flat 12 pin layout suits trailers and caravans that need separate feeds for fridge power battery charge or electric brakes alongside the usual light circuits. The socket body gives the plug a stable mount on the drawbar so the wiring stays tidy instead of dangling. The housing uses a solid plastic shell with nickel plated terminals and stainless screws so it stands up to wet roads and dusty tracks. The plated contacts handle regular connect and disconnect cycles without chewing out like soft bare brass can. The stainless fittings mean you are not snapping off rusted hardware after a season near the coast. The flat base suits a simple two bolt mount so you can swap out a worn socket without changing brackets.

• LV Automotive 12 pin flat trailer socket
• Supports lighting and auxiliary trailer circuits
• Nickel plated terminals for improved corrosion resistance
• Stainless steel screws supplied for mounting and clamping
• Flat base for straightforward drawbar or bracket mounting
• Hinged cover protects 12 pin face when not in use
• Suits matching 12 pin flat trailer plugs
• Compact plastic housing suitable for light trailers and caravans
• Ideal for upgrading from basic 7 pin connections
• Single socket supplied per pack

Q: Is this socket suitable for use with electric brake controllers?

Yes, this 12 pin flat socket can carry electric brake controller circuits. A standard 12 pin layout has dedicated positions for brake control, auxiliary power, and lighting circuits. Your installer can wire the pins to match your tow vehicle brake controller output. Always follow an appropriate wiring diagram for your vehicle and trailer combination.

Q: Can I replace an existing 7 pin socket with this 12 pin flat socket?

Yes, it can replace a 7 pin socket if you also upgrade the trailer plug to a matching 12 pin flat type. The extra pins then allow additional circuits such as reverse lights or fridge power. The mounting pattern is usually similar but may need new holes drilled in the drawbar plate. Check clearance so the longer housing does not foul other fittings.

Q: Are the terminals suitable for standard automotive trailer cable sizes?

Yes, the screw terminals are intended for common automotive trailer cable conductors. Most trailer wiring looms use copper cores from around 1 mm² up to 4 mm² depending on the circuit. The clamping style suits these sizes without special lugs. Always ensure each conductor is fully inserted and firmly tightened in the terminal.

Q: Does this socket include a protective cover over the pins?

Yes, the housing includes an integrated hinged cover. The cover shields the 12 pin face from dust and moisture when the trailer is not plugged in. This helps keep the nickel plated contacts cleaner between trips. Always close the cover before travelling without the plug connected.

Suitable for 12 pin flat trailer wiring set-ups where a matching 12 pin flat plug is used on the tow vehicle or trailer. Mounts to a trailer drawbar or bracket using the integrated base plate and stainless steel screws. Fits standard 12 pin flat trailer wiring configurations commonly used for towing lights and auxiliary circuits. Always match pin layout to your existing plug and wiring diagram during installation.
