The Sony AX1000 is the entry level in-dash audiovisual system to beat. It ticks all the necessary boxes and, arguably, none of the non-essential superfluities. It all starts with a large 157mm touchscreen display, which provides effortless control of the intuitive graphic user interface. Best of all, and unlike many units several times it’s price, you get a proper analogue rotary dial for volume control. This too often overlooked feature is an ergonomic must, and a damn sight better than smashing buttons every time you want to adjust the volume up or down.

• Apple Carplay, Bluetooth Connectivity
• 6.2" Touchscreen (800 x 480)
• Voice Command for Apple Carplay
• Quick Wake-up time 2.5 times faster than current range
• 4x 55w Dynamic Reality AMP 2
• 10 Band EQ, Extra Bass
• 3 Pre Outs (2v), Front USB, Front AUX
• Selectable Background Colour
• Rear View Camera Input
• Space Saving Chassis Design
• MP4, WMV, FLV, MKV Video Files
• WAV, MP3, WMA, M4A, FLAC Audio Files
• External Microphone & Remote Control

Sound meets safety and effortless usability

Enjoy intuitive and simple control for every journey, with a responsive 15.7 cm diagonal (6.2 inch) touchscreen display that wakes up two and a half times faster than previous models, and Apple CarPlay connectivity.

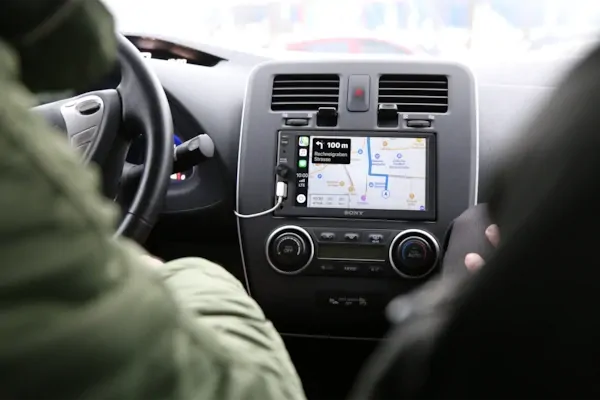

Smarter driving with intelligent voice control

Apple CarPlay makes it easier than ever to navigate, communicate and play music on the road. Just connect your iPhone to the XAV-AX1000 to see everything you need on the large touchscreen.

Siri with Apple CarPlay

Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

Your personal navigator

Get directions in real time without ever taking your hands off the wheel. Easily navigate to your destination, or search for stopovers mid-journey.

Clear, responsive touchscreen
Everything you need is a quick tap away, thanks to the 15.7 cm diagonal (6.2 inch) full-colour touchscreen. It wakes up two and a half times faster than previous models, so you can get on the road in no time.

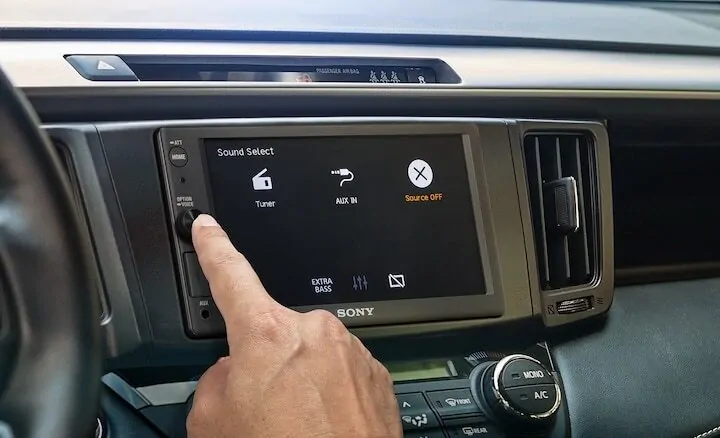

Turn or push to control
The ergonomic rotary dial makes operation distraction-free. Turn it to control volume, or push the integrated button to launch sound control menus. Alternatively, hold the button to use voice commands.

Hear music your way
Multiple customisation options let you adapt the audio experience to your liking. And with the built-in 4 x 55W amplification, music sounds clear even at high volumes.

Powerful, clear amplification
Advanced signal processing from the 4 x 55W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed. Even when you crank up the volume.

Music that jumps from your dashboard
Sound waves are directional, so if your speakers are in your doors or under your dash, the audio may seem muddy or unclear. Dynamic Stage Organiser adjusts the signal, improving the stereo positioning so music sounds like it's coming from the dashboard.

Sculpt your sound
Tailor the sound to your personal preference with the 10-band graphic equaliser.

Build your own sound system
With the three pre-outs, you can add components of your choice, like extra amplifiers and subwoofers.

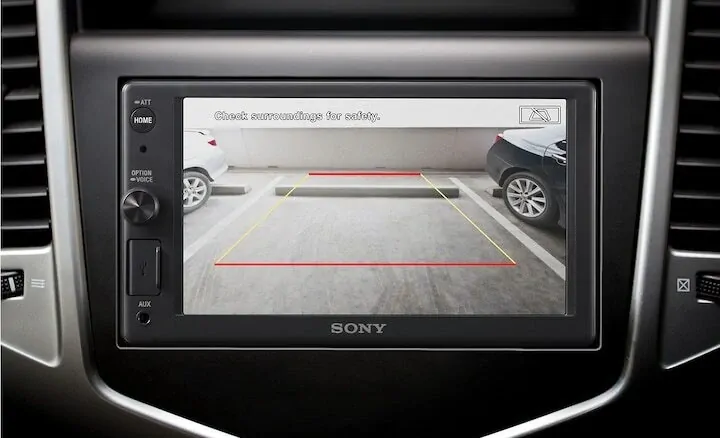

Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customisable guidelines that help you back in safely.

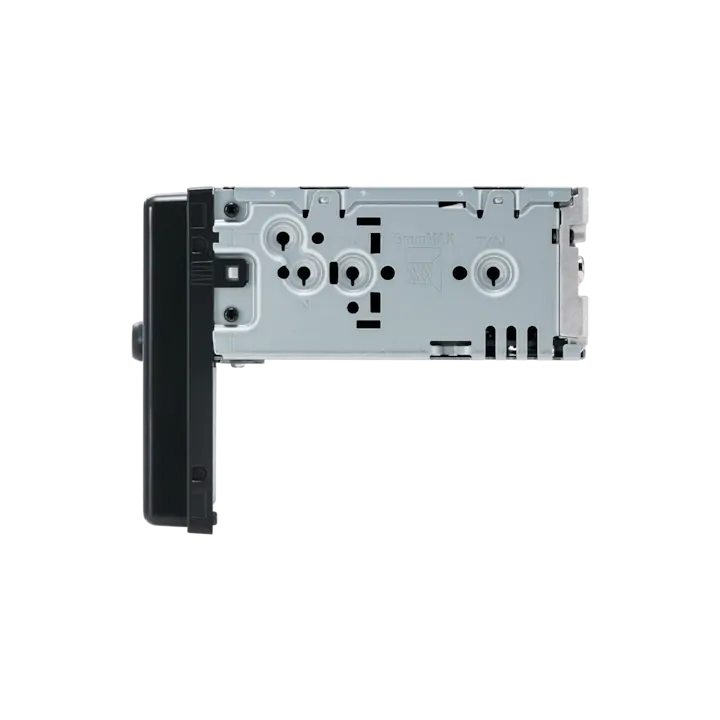

Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.

Control everything simply on the road, so you can safely focus on driving. Voice control from Apple CarPlay helps with directions, calls and more. The large, clear touchscreen wakes up two and a half times faster than previous models and gives you intuitive control over your music and smartphone functions.

• Voice control with Apple CarPlay

• Rear view camera ready for easy parking

• EXTRABASS adds low-end power

• Create virtual speakers on your dashboard with the Dynamic Stage Organiser

• Rotary volume for easy operation

Size & Weight

DIMENSIONS (W X H X D)

178x100x141mm

WEIGHT

0.9kg



General Features

OUTPUT POWER

55W

PRE OUT

3Pre Out

SUB OUT

Yes

ZONE X ZONE

No

AUX-IN

Yes

REAR VIEW CAMERA IN

Yes

USB

Yes (Front x 1)

NAVIGATION

No

FIRMWARE UPGRADABILITY

Yes

VIDEO OUT

No

TIME ALIGNMENT

No

DSO (DYNAMIC STAGE ORGANIZER)

Yes

EQUALIZER

10Band Graphic Equalizer

EXTRA BASS

Yes (Off / 1 / 2)

ALBUM ARTWORK INDICATION

No

Connectivity

BLUETOOTH®

Yes

NFC

No

Tuner Features

PRESET

FM18 / AM12

AUTO MEMORY

BTM

RDS / EON

Yes (RDS)

Bluetooth Profile

HFP

Yes (1.6)

A2DP

Yes (1.3)

OPP

No

SPP

No

AVRCP

Yes (1.3)

PBAP

Yes (1.1)



Bluetooth Features

SPEED DIAL

Yes (6 memories)

RECENT CALLS (# OF)

Yes

LAST DIALED CALL

Yes (select from the dialed call history)

PHONEBOOK (BUILT IN)

No

PHONEBOOK ACCESS VIA PBAP

Yes

ALPHABETICAL PHONEBOOK SORTING

Yes

AUTO ANSWER

No

RING VOLUME LEVEL CONTROL

Yes

CALL VOLUME LEVEL CONTROL

Yes

EXTERNAL MICROPHONE

Supplied

BATTERY REMINDER

Yes

SIGNAL STRENGTH INDICATION

Yes



Monitor(AVC)

LCD TYPE

TFT Active Matrix

SCREEN ASPECT

16: 9

SCREEN DIAGONAL (INCH / MM)

6.2 inch

RESOLUTION (DOT)

800 x 480

DIMMER

Yes

CONTRAST RATIO

600

BRIGHTNESS

450cd / m2

User Interface

TOUCH PANEL

Yes / Resistive (Not Multi Touch Compatible)

GESTURE COMMAND

Yes

REMOTE COMMANDER

RM-X170

PARKING CONTROL

Yes

ASPECT RATIO SELECT

Yes

REAR VIEW CAMERA-IN MARKER SETTING

Yes
