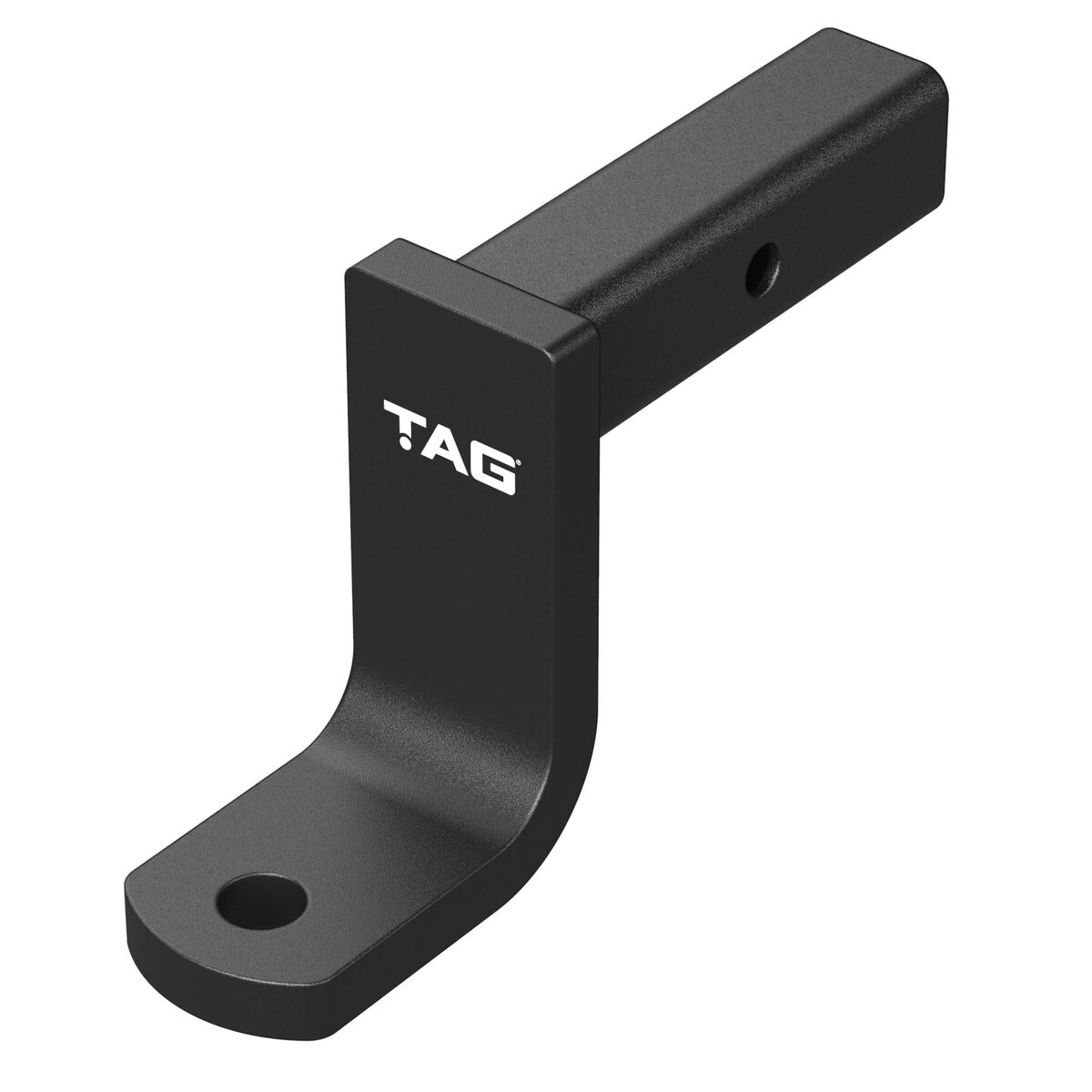

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.
-
193mm Long (Pin to Ball)
-
90° Tongue Face
-
Drop: 125mm
-
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
2500kg Gross Trailer Weight
-
250kg Ball Weight
-
Durable Powder-Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
- Drop forged steel built tough
- Fits standard 50mm square hitch
- 193mm length helps clearance
- 125mm drop levels trailer height
- 2500kg rating for common towing
- Powder-coated to handle Aussie roads

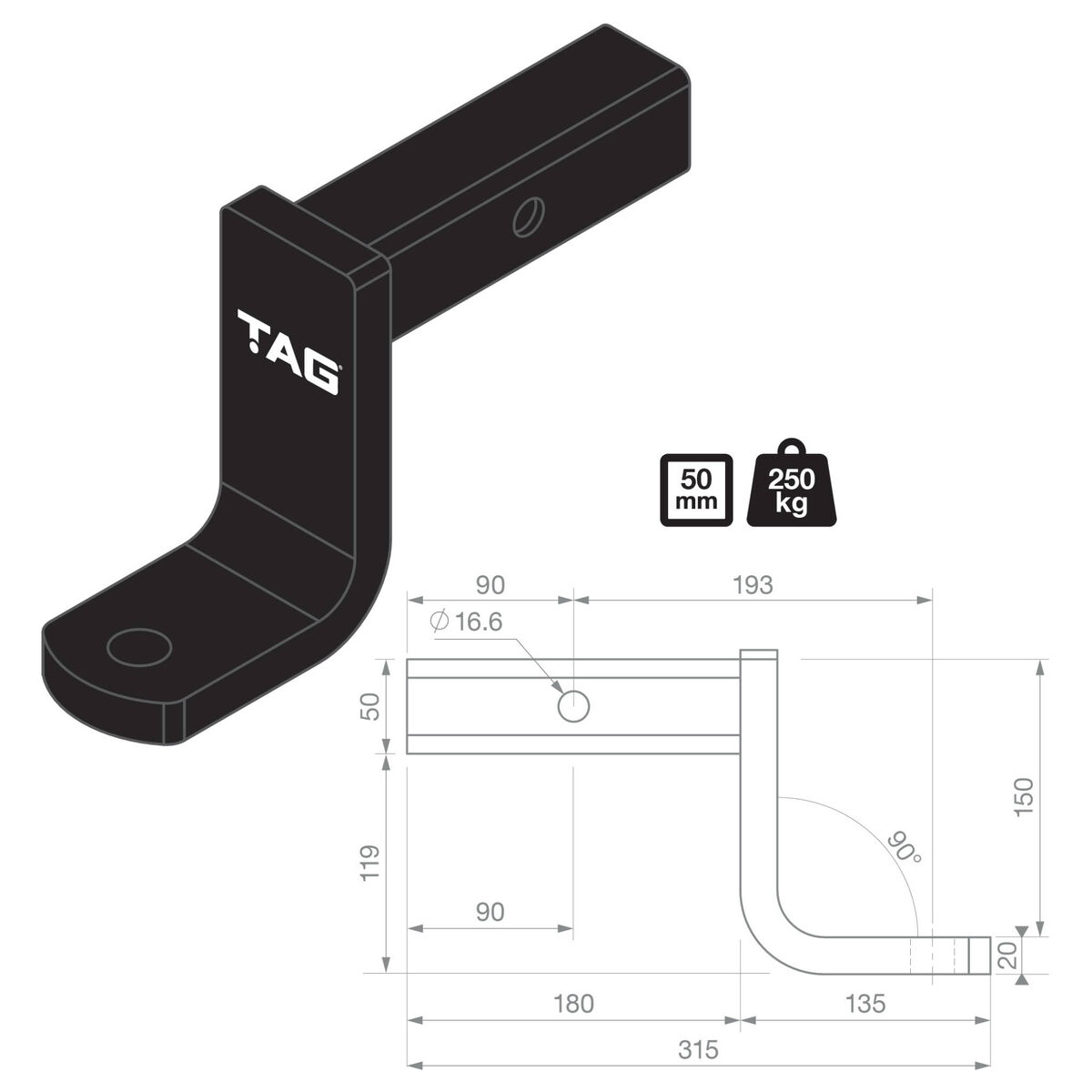

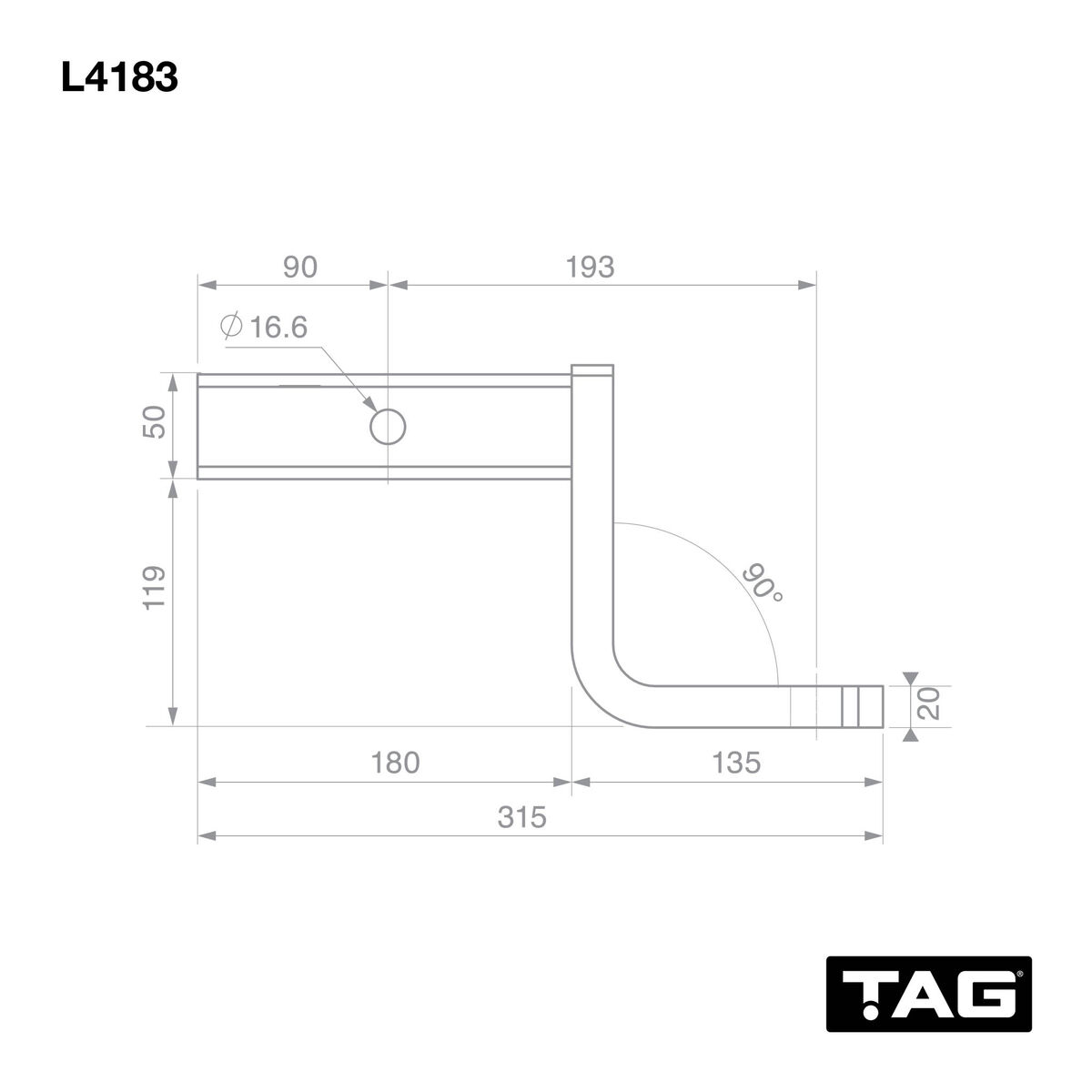

- Tow ball mount length (pin to ball): 193mm
- Tongue face angle: 90°
- Hitch receiver size: 50mm square
- Drop: 125mm
- Gross trailer weight capacity: 2500kg
- Maximum ball weight: 250kg
- Construction: drop forged steel
- Manufacturing: CNC milled and robotically welded
- Finish: durable powder-coated coating
- Compliance: ADR 62/02 compliant
- Marking: batch marked
- Compatibility: suits TAG Heavy Duty Towbar with 50mm square hitch receiver
- Warranty: TAG limited lifetime warranty
- 1 x TAG tow ball mount
Tow Ball, R-Clip & Hitch Pin sold separately.
| SKU | L4183 |
|---|---|
| Barcode # | 9340407045237 |
| Brand | TAG |
| Shipping Weight | 8.0000kg |
TAG Tow Ball Mount - 193mm Long, 90° Face, 50mm Square Hitch
