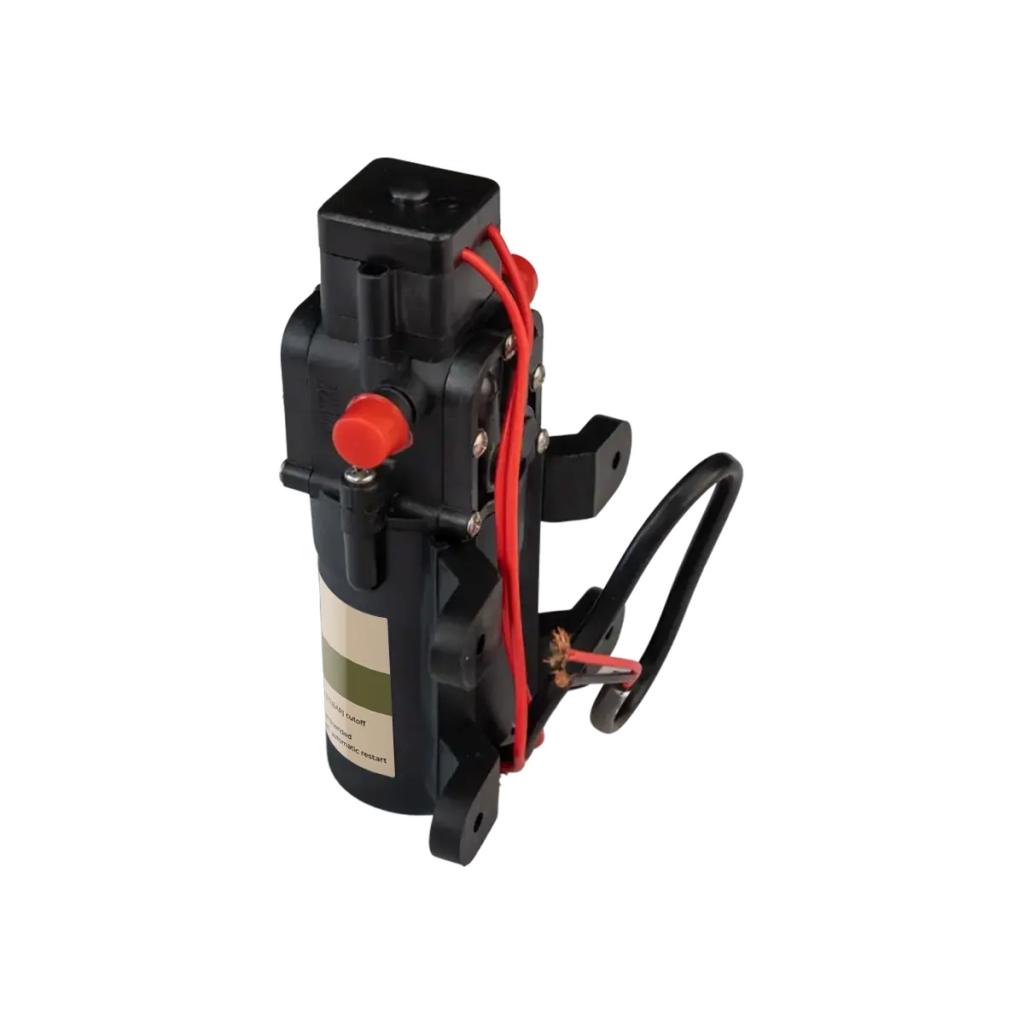

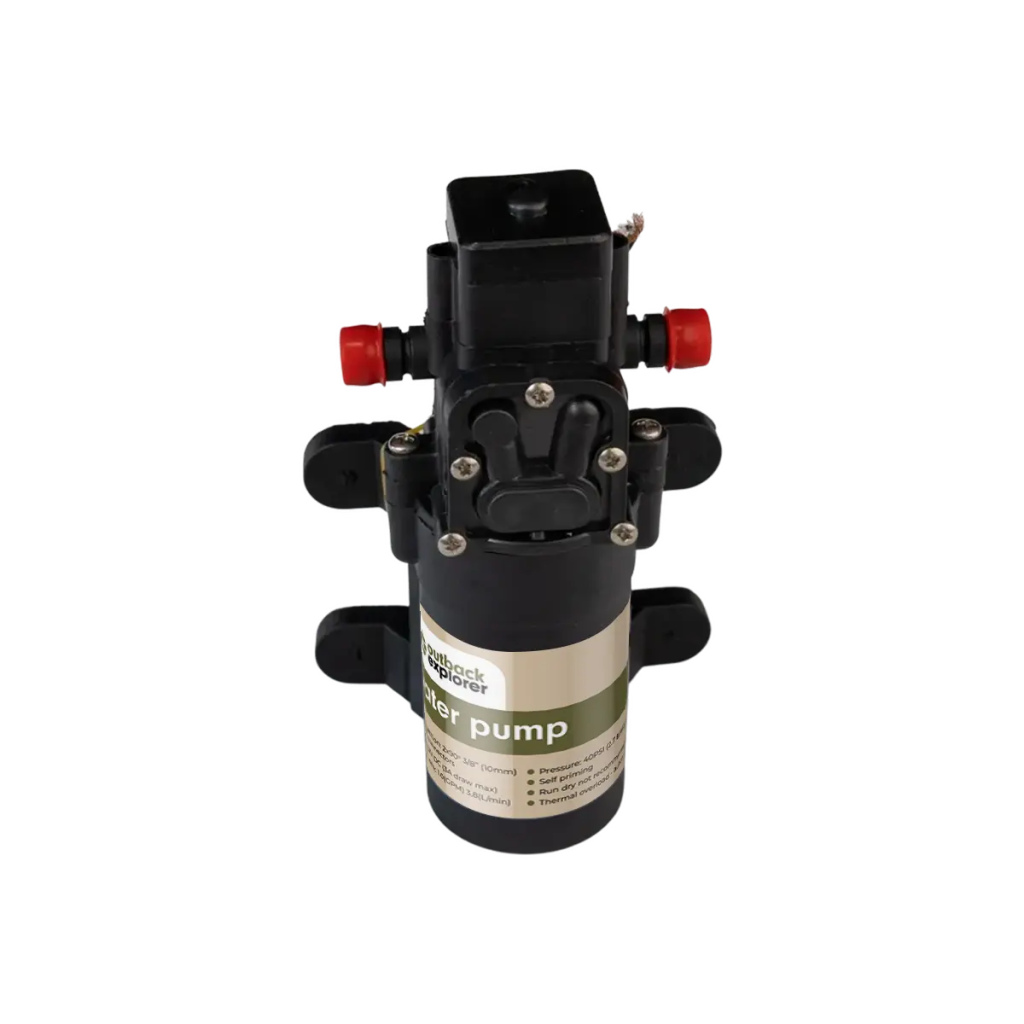

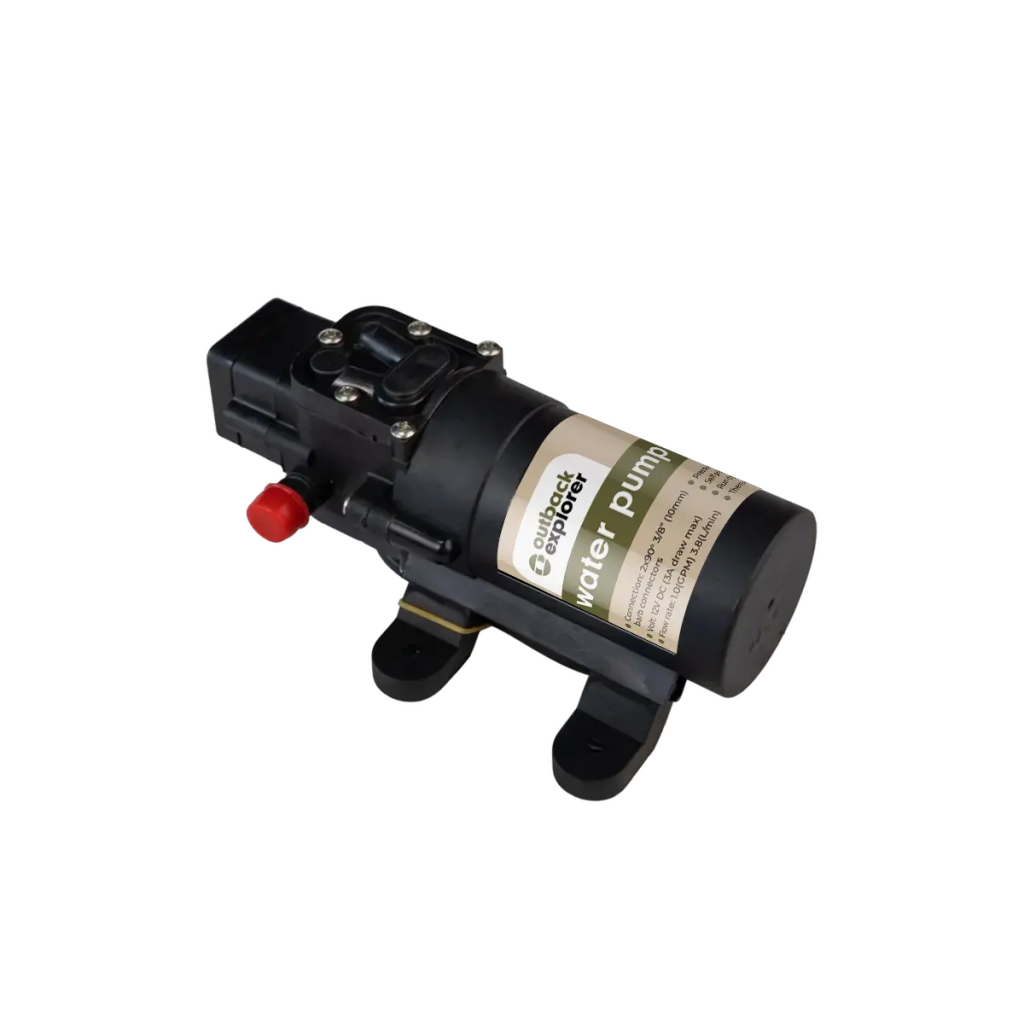

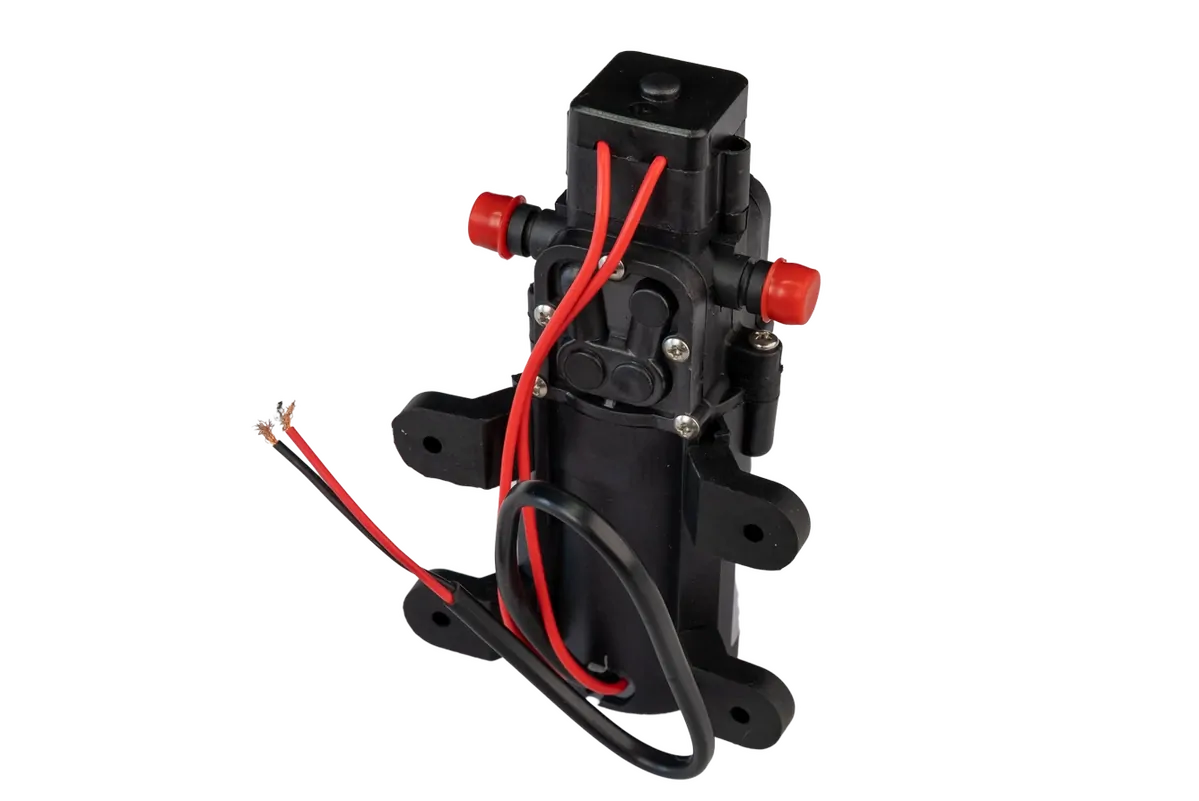

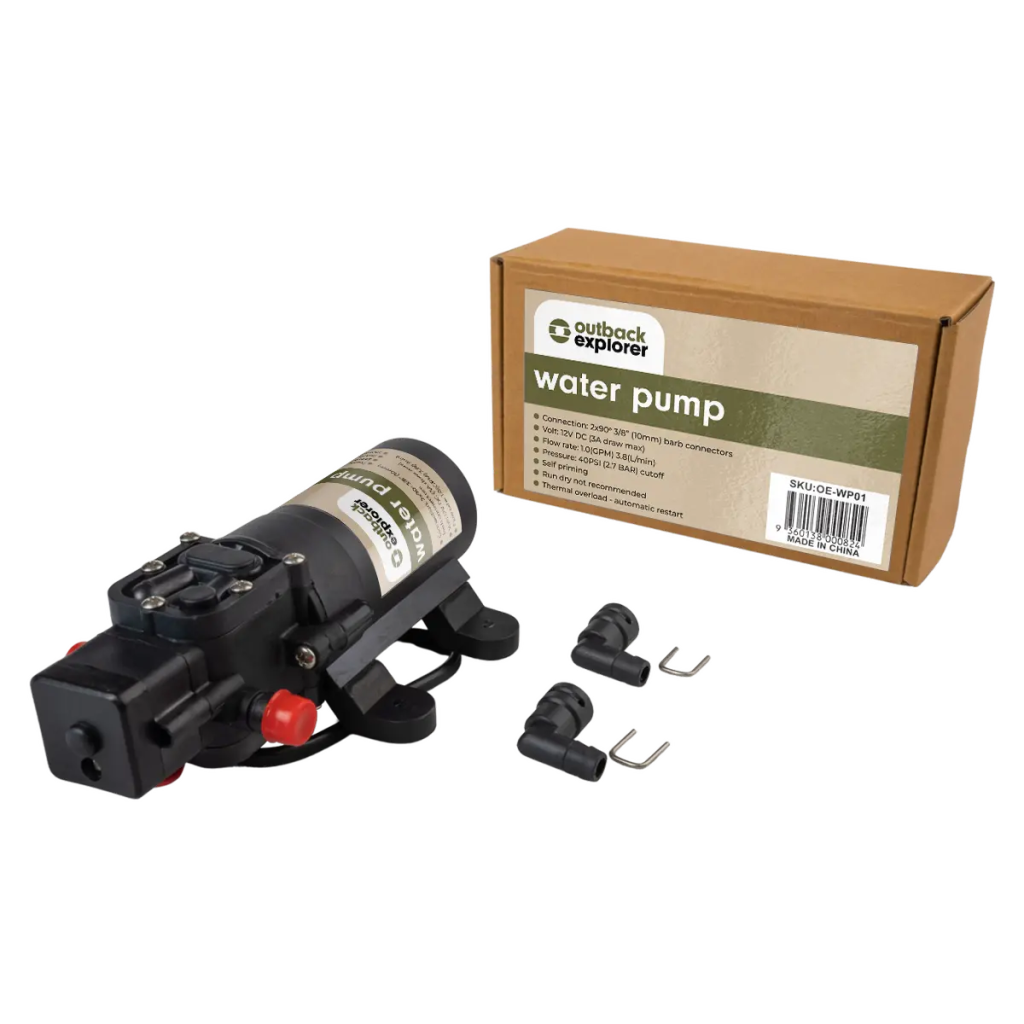

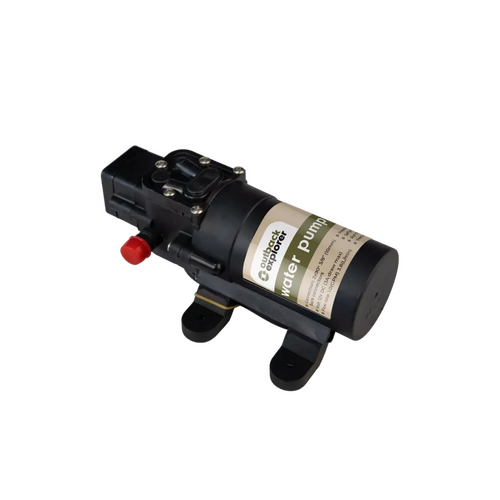

Outback Explorer 3.8L 12v Water Pump

FEATURES OF WATER PUMP

• Stable performance,
• Self-priming, automatic switch,
• Low Noise, corrosion resistant.
• Pump Head 2 chambers
• Flow rate: 3.8LPM
• Max Pressure:  40PSI
• Power draw: up to 3A
• Motor Configuration lead wires 2-pin connector
• Reciprocating Diaphragm made of Santoprene
• Duty cycle: intermittent.
• Housing PP
• Check valve made of EPDM
• Check valve spring: Stainless steel

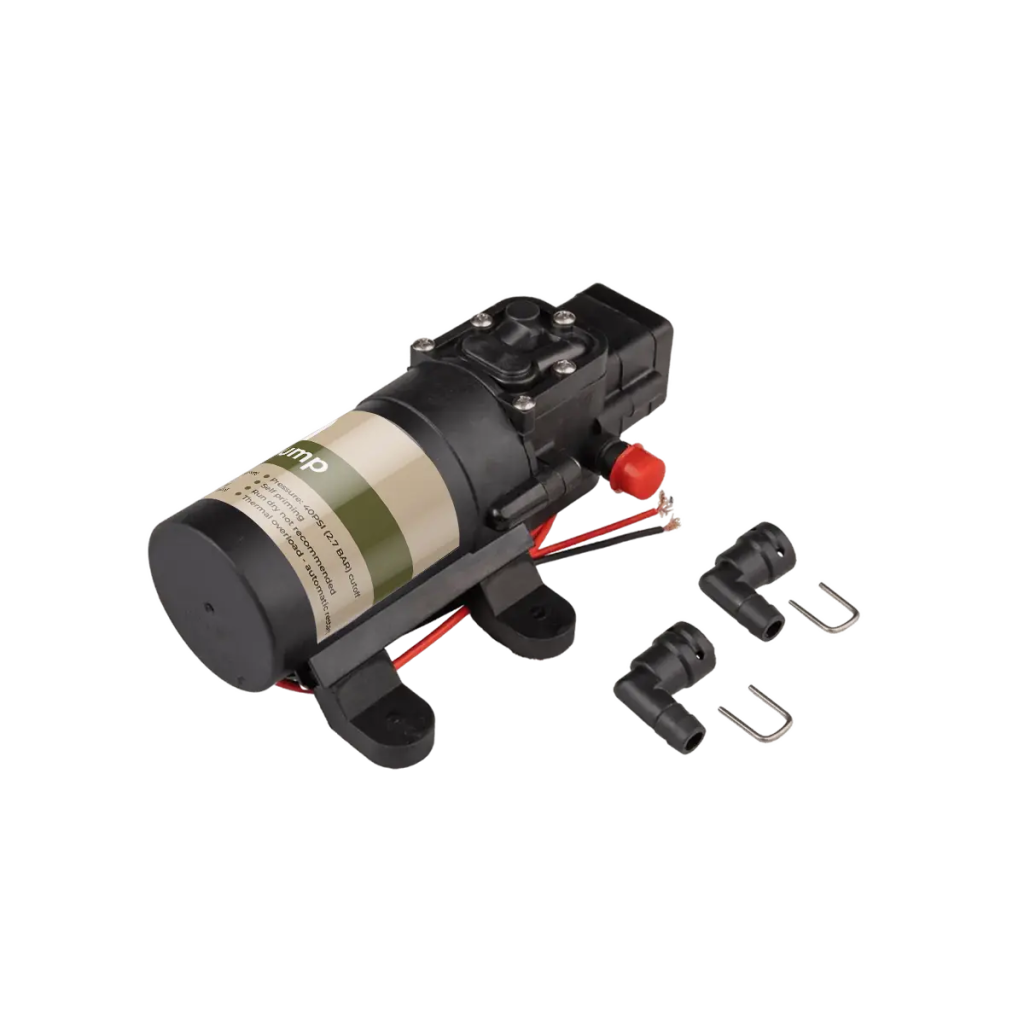

• 10mm OD barbed elbow fittings

• Length: 165mm
• Width: 103mm +/- a few mm
• height: 62mm
• mounting hole spacing: 80x53mm +/- a few mm

 APPLICATION OF ELECTRIC PUMP

• Agriculture/Yacht / RV/Caravan pressurized water system
• Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
• Cleaning machine, Humidifier, Water purification, Medical apparatus
• Food beverage filling & liquid transfer
• Any other pressurization system

  FEATURES OF WATER PUMP

• Small size, Lightweight and Stable performance.
• Special valve for liquid input and output.
• Antivibration pad, easy installation.
• Self-priming, Automatic Pressure Switch.
• Automatic Pressure Protection.
• Low Noise, with excellent resistance to chemical corrosion.

  FUNCTIONS OF DIAPHRAGM WATER PUMP

• High flow rate and low presurre requirements.
• Automatic electric water pump, a working rate 1.8-2.5 meters, max flow rate more than 5 meters.
• Water purification, filter machine, chemical metering and fluid supply.
• Food, Beverage filling and transit are controlled and rolled by a pressure switch.
