LIGHTER. STRONGER. SAFER. SMARTER.

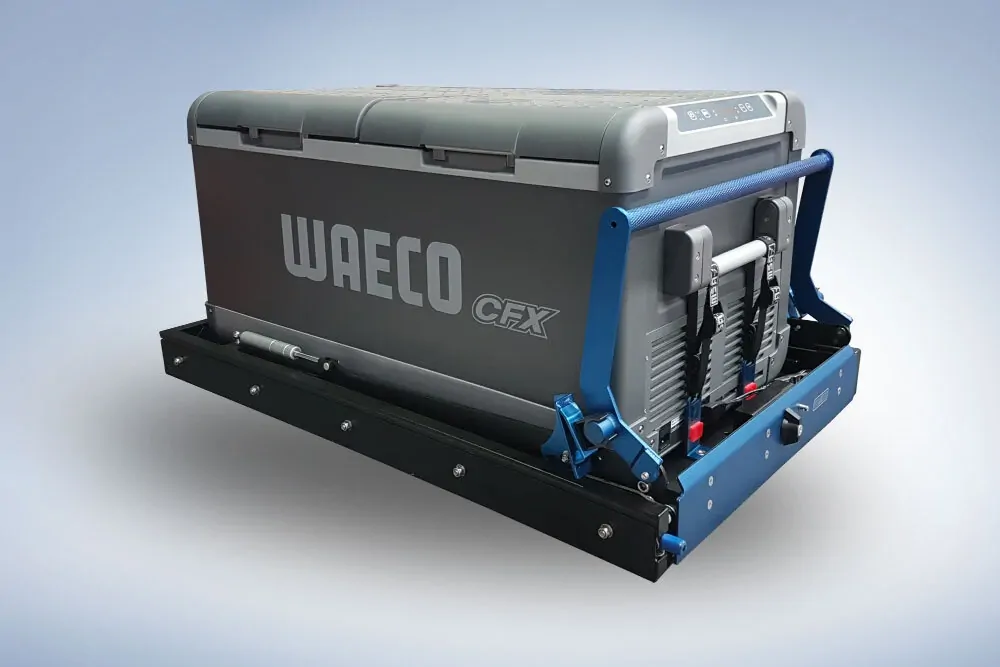

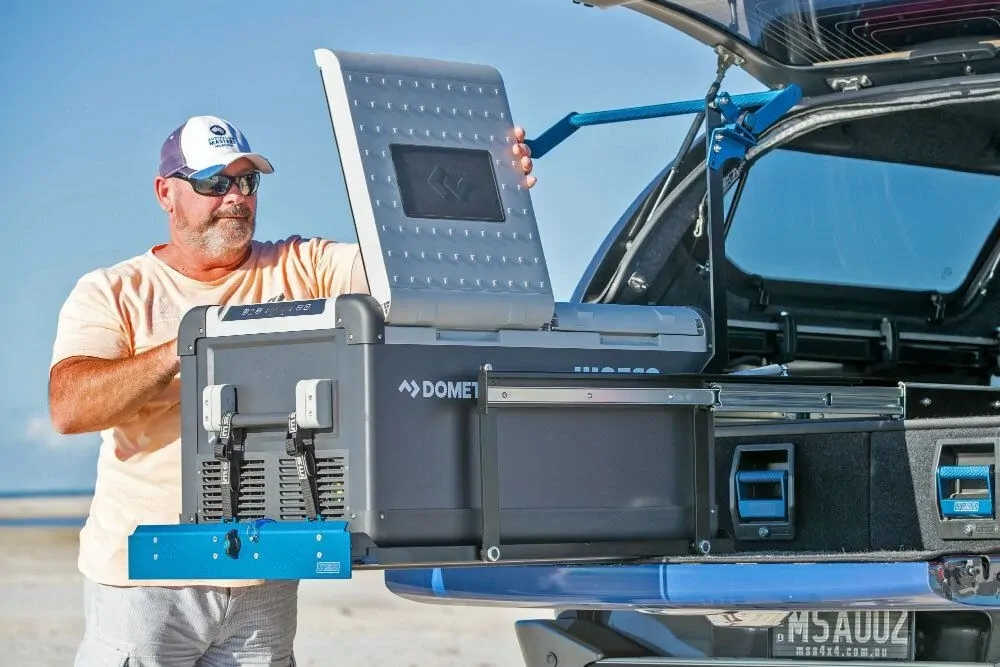

MSA 4X4's DS95 Fridge Drop Slide is an innovative, patented design which allows you to safely lower your fridge, providing easy, convenient access to its contents.

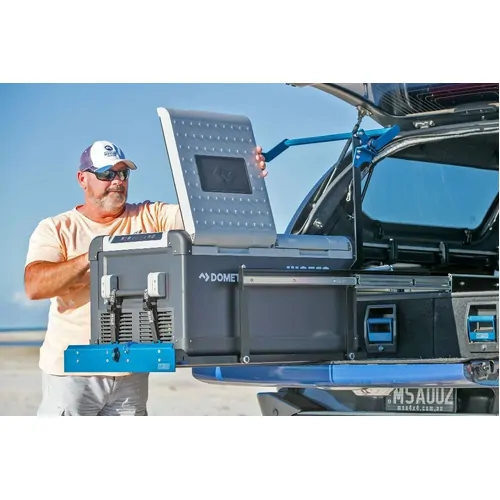

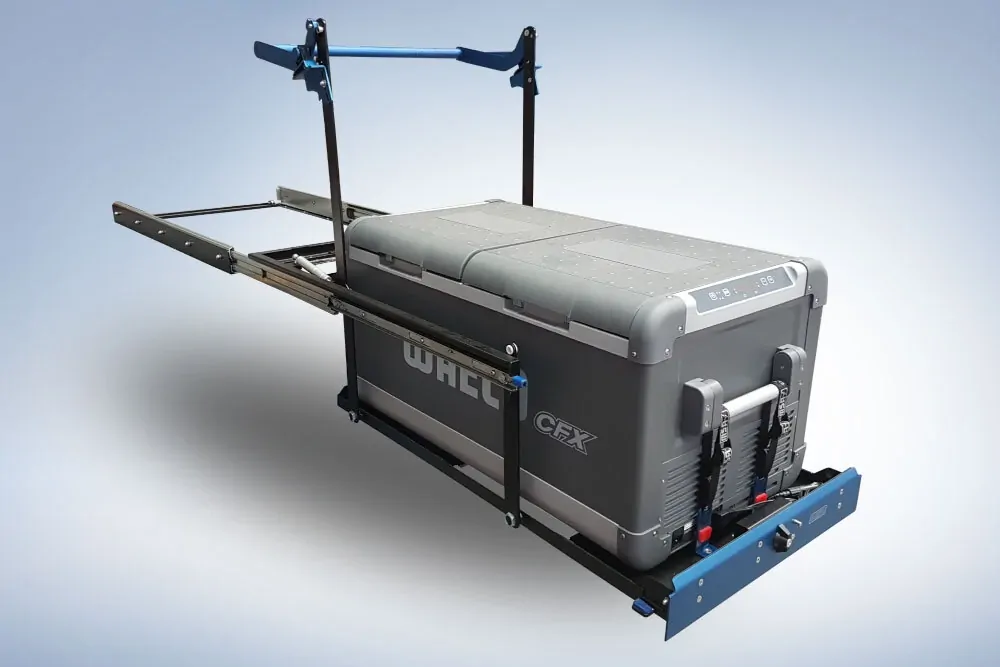

The Drop Slide is designed to slide smoothly out from its stowed position, before lowering 30cm in a safe and easy motion. This allows for the tray to remain in a horizontal position through the entire motion. The DS95 allows for complete access to the front and side of your fridge. It also offers a compact design which will not decrease storage space in your vehicle.

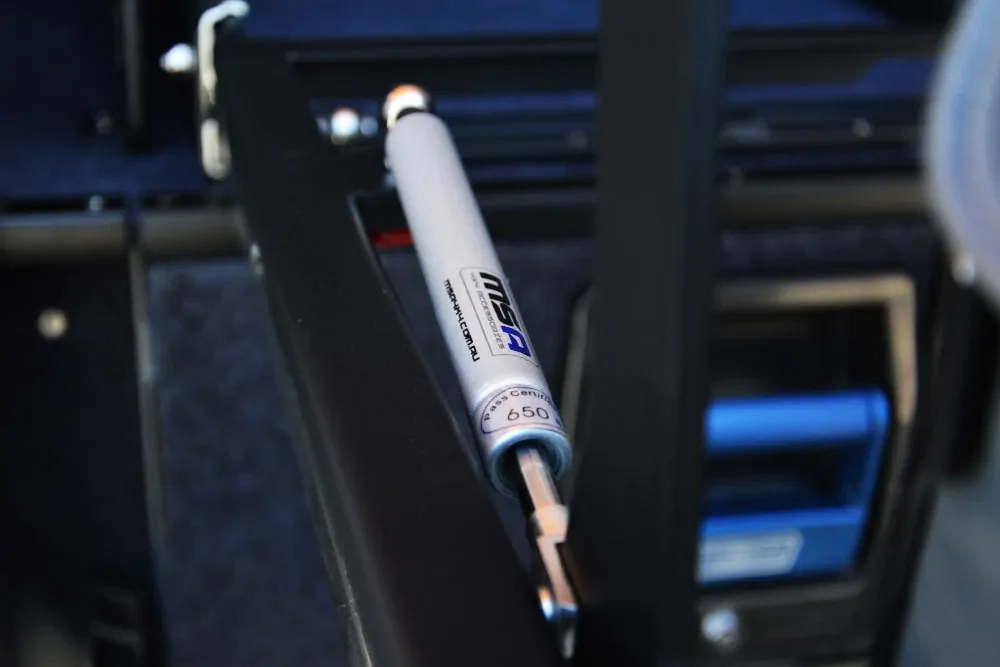

The refined, patented design of our Drop Slides features 670N - 1200N quality gas struts, providing safe, easy lifting and lowering for loads up to an incredible 200kg. Now you can fill your fridge and access it with ease!
Product features:
- Compact size won't decrease storage space in your vehicle.
- No drawer disassembly required to install the slide.

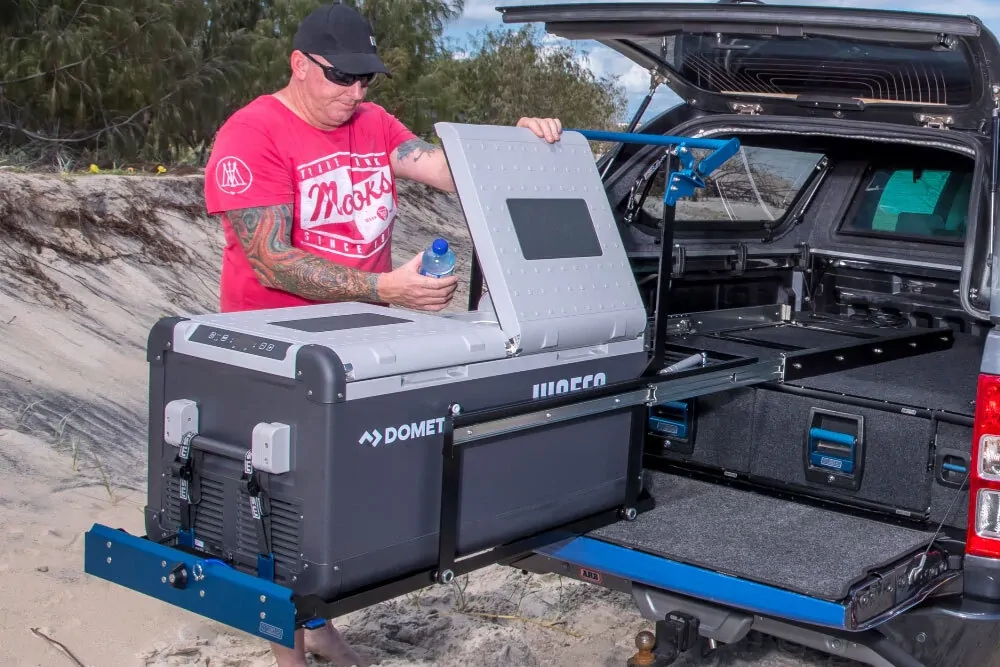

- Designed to swing smoothly out further past the vehicle tailgate, providing easy and convenient access to the contents of your fridge from its complete front and side.

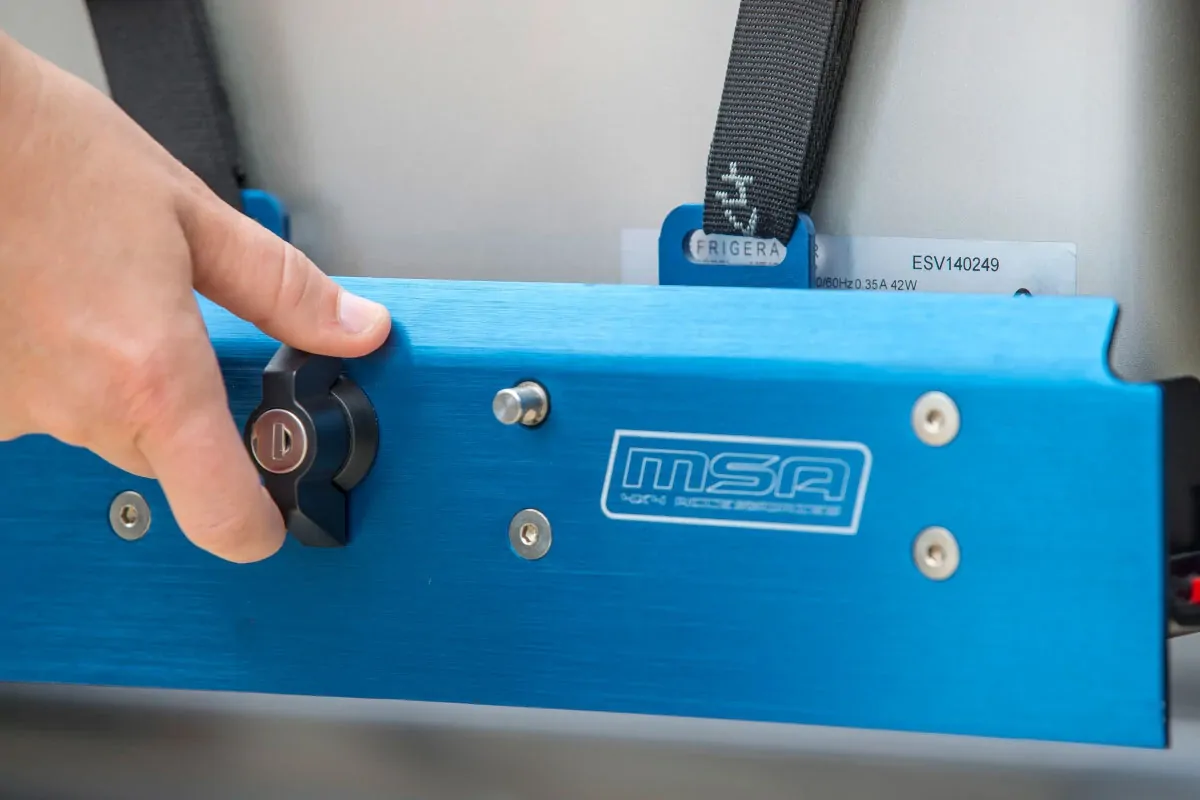

- Unique lock-in lock-out safety feature.
- Heavy duty 200kg slide runner rating.
- Tie down straps & all fixings included as standard.

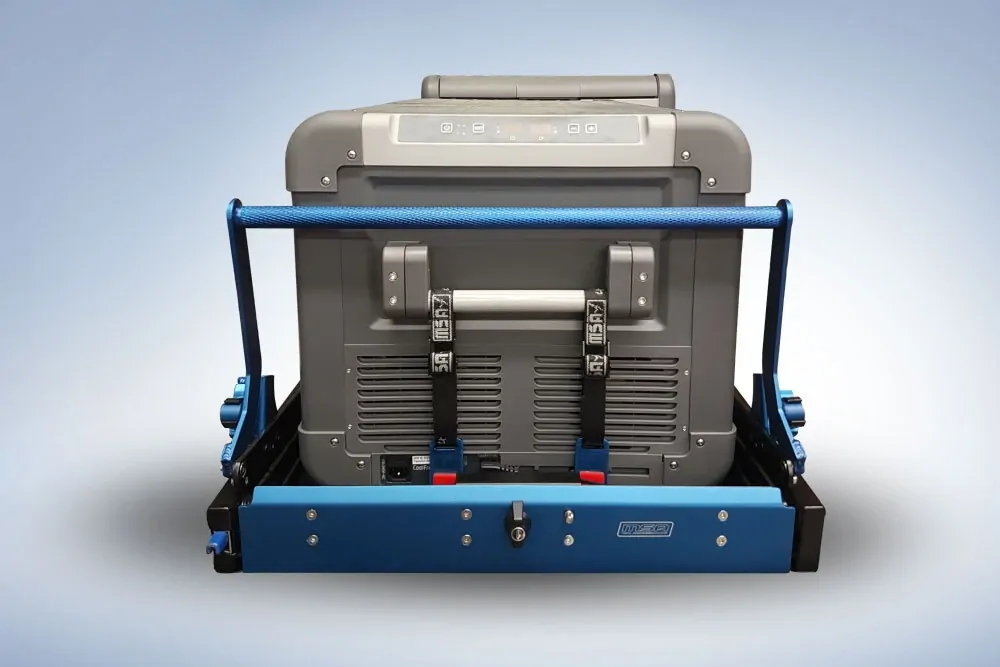

- Stainless steel & blue anodised handle and face plate.
- SL95 Fridge Barrier available to suit for extra fridge protection & increased storage possibilities.
- Pre-drilled holes in the tray provide convenience in accommodating most popular fridges.
Additional information:
- Weight 47 kg
- Freight Dimensions 114 × 77 × 17 cm
- Slide Dimensions (all measurements displayed are in mm)
- Fridge Tray - 955 x 555
- Drop - 300
- Slide Length Closed - 1020 + 20
- Slide Length Open - 2170 + 20
- Overall Width - 670 + 20
- Mount to Base - 35
- Load Limit - 200kg
- Max Set Back - 150
- Gas Strut - 1000N Slow
- Handle Width - 610
Suits These Fridges
COMPANION XERO 75, EVAKOOL FM60 YELLOW, EVAKOOL FM70 YELLOW, EVAKOOL GFM70, EVAKOOL RF110 (WHITE), EVAKOOL RF150 (WHITE), EVAKOOL RF85 (WHITE), GIANT POWER GP80LD, WAECO CFX 100 SINGLE, WAECO CFX 95
MSA Drop Slides Compared
| Specification | DS40 | DS45 | DS50 | DS60 | DS95 |
|---|---|---|---|---|---|
| Weight (kg) | 35 | 37 | 41 | 42 | 47 |
| Freight Dimensions (cm) | 96 × 61 × 20 | 88 × 73 × 17 | 104 × 70 × 20 | 107 × 75 × 20 | 114 × 77 × 17 |
| Fridge Tray (mm) | 710 x 390 | 690 x 480 | 810 x 480 | 865 x 535 | 955 x 555 |
| Drop (mm) | 300 | 300 | 300 | 300 | 300 |
| Closed Length (mm) | 800 + 20 | 790 + 20 | 880 + 20 | 930 + 20 | 1020 + 20 |
| Open Length (mm) | 1670 + 20 | 1610 + 20 | 1860 + 20 | 1965 + 20 | 2170 + 20 |
| Overall Width (mm) | 500 + 20 | 590 + 20 | 590 + 20 | 645 + 20 | 670 + 20 |
| Mount to Base (mm) | 35 | 35 | 35 | 35 | 35 |
| Load Limit (kg) | 200 | 200 | 200 | 200 | 200 |
| Max Set Back (mm) | 115 | 120 | 120 | 130 | 150 |
| Gas Strut (N) | 650N | 800N | 800N | 1000N | 1000N Slow |
| Handle Width (mm) | 450 | 535 | 535 | 590 | 610 |
| Side Version Available | Yes | Yes | Yes | Yes | No |
- 200 kg rating for loaded fridges
- 300 mm drop suits lifted wagons
- 2170 mm open length clears tailgates
- 955 x 555 mm tray for large units
- 1000N slow struts for smooth travel
- Solid gear made to last trips
- Product type: Fridge drop slide
- Weight: 47 kg
- Freight dimensions: 114 x 77 x 17 cm
- Fridge tray size: 955 x 555 mm
- Drop distance: 300 mm
- Closed slide length: 1020 + 20 mm
- Open slide length: 2170 + 20 mm
- Overall width: 670 + 20 mm
- Mount to base height: 35 mm
- Load limit: 200 kg
- Maximum set back: 150 mm
- Gas strut rating: 1000N slow
- Handle width: 610 mm
- Slide runner rating: 200 kg
- Material finishes: stainless steel and blue anodised handle and face plate
- Side version availability: No
- Suits fridge brands/models: Companion Xero 75; Evakool FM60 Yellow; Evakool FM70 Yellow; Evakool GFM70; Evakool RF85, RF110, RF150 (white); Giant Power GP80LD; Waeco CFX 95; Waeco CFX 100 Single
- MSA DS95 Fridge Drop Slide
- Tie-down straps
- All mounting fixings
| SKU | DS95 |
|---|---|
| Barcode # | 9351531000009 |
| Brand | MSA 4X4 Accessories |
| Shipping Weight | 65.0000kg |
| Shipping Width | 0.800m |
| Shipping Height | 0.450m |
| Shipping Length | 1.200m |
| Shipping Cubic | 0.432000000m3 |
Download instructions to help you install, use and get the most out of your product.
