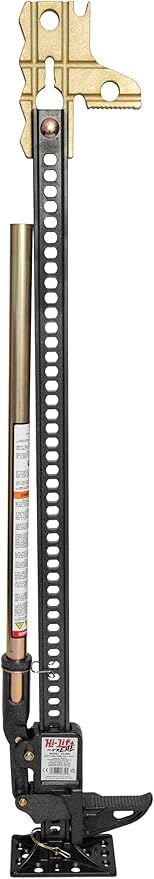

The Hi-Lift X-TREME is for the serious Hi-Lift® user, offering the "top of the line" all-cast version (48" or 60" sizes) with a special top winch-clamp-spreader attachment that provides the ultimate in multi-use functionality.
The X-TREME Top Clamp replaces the top clamp-clevis of the standard Hi-Lift models and provides the ability to winch, clamp, and spread up to 5,000 lbs.
Features
- All-Cast Construction
- 7000lb (3175.14kg) Tested Capacity
- Available in 48", & 60" Heights. (122, & 152cm)
- Lifts, Winches, Clamps, & More
- A must-have for the serious Hi-Lift user!
- Tested and certified to meet applicable requirements of ASME B30.1-2015
|
XT-485 |
|
|
Size |
48” (122 cm) |
|
Min. Lift Height |
4.5" (11.43 cm) |
|
Max. Lift Height |
38.63" (98.12 cm) |
|
Overall Height |
50.75" (128.91 cm) |
|
Width |
5" (12.7 cm) |
|
Depth |
9.63" (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
|
RL on upper 12" (30.5cm) |
- |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
|
TL on upper 12" (30.5cm) |
- |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
5,000 lbs (2,268 kg) |
|
Weight |
28.16 lbs (12.77 kg) |
| SKU | XT-485 |
|---|---|
| Barcode # | OEBC716980 |
| Brand | Hi-Lift |
| Shipping Weight | 14.5000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.250m |
| Shipping Length | 1.550m |
| Shipping Cubic | 0.050375000m3 |
