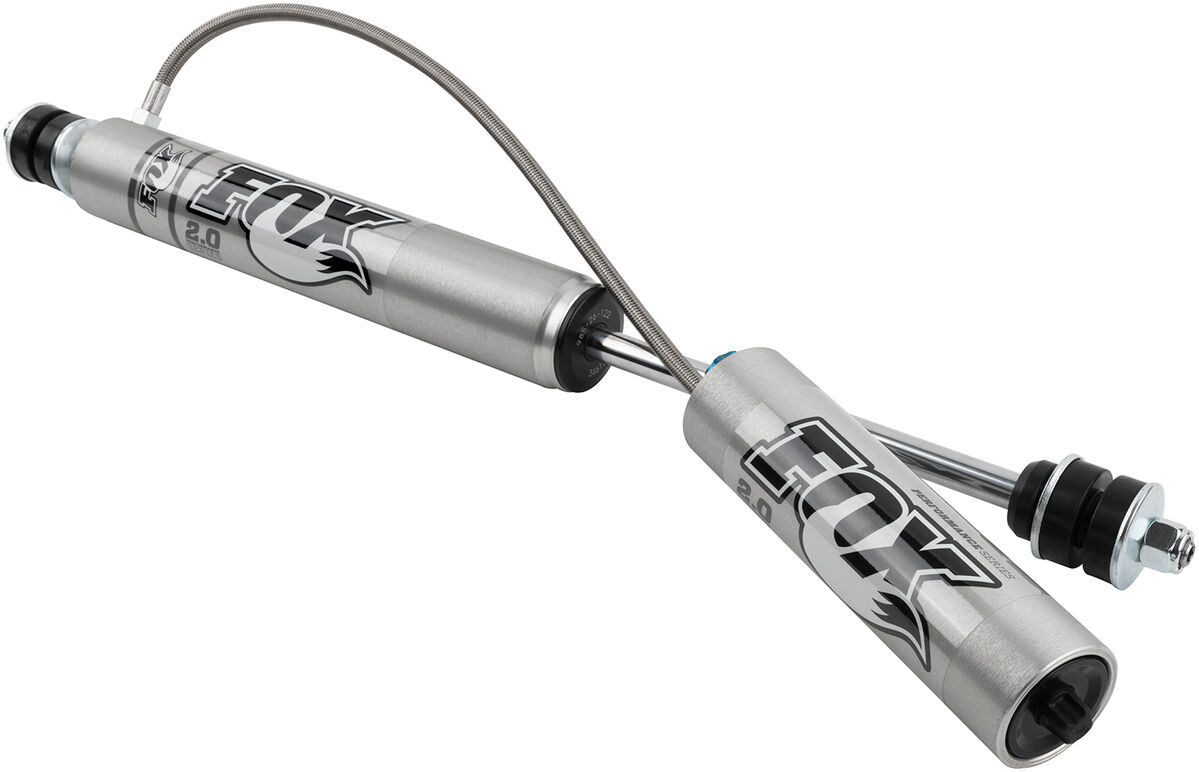

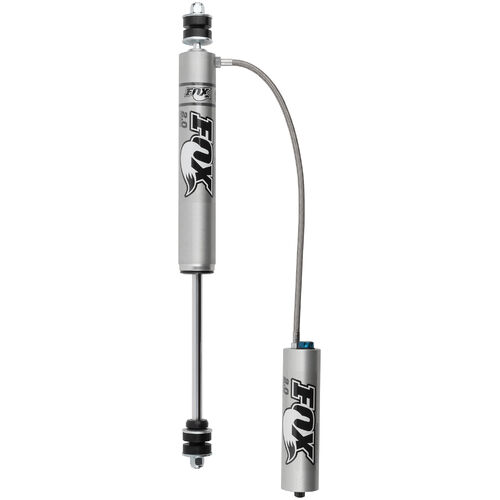

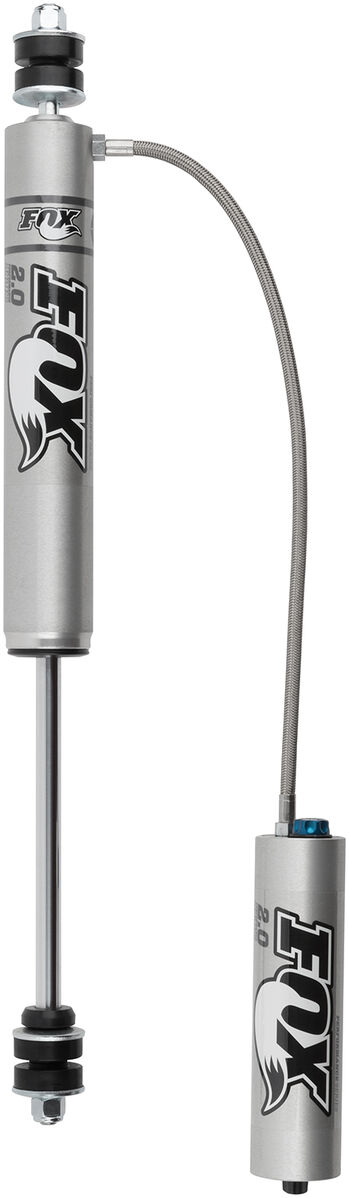

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

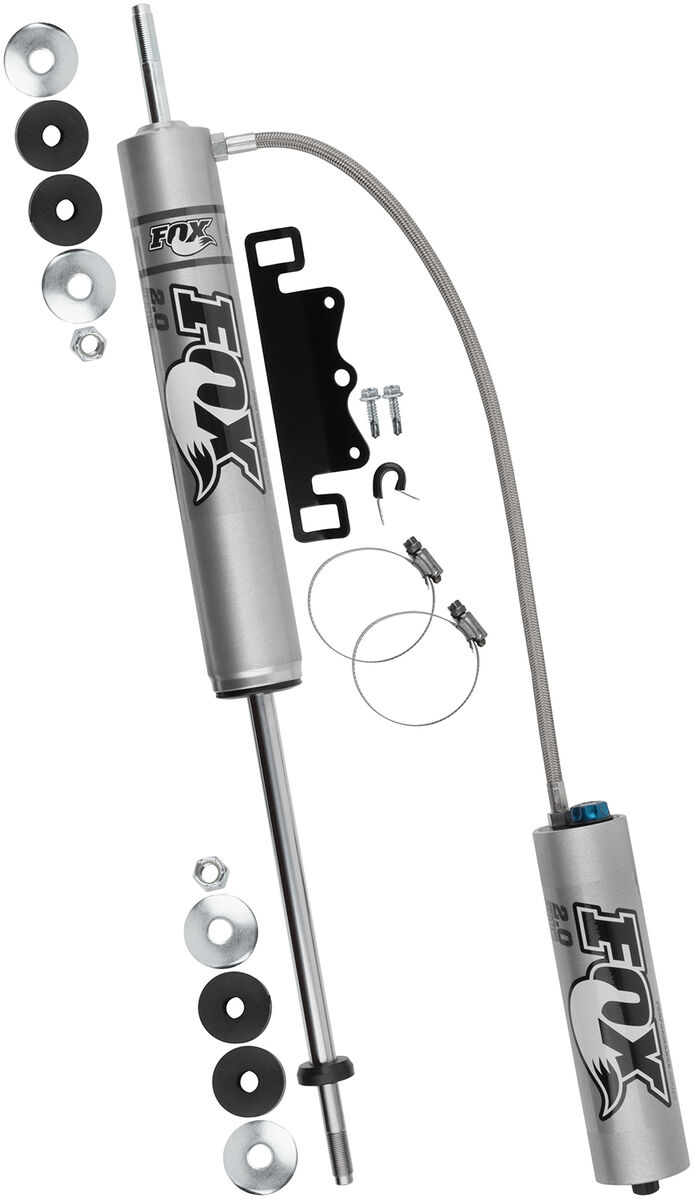

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

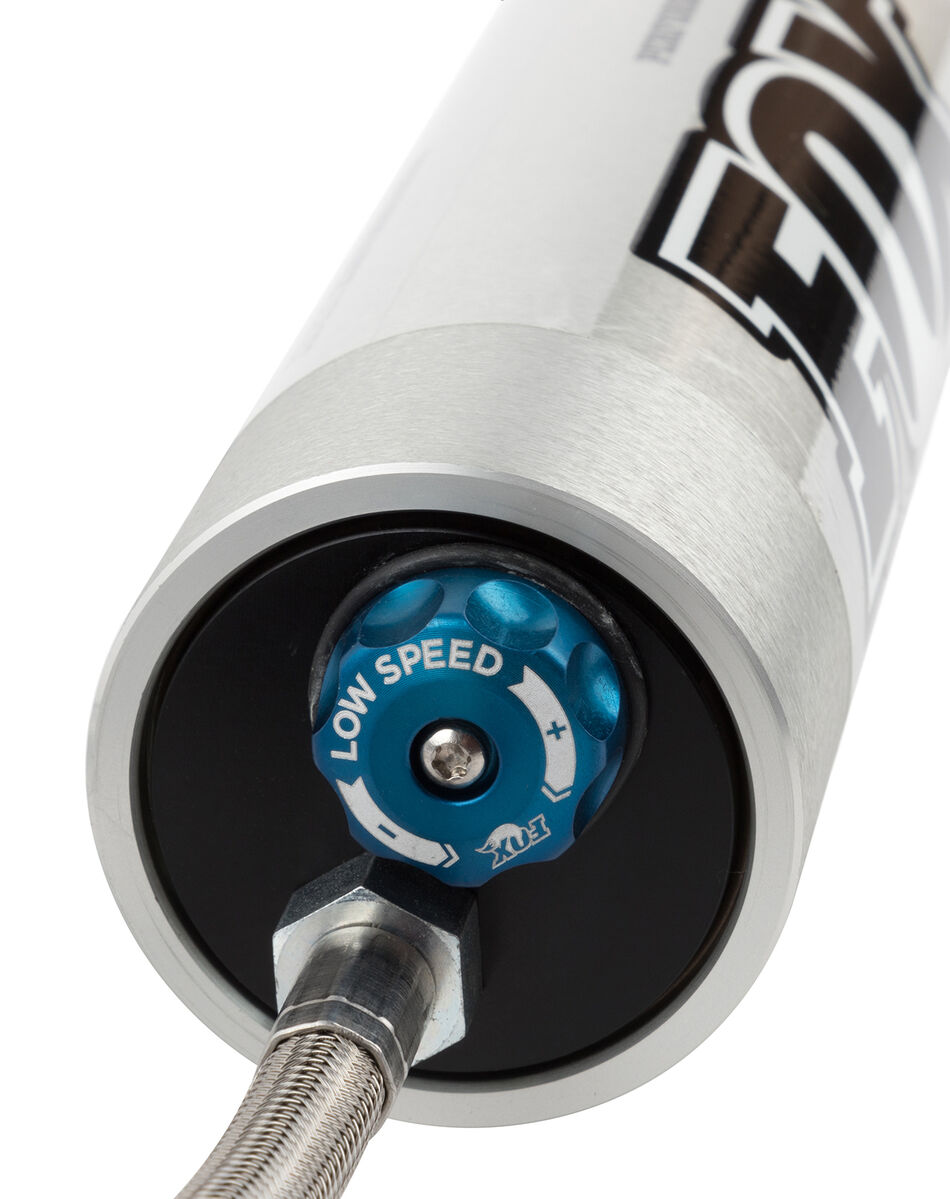

| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Fine Tune The Ride With 8 Clicks Of Adjustment |
| SERIES | Performance |
| TRAVEL | 8.59 |
| FRONT LIFT HEIGHT | 0-1 |
| BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 21.49 |
| COMPRESSED LENGTH | 12.9 |
| TOP MOUNT | SM3 |
| BOTTOM MOUNT | SM3 |
| FITMENT NOTES | Aftermarket Shock Tower Required |
| SKU | 985-26-122 |
|---|---|
| Barcode # | OEBC698589 |
| Brand | Fox |
| Shipping Weight | 5.5000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.130m |
| Shipping Length | 0.750m |
