SKU: 044577_450-00742

ARK XO Series Jockey Wheel 750

Rated 5/5 based on 3 reviews.

More info.

Make 4 payments of $69.50 over 8 weeks and get it now!

In Stock

Calculate Shipping

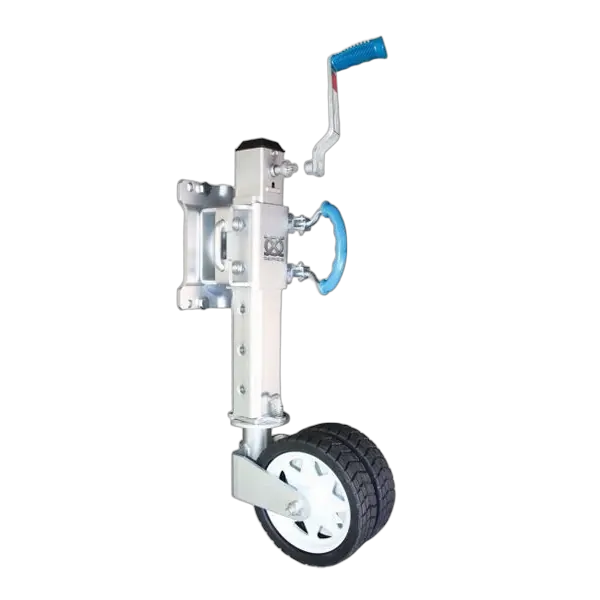

Ark’s new Extreme Off road Series (XO) Jockey Wheel is probably the toughest, most advanced Jockey Wheel in Australia today. But not only is it tough, it’s also versatile – with multiple height options, a highly maneuverable trailing yoke design and 5 different yoke locking positions.


Magnetic, removable, side-winding handle

• Easier raising & lowering of trailers/caravans - away from stone guards, toolboxes or jerry can holders

• Magnetic, removable handle ensures safe stowage and prevents damage in offroad situations

Heavy duty body with 750kg rating

• Increases load carrying capacity and eliminates the likelihood of “bend” under weight

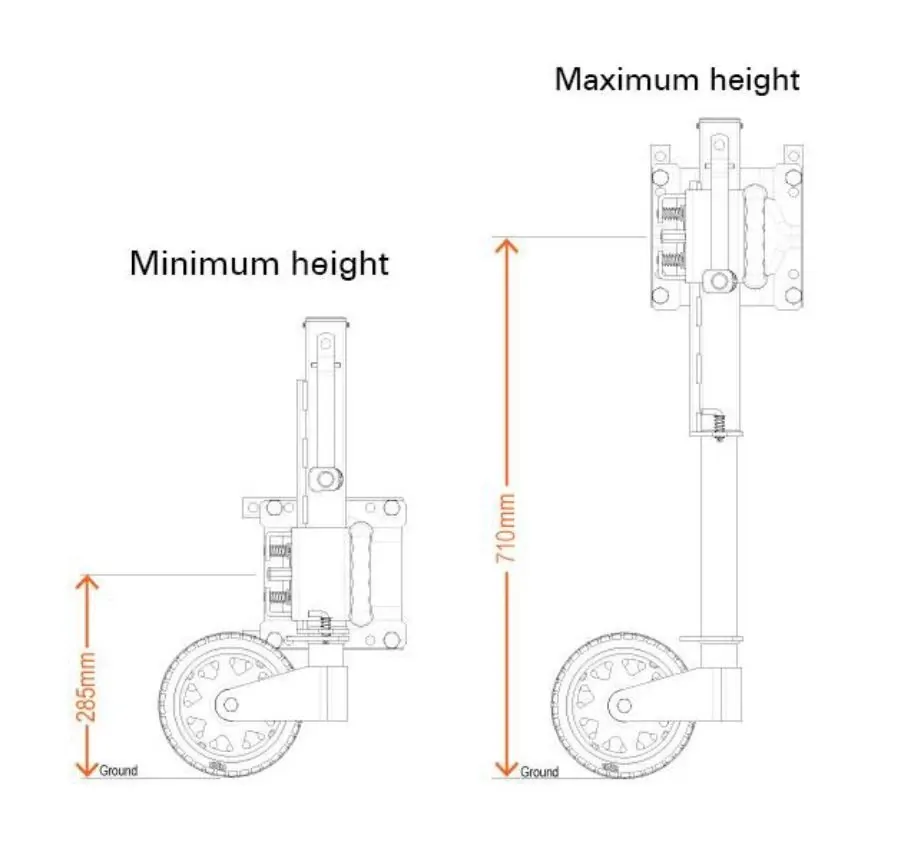

4 x adjustable height positions

• 250mm height adjustability at each of the 4 positions, whilst maintaining a central swivel point for extra strength

Heavy duty swivel clamp

• 4 bolt pivot point ensures no more bowing under weight

• Suitable for 75mm, 100mm, 130mm and 150mm drawbars

• Comes with mounting hardware - no more welding onto drawbars

Easy-pivot trailing yoke design

• Wheel pivots easily, even under heavy load or on soft ground

Dual wheel with sealed bearings & offroad tread

• Increases offroad grip and spreads the load

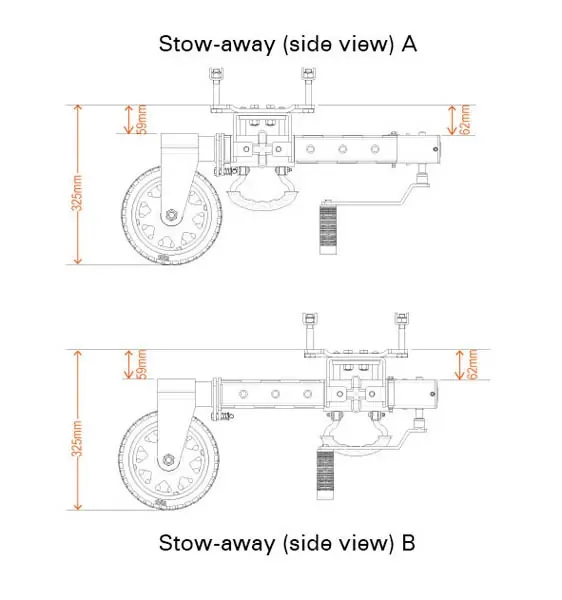

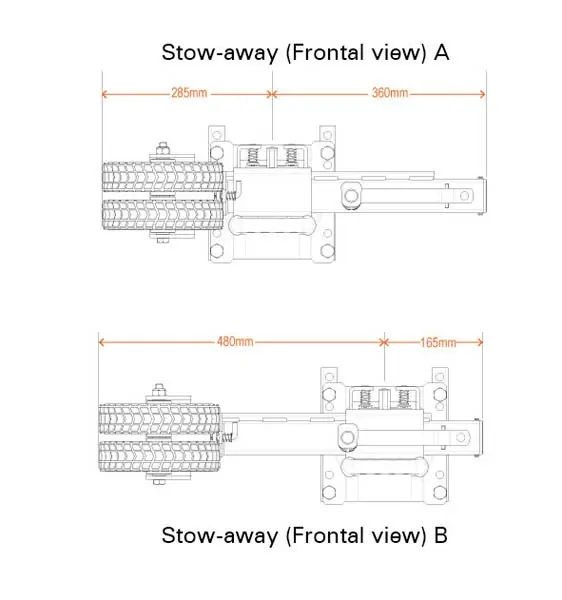

Variable yoke lock

• Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc…

Rust resistant finish

• Salt spray tested for 600 hours



SKU 044577_450-00742
Brand Ark
Shipping Weight 19.9000kg
Shipping Width 0.410m
Shipping Height 0.190m
Shipping Length 0.700m
Shipping Cubic 0.054530000m3


Ark xo 750

By: on 9 April 2019
Very happy with the product as was easy to install much better set up for the camper I have has made a massive difference in being able to get more hight with the adjustable jockey wheel compared to the standard one

XO jockey wheel

By: on 1 February 2019
Cheers to the team at Outback equipment. . ive been looking for a heavy duty jockey wheel and now iv got 1... after watching the video on the xo jockey wheel .. i was impressed and hoped there was no trickery. .. i installed it in 10 minutes. this wheel moves my camper alot easier than the 2 broken ones before this... thanks guys

ARC XO jockey wheel 750

By: on 4 October 2018
One word - brilliant! Life is so much easier with this jockey wheel, suggest the first thing to change on any off road camper trailer.
