Victron solar panels:
Victron solar panels are made using high quality Polycrystalline & Monocrystalline cells. Victron provide a full range of solar panel modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.
Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to over size your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.
*Note the Victron 12V range of solar panels are suitable for Charging 12V battery systems when using a PWM or MPPT Controller. The Victron range of SmartSolar regulators would be best suited based on price and quality.
See more info about the SmartSolar Regulator - Click here
Panel dimensions: 545 x 668 x 25
Features:
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with PV-ST01 connectors.
* Images are for display purposes only
|
Specifications
|
|
|
Model
|
SPM040551200
|
|
Cell type
|
Monocrystalline
|
|
Number of cells in series
|
36
|
|
Nominal power (Watts)
|
55
|
|
Open Circuit Voltage (Volts)
|
22.9
|
|
Maximum Power Voltage (Volts)
|
18.8
|
|
Short Circuit Current (Amps)
|
3.22
|
|
Maximum Power Current (Amps)
|
2.94
|
|
Power (Max.)
|
50W
|
|
Temp Range
|
-40 to +85°C
|
|
Length of cable / connector
|
No cable
|
|
Power Tolerance
|
±3%
|
|
Maximum system voltage
|
1000V
|
|
Size (LxWxH)
|
545 x 668 x 25mm
|
|
Weight
|
4kg
|
|
Warranty
-Product warranty
|
|
Victron 12V 55W Mono spec sheet-
Victron 12V 55W Mono manual-
- 55W panel to top up 12V batteries
- Fits tight spots at 545 x 668mm
- Monocrystalline cells made to last
- Tempered glass handles real-world knocks
- Backed by 5 year product warranty
- Gear that suits long term touring setups
- Brand: Victron
- Model: SPM040551200
- Panel type: Monocrystalline fixed solar panel
- Nominal system voltage: 12V
- Nominal power: 55W
- Maximum power rating: 50W
- Open circuit voltage: 22.9V
- Maximum power voltage: 18.8V
- Short circuit current: 3.22A
- Maximum power current: 2.94A
- Number of cells in series: 36
- Power tolerance: ±3%
- Maximum system voltage: 1000V
- Operating temperature range: -40°C to +85°C
- Dimensions (L x W x H): 545 x 668 x 25mm
- Weight: 4kg
- Cell technology: High quality monocrystalline cells
- Junction box: Sealed waterproof multifunctional design
- Bypass diodes: High performance diodes to minimise power loss from shade
- Front glass: High-transmission tempered glass for stiffness and impact resistance
- Frame: Sturdy anodized aluminium frame
- Encapsulation: Advanced EVA encapsulation with triple-layer back sheet
- Connection type: Pre wired quick-connect system with PV-ST01 connectors (no cable supplied)
- Electrical performance warranty: 10 years at 90% output and 25 years at 80% output
- Product warranty: 5 years on materials and workmanship
- Suitable controllers: PWM or MPPT including Victron SmartSolar regulators
- Application: Charging 12V deep cycle battery systems in vehicles, boats, motor homes, caravans and marine setups
- 1 x Victron 12V 55W monocrystalline fixed solar panel
- Integrated sealed waterproof multifunctional junction box
- Pre-wired quick-connect system with PV-ST01 connectors (no cable length supplied)
| SKU | SPM040551200 |
|---|---|
| Barcode # | 8719076040330 |
| Brand | Victron |
| Shipping Weight | 4.5000kg |

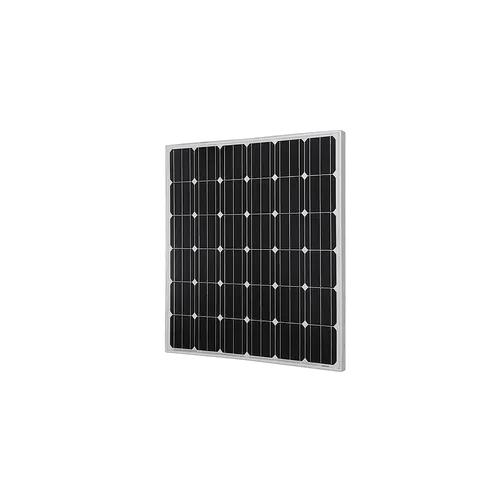

12V 55W Mono Solar Panel
